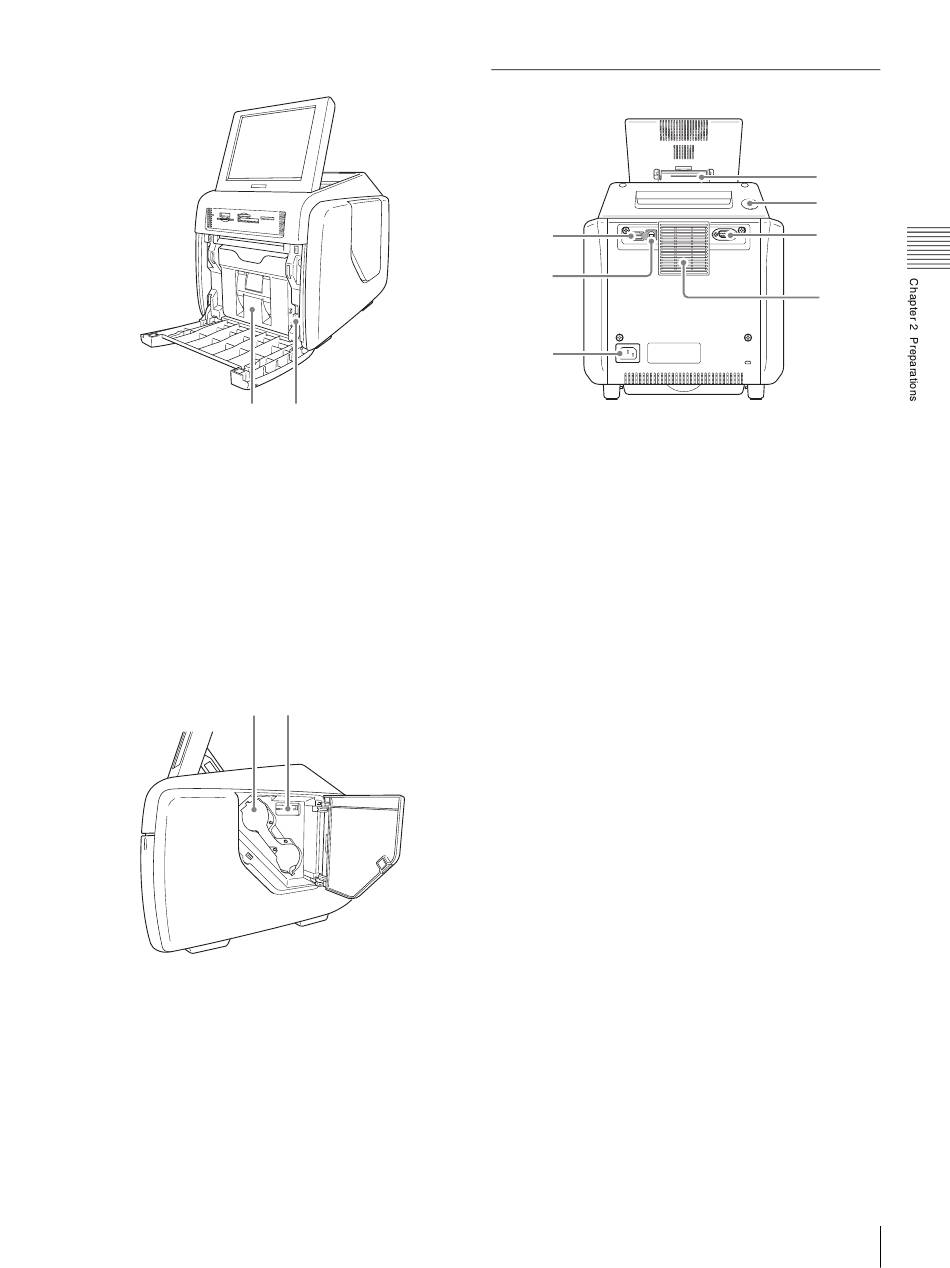

Rear; Air Vent - Sony PLS PIX1L Mode D'emploi

Front door open
A
A Paper holder (page 11)
The paper roll is inserted here.
The white areas between printouts are cut off and
collected in the top portion of the paper holder.
B Paper holder release button (page 11)
Press this button to remove the paper holder.
l Side door (page 14)
Open this door for replacing the ribbon cartridge and
inserting the expansion CompactFlash card.
Side door open
A B
A Ribbon cartridge access opening (page 14)
Mount the ribbon cartridge here.
B Expansion CompactFlash card slot (page 17)
When using border print, promotional images display,
text input, or print spool, insert the expansion
CompactFlash card here.
B

Rear

1
2
3
a USB port (host)
Allows connection of a USB device.
You can connect a commercially available card reader or
USB flash memory device to this port and use it to read
1)
data.
To use Bluetooth communication, insert a Bluetooth USB
adaptor here.
1) Correct operation with every card reader and USB flash
memory device is not guaranteed.
Operation is not guaranteed when connected by a USB
hub.
PictBridge is not supported.
b USB port (device) (page 51)
Use a commercially available USB cable to connect the
1)
unit to a computer.
1) Operation is not guaranteed when connected by a USB
hub.
c ~ AC IN (Power Source) Connector (page 10)
Connect the supplied power cord here.
d Display stand
Use this stand to adjust the angle of the display.
e On/Standby button
Press this button to turn on power to the unit. Press it again
to enter the standby mode.
To restart the unit from standby mode, wait at least 5
seconds in standby mode, and then press the On/Standby
button.
f RS-232C interface
Serves for future expansion. Currently not used.
g Air vent
Features a built-in filter for the thermal head cooling fan.
