10. Technical Data

The Valencia B.12, certified in compliance with DIN-EN 13240 and Art. 15 a B-VG
(Austria), can only be operated when the fire box is closed; more than one device
can be connected to the chimney.
The following data applies to the chimney characteristics in accordance with
EN 13384-1 /-2:
Combustion Values*
Nominal Thermal Output
Room heating output
Exhaust gas temperature
Waste Gas Outlet Temp.
Waste Gas Mass Flow Rate
Min. Supply Pressure at Nominal Thermal Output
Efficiency
CO content
Particulate
OGC
NO
X
Min. required combustion air volume
Depending on the insulation of the building, the nominal thermal output of 8 kW indi-
cated on 30 - 115 m² (subject to change)
Dimensions: Height
Stove 200 cm - variable
Fire box 35 cm
Ceramic Soapstone
Weight: 274 kg 310 kg
Wood
8 kW
8,5 kW
273 ˚C
295 ˚C
7,5 g/s
12 Pa
80 %
709 mg/Nm³
37 mg/Nm³
39 mg/Nm³
109 mg/Nm³
34 m³/h
Width Depth
85,5 cm 53 cm
40 cm 29 cm
Sandstone Structure element
292 kg 18,5 kg
Flue pipe diameter
Pipe diameter of HASE ventilation system**

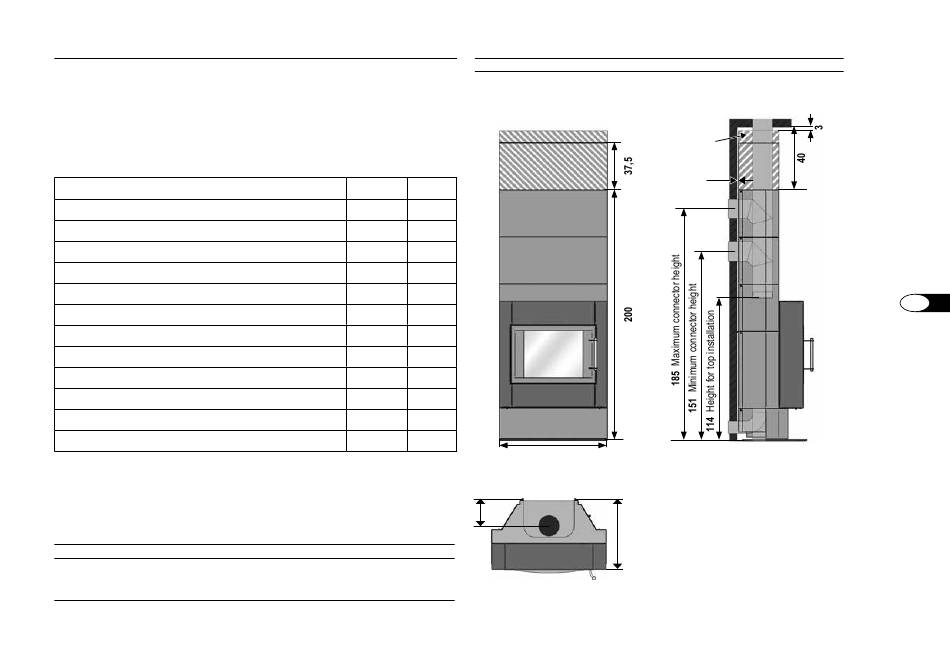

Front view
85,5
Top view
20
53
* Test bench performance and values at 13% O
** For separate air supply in low-energy houses and insufficient combustion air supply in the room where
the stove is installed.
15 cm
10 cm
Side view
Joint elements
from 5 cm to
48 cm in 0.5
cm steps
20/1
Dimensions in cm
