Caster/Caster Foot Assembly

NOTE: Remove Power Head Assembly
from Drum prior to Caster Foot and
Caster Assembly.
1. Turn the Dust Drum upside down on
the floor.
2. Insert the Caster Feet into the bottom
of Drum, as shown (4 places).
3. Push on the Caster Foot until the Foot
is flush with bottom of the Dust Drum.
4. Insert the Caster Stem into the Socket
of the Caster Foot, as shown (4 places).
5. Push on the Caster until the Ball on
the Caster Stem is inserted all the way
into the Socket. You will hear the Ball
snap into the Socket and the Caster
will swivel easily when positioning is
correct.
6. Turn the Drum upright.
SP6975-3 16 GALLON.indb 5 SP6975-3 16 GALLON.indb 5

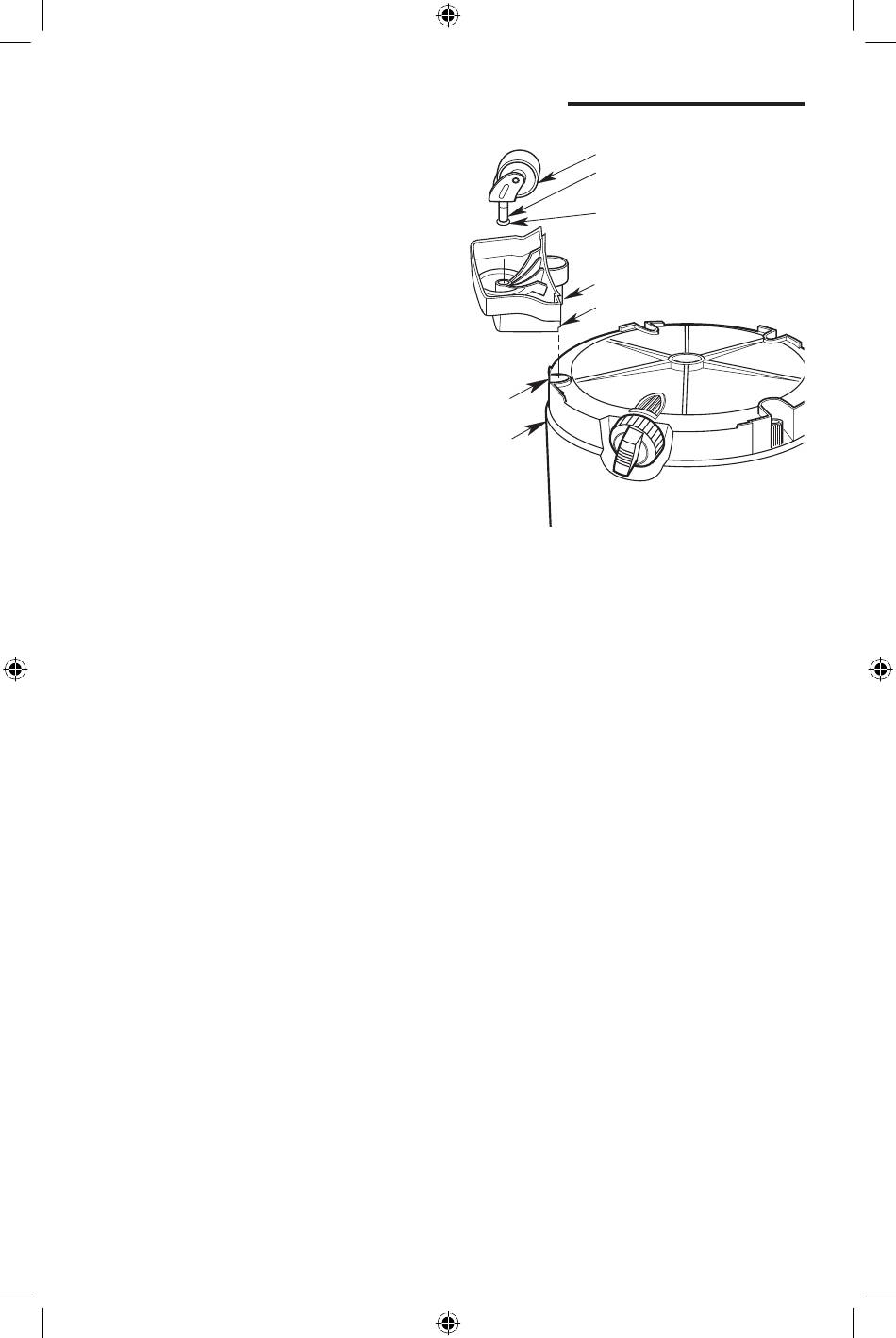

Caster
Caster Stem
Caster Ball
Pin
Caster Foot
Hole
Dust
Drum
5
