WinLog97 PC program installation
Install the WinLog97 program onto the PC by inserting the accompanying CD into your PC and
running the SetUp program. Simply follow the on-screen instructions. When finished, a new Windows
Program Group labeled Orbisphere is created containing the software and help files.
Connections
Batteries
The instrument is designed to work on battery power.
If battery power should drop, a LO BAT warning appears in the instrument LCD's top-left corner, and
they should be replaced.
External power (optional)
The instrument is usually powered by the batteries supplied. You can, however, power it from an
external +5VDC source (as supplied by an electronics supply store). Connect the 2-wire output from
this source, using a model 28083 male 6-pin LEMO plug, to the RS-232 connector on the right side
of the instrument.
Connection
Instrument - PC connection
An RS-232 cable is supplied with the instrument, with a 6-pin LEMO plug on one end and a 9-pin D-
Type plug on the other.
Connection
6 English

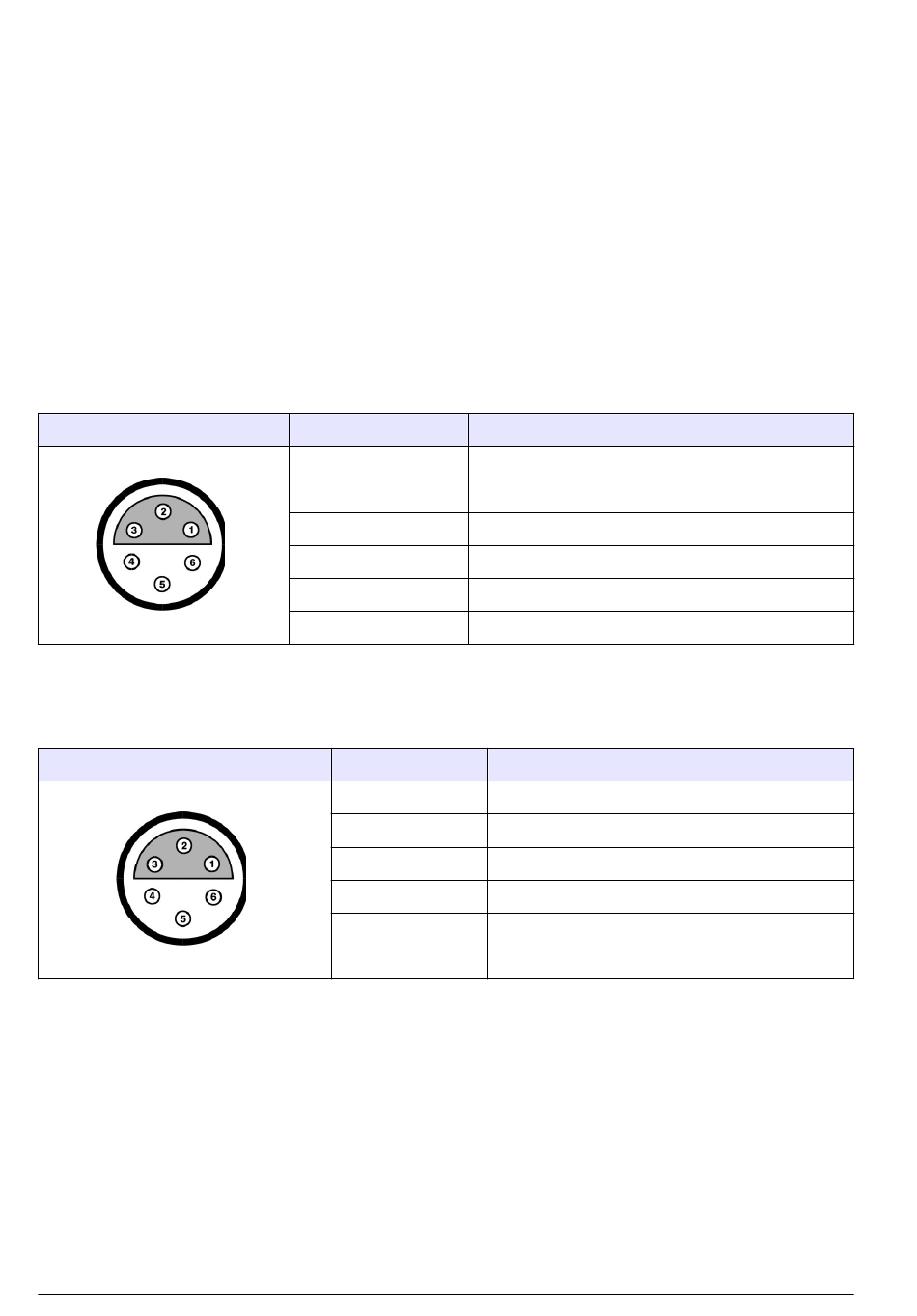

LEMO-6 Pin
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
LEMO-6 Pin
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Description
Not used
Not used
Not used
Not used
External +5VDC voltage input
Ground
Description
Transmitted data (TXD)
Received data (RXD)
Not used
Not used
Not used
Ground
