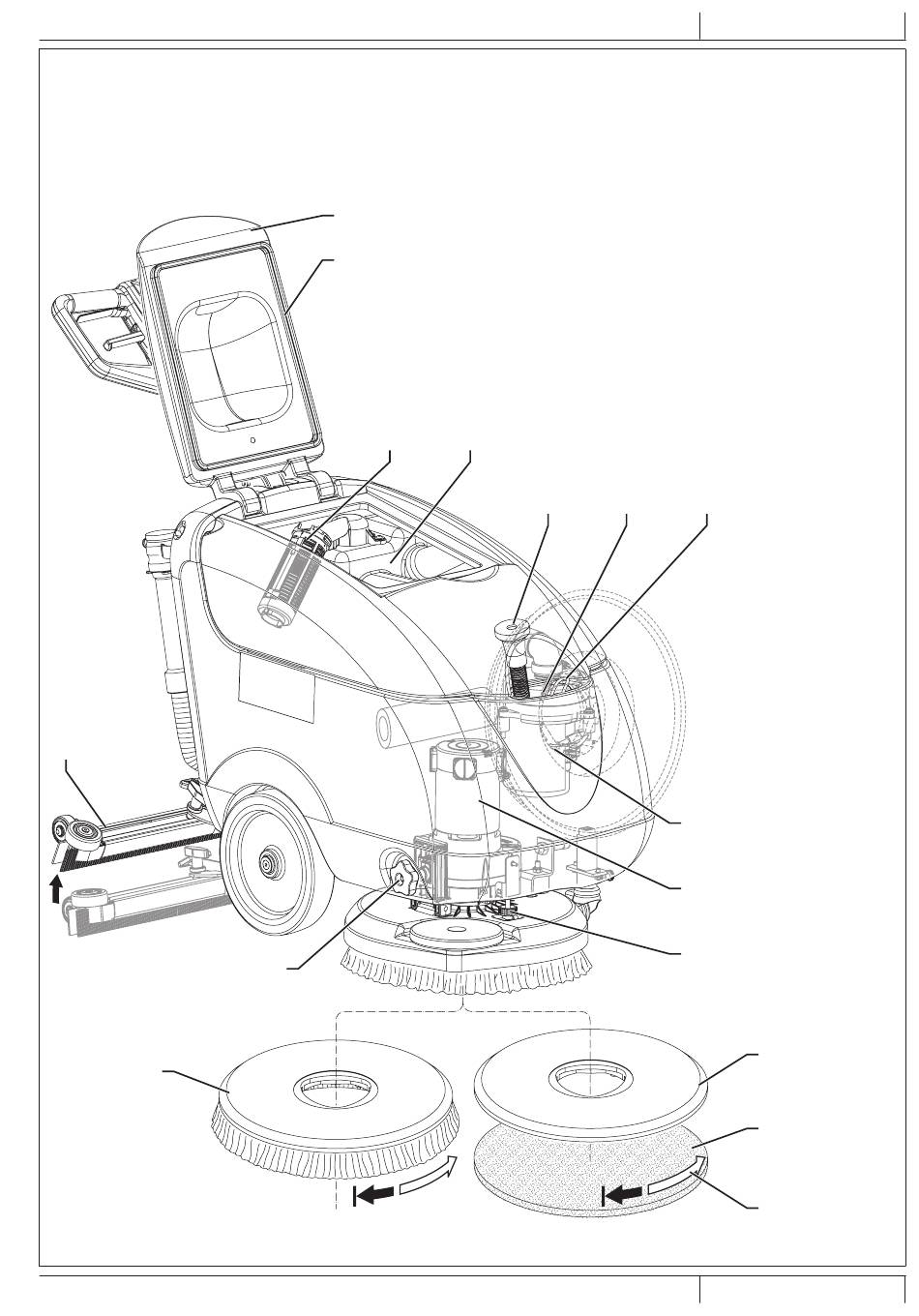

MACHINE STRUCTURE (Continues)
31. Recovery tank cover (open)
32. Recovery tank cover gasket
33. Front brush/pad-holder support
34. Recovery tank compartment
46
42
31
32
36
41
USER MANUAL
35. Solution tank filler neck
36. Vacuum grid with automatic shut-off float
37. Solution removable filler hose
38. Vacuum system motor
39. Brush/pad-holder motor
40. Machine straight forward movement adjusting handwheel
41. Machine forward speed adjusting handwheel
42. Brush
43. Pad-holder
44. Pad
45. Brush rotation direction
46. Lifted squeegee
