STEP 6 - MOUNT THE OVEN
1 Slide the oven completely into the cabinet until the back surface
of the front frame touches the front wall of the cabinet. Center
the oven within the cabinet cutout.
NOTE: Remove the tape on the front of the microwave drawer
prior to pushing the whole unit fully into the cutout. Push against
seal area of the oven front frame when pushing the oven into the
cabinet. Do not push against the outside edges.

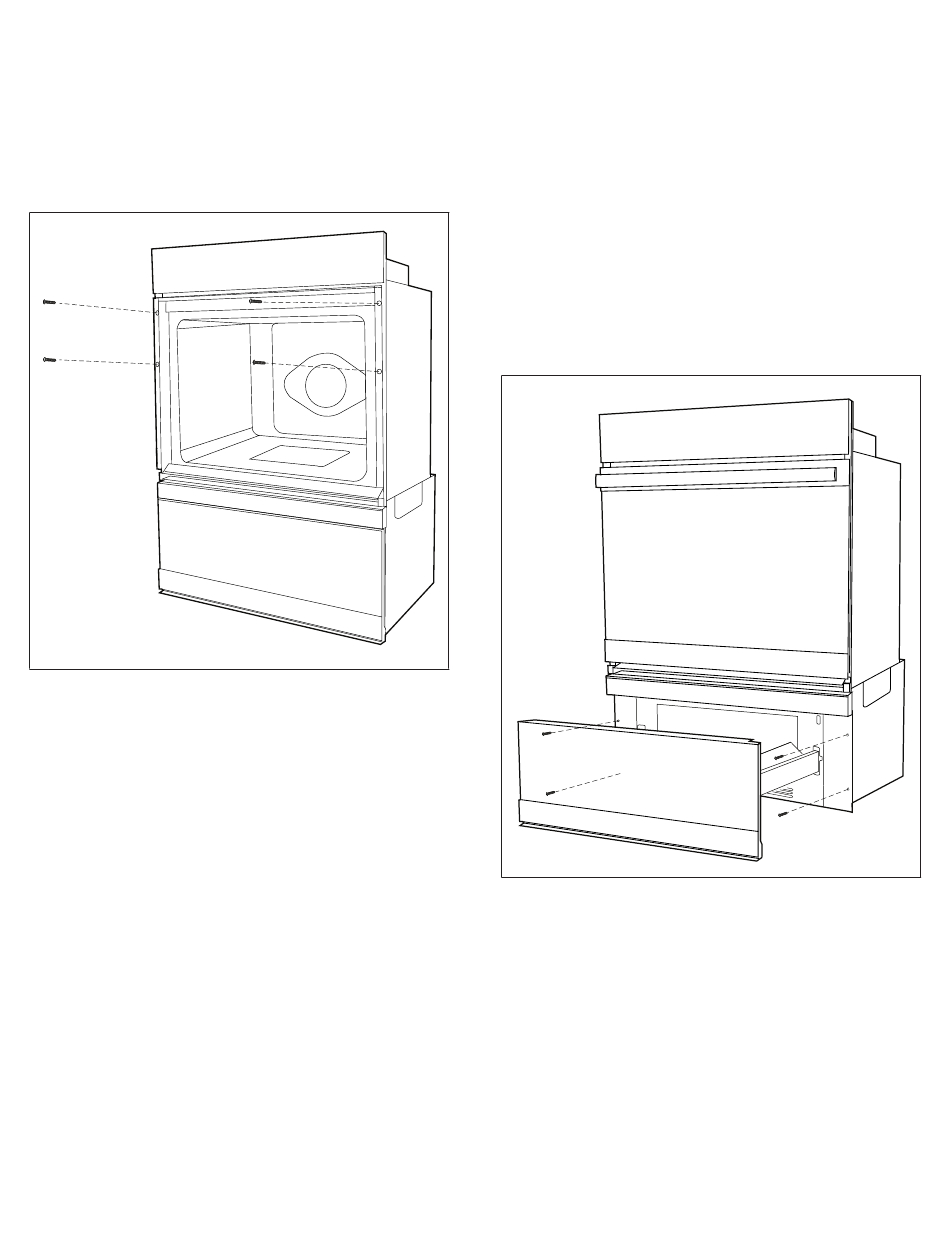

2 There are four holes, two on each side of the front frame that
surrounds the oven cavity. Drill
the holes, and into the front wall of the cabinet.
3 Insert the # 8– 7 / " screws (provided) through the pilot holes to
8
securely fasten the oven to the cabinet. Do not overtighten screws.
4 Replace the oven racks.
NOTE: Ensure all plastic and foam packaging are removed from
the oven racks before reinserting them.
5 Reconnect power to the oven.
1 / " (3.18 mm) pilot holes through
8
STEP 7 - REPLACE THE DOOR
IMPORTANT: The oven door is heavy and fragile, and the door
front is glass. To avoid oven door glass breakage, use both hands,
and grasp only the sides of the oven door to remove. Do NOT lift
the door by the handle.
1 Verify that the door hinge latches are forward, and then insert the
oven door hinges into the openings.
2 Lower the oven door to engage the hinges.
3 Press the hinge latches down to lock.
STEP 8 - MOUNT THE MICROWAVE
DRAWER
1 There are four holes, two on each side of the drawer. Drill
(3.18mm) pilot holes through the holes and into the front wall of
the cabinet.
2 Insert the screws provided through the pilot holes to securely
fasten the drawer to the cabinet. Do not over tighten screws.
9
1 / "
8
