Installation

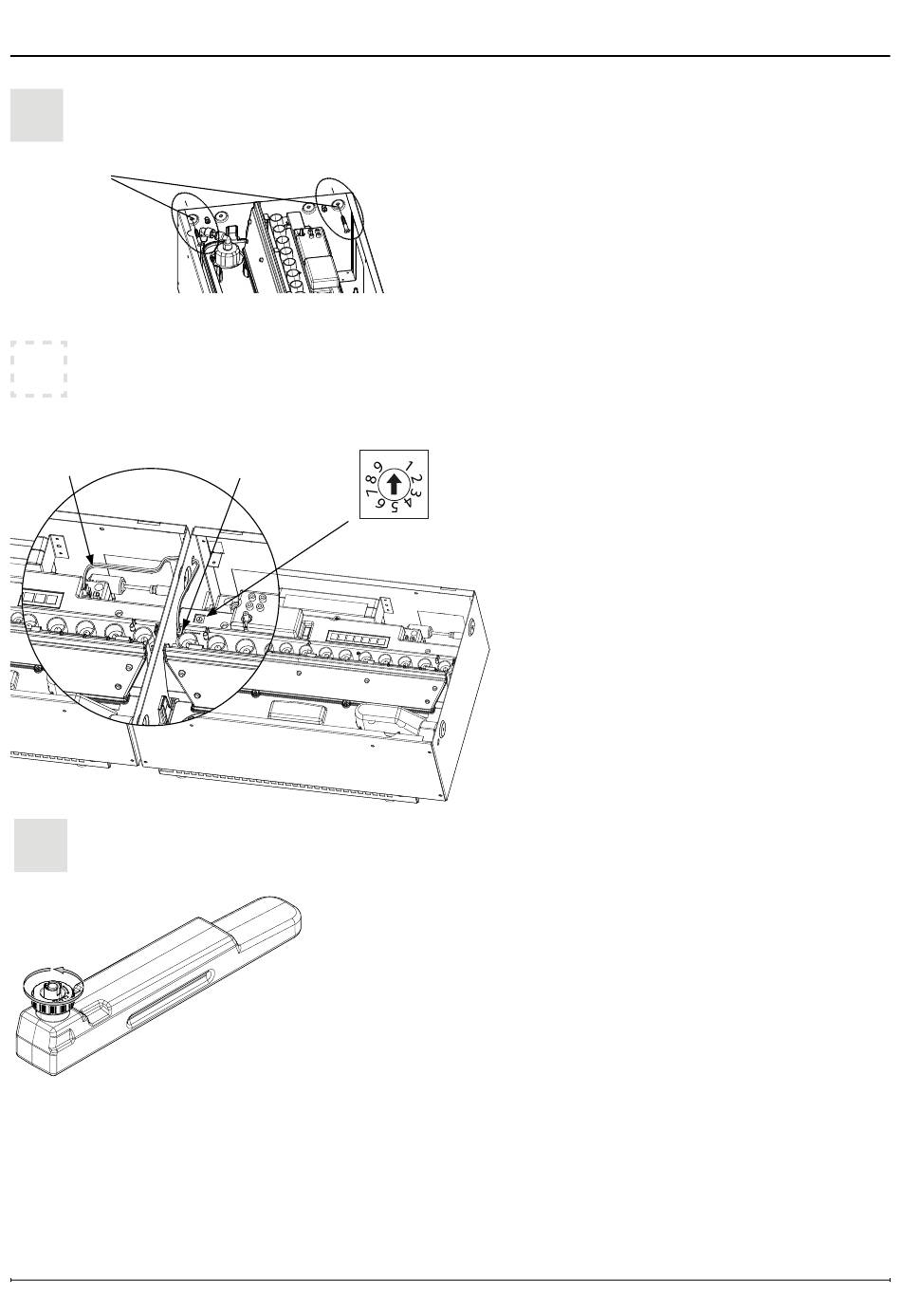

Secure the cassette(s) to framing

Holes for

securing to

framing

Optional step: Connect linking wire

(ONLY for multi-unit installation)

Linking wire

Add water

Connection to

secondary unit

Rotary

identifier

Secure the unit to the permanent framing

on either end.

1. Run the linking wire through the hole in the

2. Plug the link wire into the left-hand

3. Repeat with each additional cassette.

4. Adjust the rotary identifier on each

For multi-unit installation, disconnect the

tethered Bluetooth receiver from each

secondary cassette.

Refill Containers - remove the pre-installed plumbing cap(s)

if present, then install the refill containers. During initial

installation, the refill container should be refilled after the

reservoir has filled to ensure the maximum operating time.

Each refill container holds 42 oz. (1.25L).

Hard Plumbed - Begin opening each of the valves, ensuring

that no leaks are present. Prime each of the water reservoirs

with 32 oz (1L) of water. The water level should fall between

the 'High' and 'Low' water indicators (see Optimyst

components, page 8)

metalwork and into the housing of the next

cassette in the installation.

connector on the LED strip on the

secondary unit.

secondary unit to reflect its position in the

sequence. Set the primary unit to 0, the

next unit to 1, and continue incrementally.

Up to 10 units can be linked.
