Installation
4

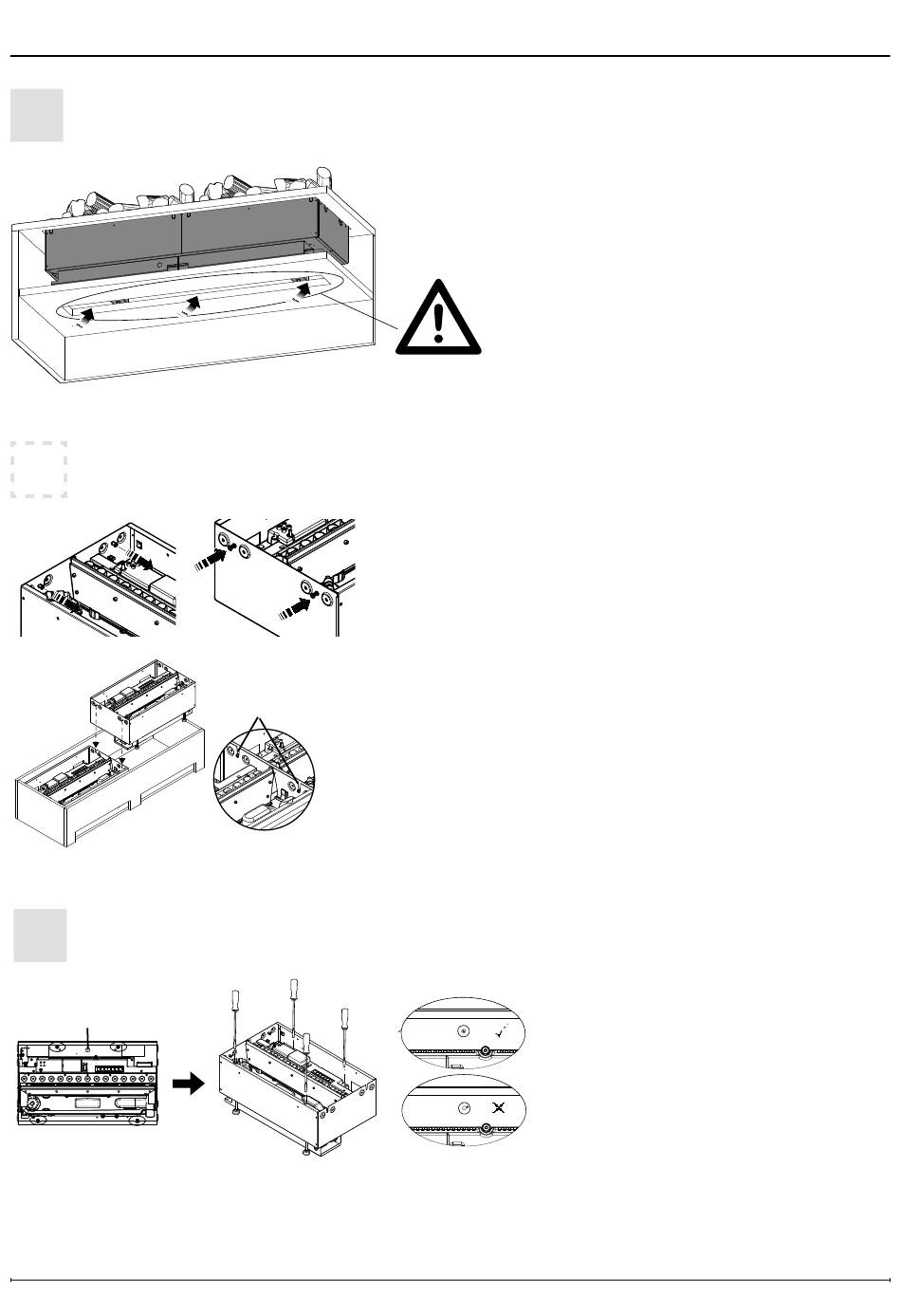

Place the cassette in the enclosure
Optional step: join the cassettes
5
(ONLY for multi-unit installation)
6
Level the cassette
Built-in level
Place screws
in slots and
tighten
Install the unit into the enclosure ensuring that
the unit is resting on two framing sills, one at
the front and one at the back or a level surface.
Ensure an air opening is maintained.
1. On the second cassette, unscrew the joining
screws and screw them loosely into the
opposite side of the metalwork.
2. Place the second cassette beside the first
product, ensuring the protruding screws align
into the slots of the first cassette.
3. Ensure the cassettes are level.
4. Tighten the screws of the second cassette so
that it joins tightly with the first cassette.
5. Repeat these steps for each additional cassette.
Level the housing, adjusting the leveling
feet as necessary using a flat screwdriver.
For multi-unit installations, ensure the
height of the units are even.
When level, the bubble in the built-in level
will be centered.
