Installation
1

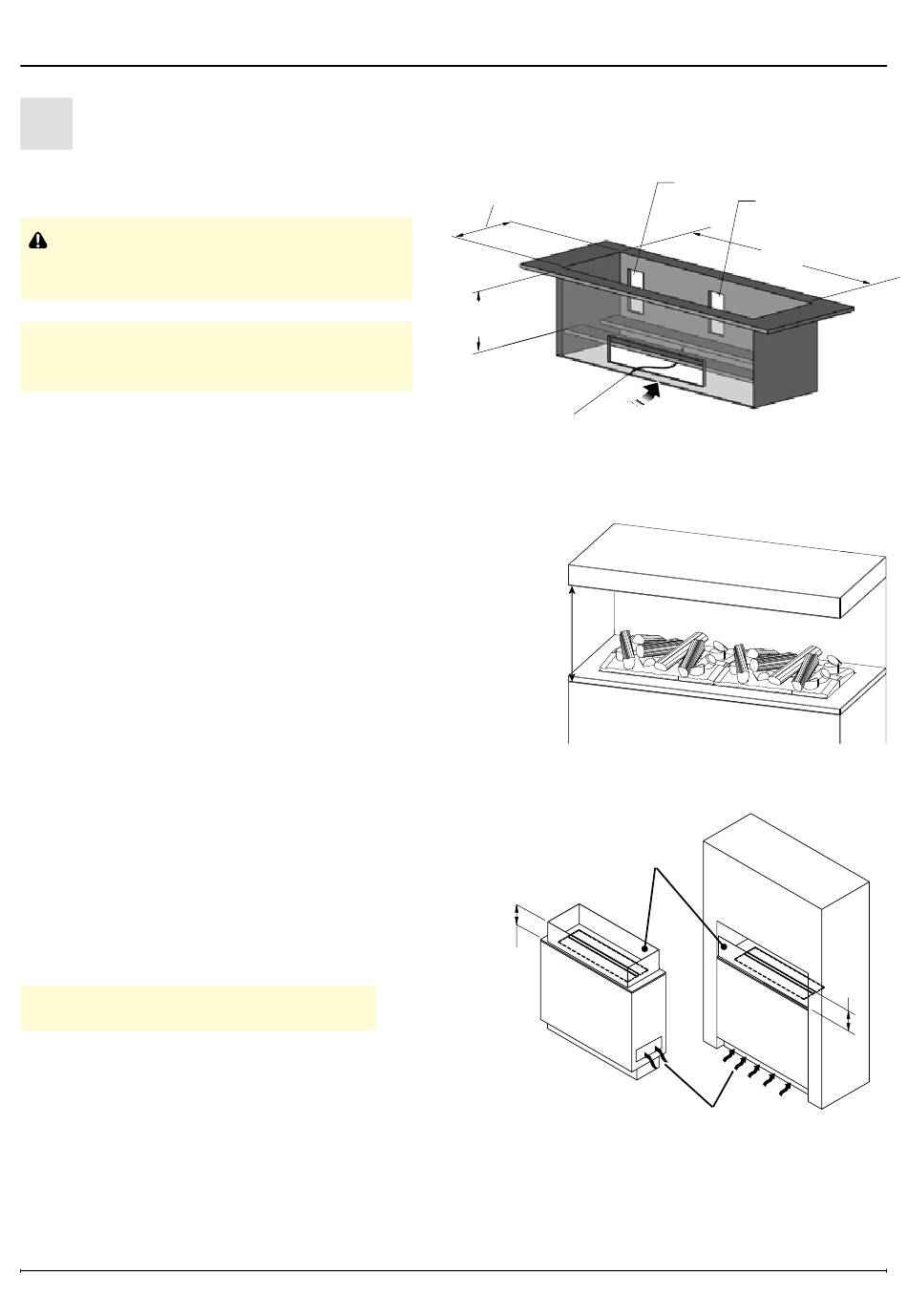

Build enclosure
Create an enclosure with the minimum dimensions
shown.
CAUTION: Ensure there is an opening in
the enclosure to allow air flow to reach the
underside of the cassette.
!
NOTE: The media plate (supplied) and log
set (sold separately) require different opening
depths.
To determine the width for multi-unit installations, add
the lengths of each cassette and add at least 1/2" to
total length for maneuverability.
For optimal performance, a clearance of 18" (457 mm) between
the bottom of the media plate or log set and any surface above
is recommended. A minimum clearance of 16" (405 mm) must be
maintained.
Ensure that the installation will not be susceptible to
drafts from vents, ceiling fans and other air currents, as
they will affect the flame effect.
To reduce the impact of air currents on the flame, a 10"
high transparent barrier (glass, acrylic, etc.) can be used.
!
NOTE: Do not fully enclose the flame.
10
10 in.
(254 mm)
Media Plate: 12¼ in (311mm)
Log Set: 14¼ in (362mm)
Adjustable from
9 in to 9½ in
(229 mm to 241 mm)
Air Path
minimum 40 in² (258 cm²)
minimum 16" minimum 16"
10 in.
Glass, acrylic, etc.
(254 mm)
10 in.
(254 mm)
Exit for Electrical
Exit for Water Supply
20 ⅜ in (518mm)
Fresh Air Inlet
10 in.
(254 mm)
Air inlet
