Dimplex CDFI-BX1500 Instructions D'installation

CDFI-BX1500 alternate installation instructions
To be followed if using three CDFI500-PRO cassettes
!
NOTE: This installation guide is intended to be used in conjunction with the
CDFI500-PRO and CDFI-BX1500 Owner's Manuals.

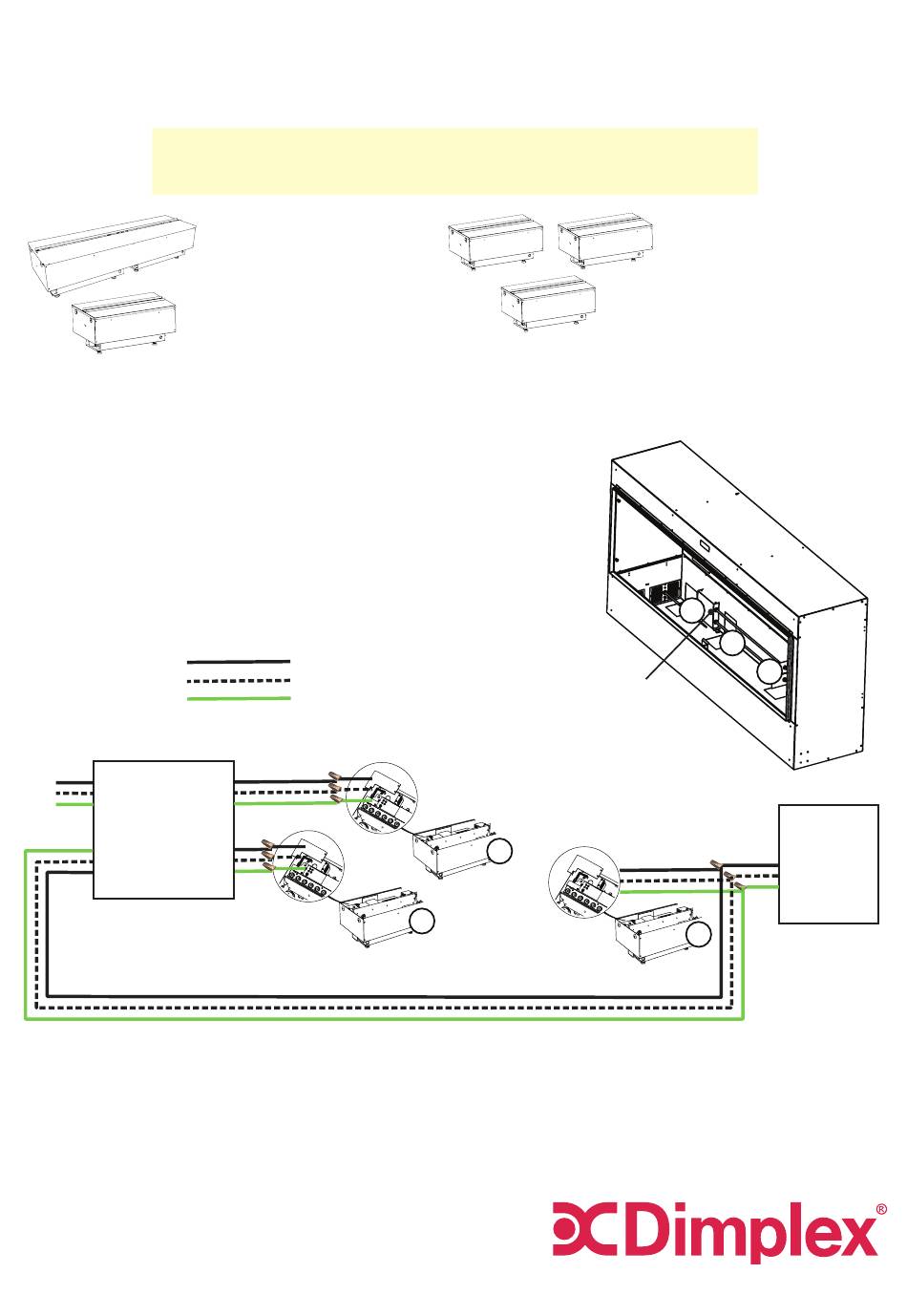

1. Using 5 ft of two-conductor non-metallic sheath cable with
ground wire (3 wires total) that meet local and national
electrical codes for rated power, connect the junction box in
the Pro Box and cassette 3, to the power supply.
2. Connect cassettes 1 and 2 using the cables from the
junction box in the Pro Box.
3. Make the connections in the junction box according to the
instructions in the owner's manual.
To
heater
Junction
box
1-888-346-7539 | www.dimplex.com
In keeping with our policy of continuous product
improvement, we reserve the right to make changes without
notice.
© 2024 Glen Dimplex Americas
If installing using a
CDFI1000-PRO and a
CDFI500-PRO, disregard
this document and follow
the steps described in the
owner's manuals.
Line
Neutral
Ground
5 ft of cable
Junction box
2
1
Junction
box
If installing using three
CDFI500-PRO cassettes,
you will have to adapt the
installation by modifying
the electrical connection
instructions.
1
2
3
120 V
Power
supply
3
7216190200R00
