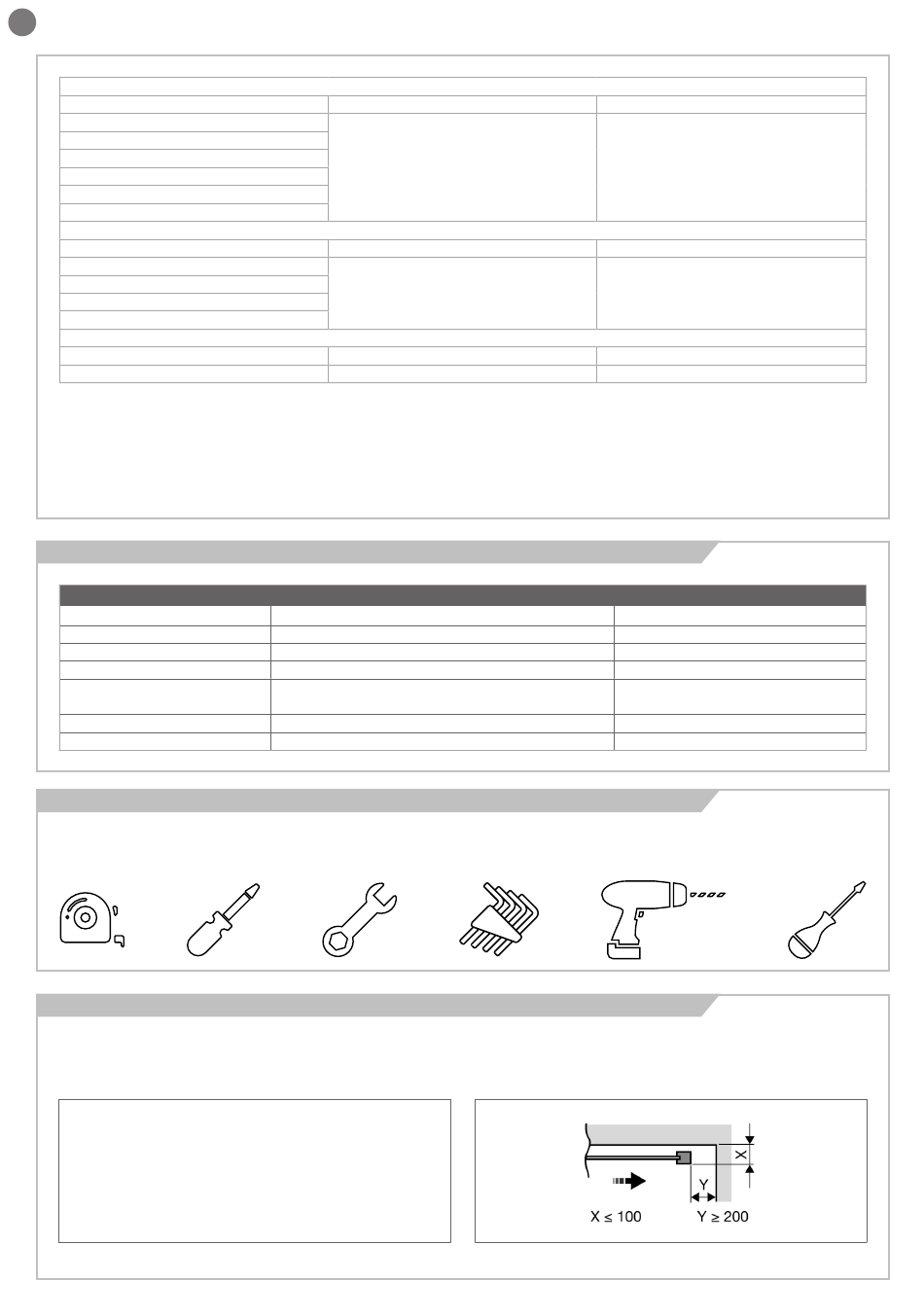

EN
Internal radar, external radar compliant with EN 16005
AS+
AS-
COM
RADAR (INT/EXT)
TEST (1/2)
BUS Accessories (NO mechanical selector)
AS+
AS-
Mechanical selector
In entrances with two sliding panels with anti-panic breakout
system (fixed at the sides or to the wall) the automation must
be installed on the outside to allow break-out in any position;
photocells must therefore be installed to ensure a motor STOP in
the event of breakout.
If there are semi-fixed side panels next to the sliding panels which
also have breakout function, instead of the STOP photocells it is
2.4 - Mounting surface materials
TABLE OF FASTENERS FOR MOUNTING SURFACE TYPES
Mounting surface materials
Steel
Aluminium
Aluminium
Reinforced concrete
Plasterboard/hollow bricks
Solid wood
2.5 - Assembly equipment
Before proceeding with assembly, be sure to have all the tools and
materials required to be able to install them with maximum safety,
2.6 - Safety distances
The protective measures regarding crushing and impact during the
opening movement can be considered applied to the danger points
if at least one of the following conditions is met, considering that
a) the panel travels parallel to a flat surface at a distance X ≤
100 mm from it and there is a safety distance Y ≥ 200 between
the secondary edge and the parts facing the room (see figure).
For telescopic doors, the measurement is made with reference
to the panel nearest to the room
6
A
B
Minimum thickness
5mm
6mm
3mm
>120mm in thinnest point
Must be reinforced with 5 mm steel structure
50mm
Max length [m]
30
Max length [m]
30
Max length [m]
5
sufficient to install two electrical contacts which break the circuit
and cut out the sliding panels if the semi-fixed side panels are
opened (which will always occur in breakout of the sliding panels).
N.B. If just one pair of photocells is installed, they must be
mounted 50 cm above the ground. If two pairs of photocells are
installed, they must be mounted 20 and 100 cm above the ground.
in accordance with the current regulations. The figure shows some
examples of equipment for the installer.
when most of the users are elderly, infirm, disabled and children,
door contact with the user is unacceptable:
Cable type
PVC LiYY 6x0.34mm²
Cable type
PVC LiYY TP (twisted pairs)
3x2x 0.5mm²
Cable type
PVC LiYY 8x0.34mm²
Screw type
M8
M8
M8 threaded inserts
Expansion plugs Ø 14mm, M8 hex. head
screw
M8
Hex. head anchor bolt 13mm Ø 8mm
crushing protection
