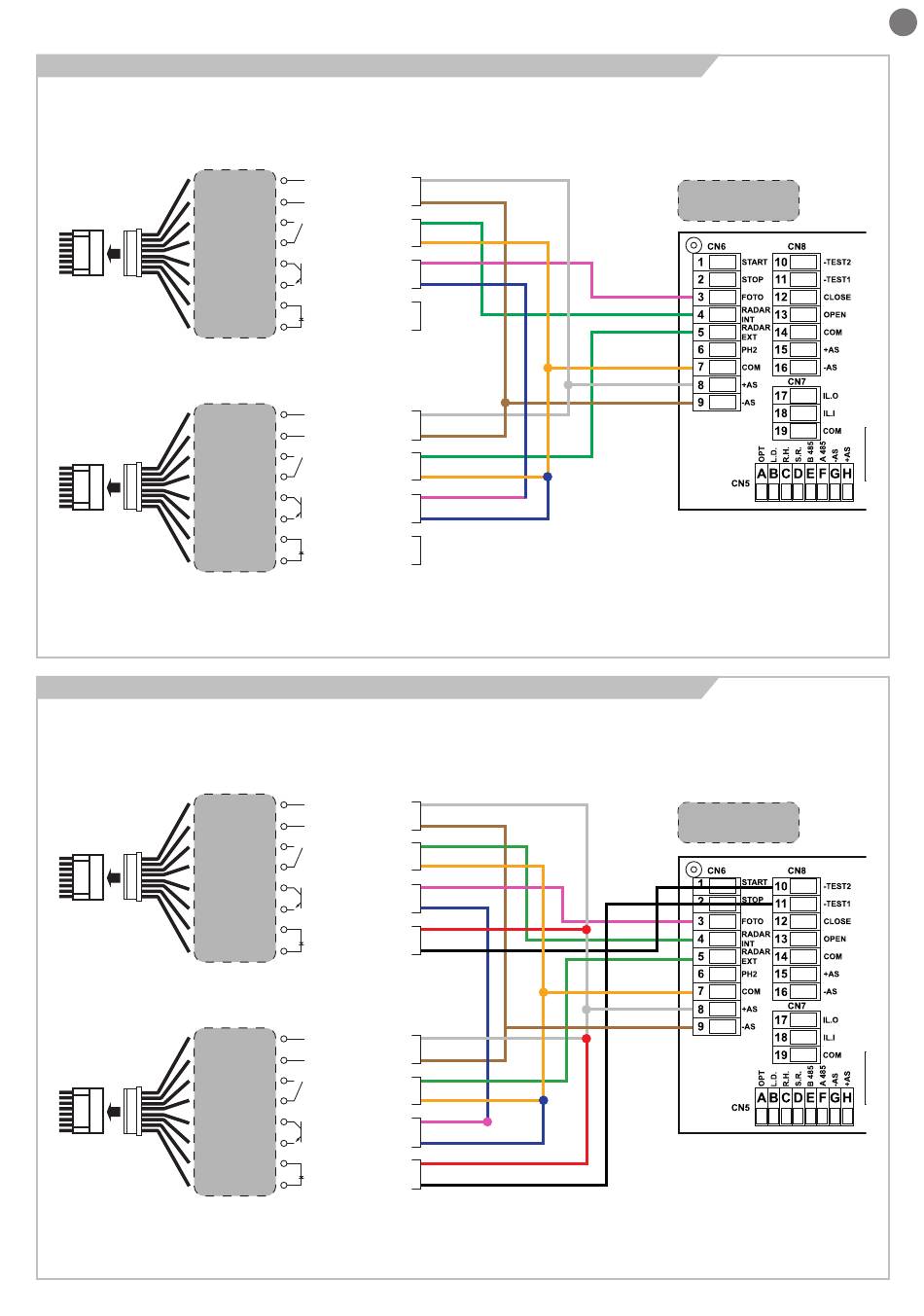

9.5 - Example of PA025CT, OP2 and OP3 connection
INTERNAL RADAR
WHITE (-)
BROWN (+)
GREEN
YELLOW
PINK
BLUE
RED
BLACK
EXTERNAL RADAR
WHITE (-)
BROWN (+)
GREEN
YELLOW
PINK
BLUE
RED
BLACK
9.6 - Example of monitored PA025CT, OP2 and OP3 connection
INTERNAL RADAR
WHITE (-)
BROWN (+)
GREEN
YELLOW
PINK
BLUE
RED
BLACK
EXTERNAL RADAR
WHITE (-)
BROWN (+)
GREEN
YELLOW
PINK
BLUE
RED
BLACK
AC/DC from 12 to 24 V
POWER
AC/DC from 12 to 24 V
N.O.
OUTPUT
R2,3,4,5
COM
MANIFOLD
OUTPUT
R1,2
TRANSMITTER
TEST-P
INPUT
TEST
TEST-N
AC/DC from 12 to 24 V
POWER
AC/DC from 12 to 24 V
N.O.
OUTPUT
R2,3,4,5
COM
MANIFOLD
OUTPUT
R1,2
TRANSMITTER
TEST-P
INPUT
TEST
TEST-N
+24V
AC/DC from 12 to 24 V
-24V
AC/DC from 12 to 24 V
INT RAD
N.O.
COM
COM
MANIFOLD
EXT RAD MANI-
FOLD
TRANSMITTER
+24V
TEST-P
TEST 2
TEST-N
+24V
AC/DC from 12 to 24 V
-24V
AC/DC from 12 to 24 V
EXT RAD
N.O.
COM
COM
TRANSMIT
INT RAD
MANIFOLD
COM
TRANSMITTER
+24V
TEST-P
TEST 1
TEST-N
Polarity Free
with OP2/OP3
Unnecessary cables:
* Grey/Pink
* Red/Blue
Polarity Free
with OP2/OP3
Unnecessary cables:
* Grey/Pink
* Red/Blue
