Operation
5
Operation
5.1
General
Caution while adjustment work. There is danger of injuring the hands!
Use safety gloves! →
Most gripping goods/elements (L-stones) with off-centre centre of gravity can be moved vertically with
the device (WEZ) (Fig. 1). However, there are elements with extremely off-centre centres of gravity that
cannot be adjusted via the centre of gravity compensation (on the support arm with adjustment
holes).
In this case, a maximum inclination angle of max. 10° is permissible during the lifting process
(→ Fig. 3).
For inclined positions exceeding this during the lifting process (angle > 10°), an individual test
is urgently required (consult the unit manufacturer)!
Symmetrical (and also asymmetrical) gripping goods/elements, such as T-stones, may also be
moved with the device (WEZ), but due to the design they NEVER hang vertically (see Fig. 2 and
5).
53100439

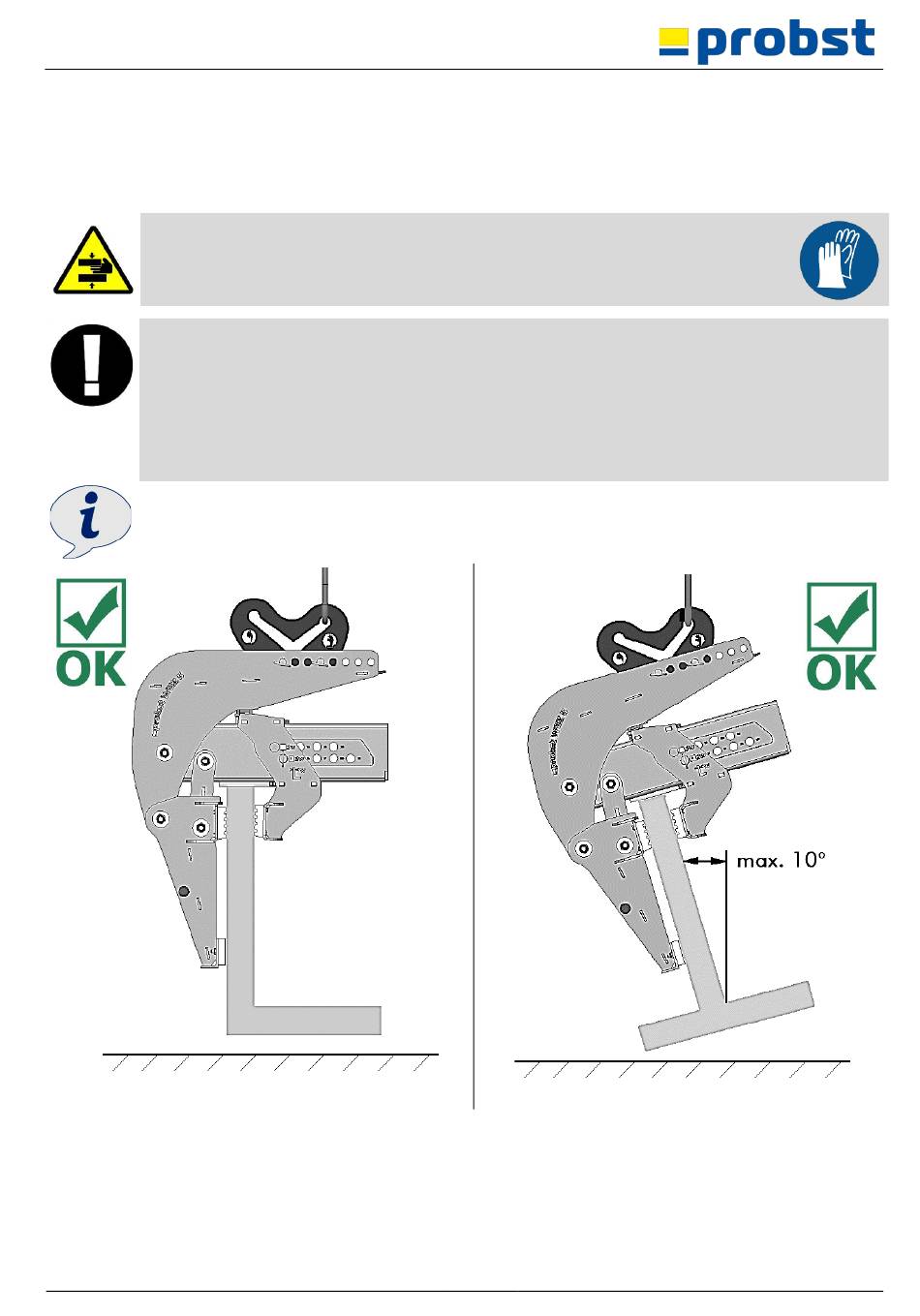

Image 1
