To remove the cutting blade
1. Turn off the mower, engage the parking brake, and remove the
batteries.
2. Remove the mower deck as directed in the section
"REMOVING THE MOWER DECK" in this manual.
3. Flip the deck on the ground so that the blades face upward.
4. While wearing protective gloves, place a screwdriver or metal
rod with diameter a little less than 5/16 in (8 mm) into the
fixing hole in the motor to act as a stabilizer. Place another
metal rod with diameter a little less than 1/4 in (6.35 mm)
(e.g., a bit) into the aligned hole in the blade and the flange to
act as another stabilizer (Fig. 26a).
5. Use the 14 mm wrench (supplied) to turn the blade bolt
counterclockwise to loosen it (Fig. 26a).
6. While wearing protective gloves, remove the bolt, washer and
the blade (Fig. 26b). The flange can be left on the motor shaft.

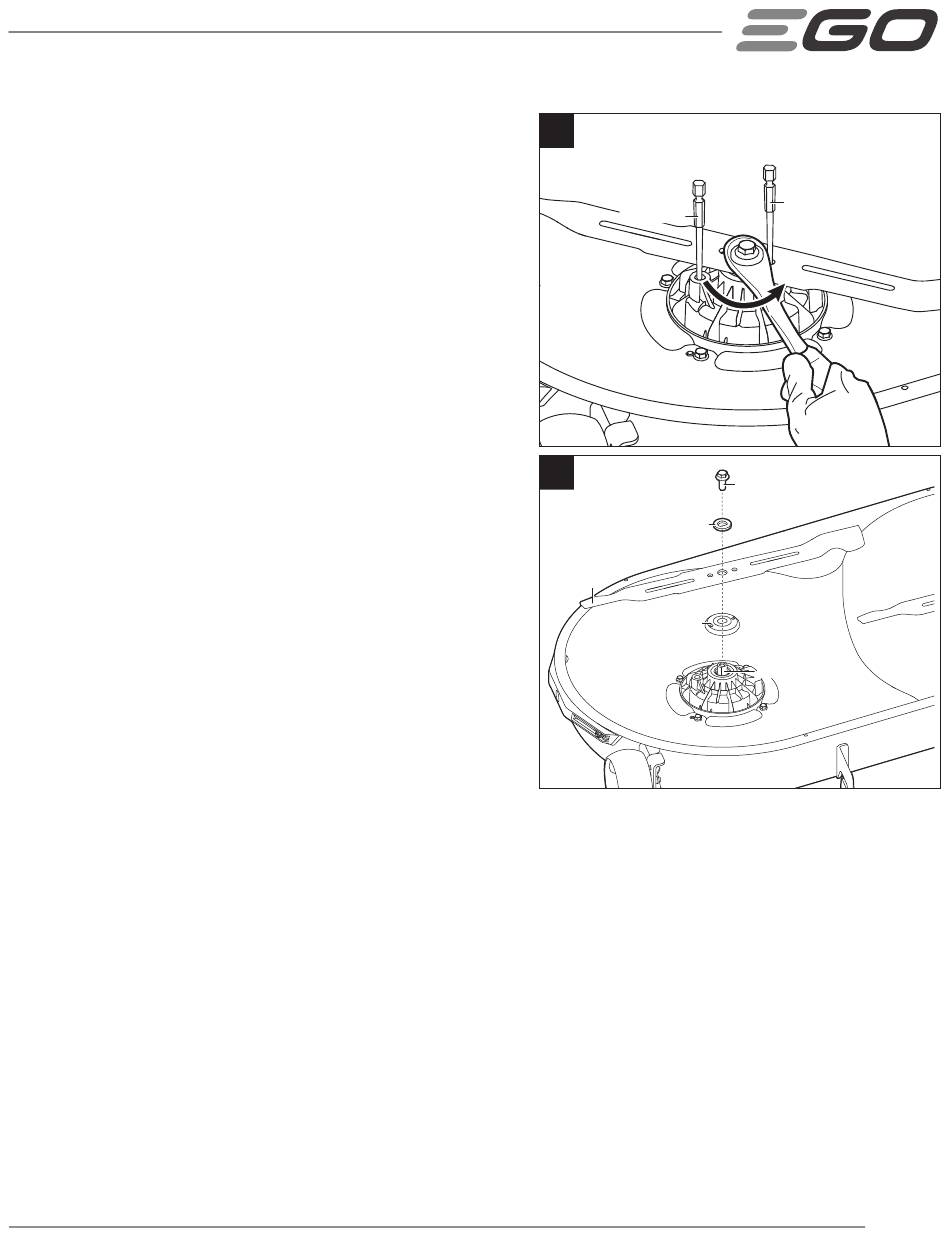

26a
26b
56-VOLT LITHIUM-ION ELECTRIC ZERO TURN MOWER — ZT4200S/ZT4200S-FC
Stabilizer 1
Bolt
Washer
Blade
Flange
Motor Shaft
Stabilizer 2
55
