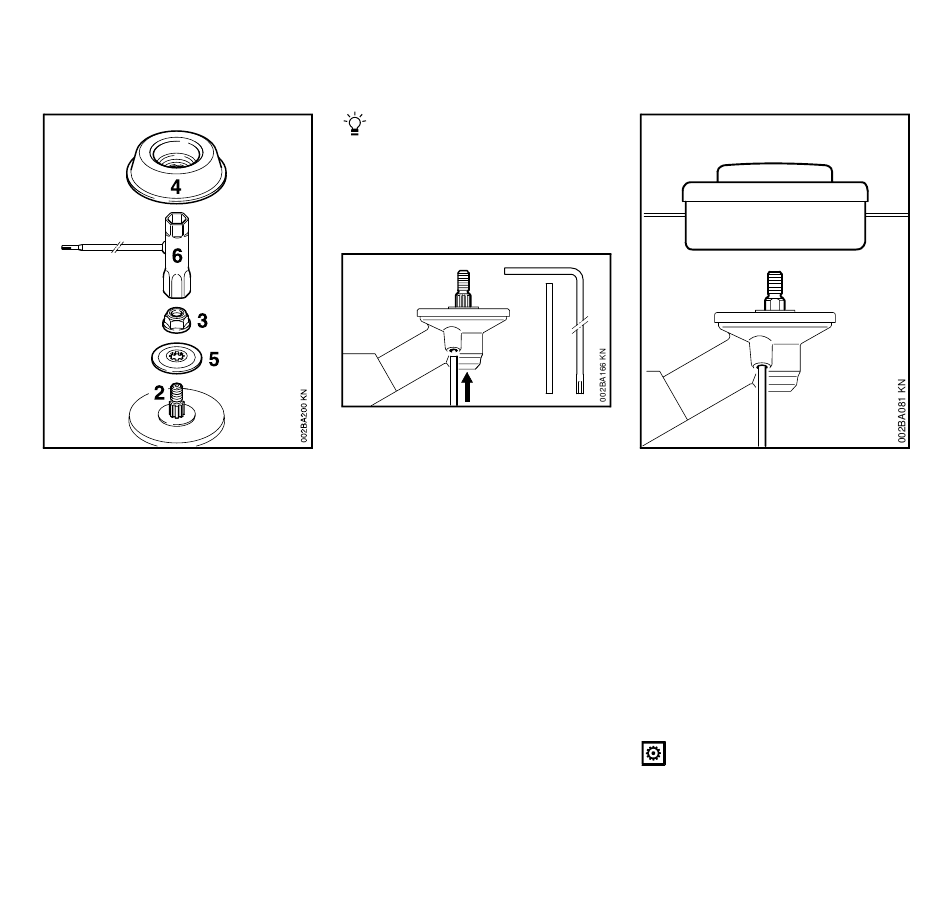

Removing Mounting Hardware
: Block the shaft – see next section
on "Blocking the Output Shaft".
: Use the combination wrench
unscrew the nut (3) clockwise (left-
hand thread) from the shaft (2).
: Pull the thrust washer (5) off the
shaft (2).
1)
Comes standard with the machine or
is available as special accessory
FS 130, FS 130 R
The rider plate (4) is in the parts kit
supplied with the machine.
: Go to "Mounting the Mowing Head"
or "Mounting Metal Cutting Tools".
Blocking the Output Shaft
8
7
: Insert the stop pin
(7) in the hole (8) in the gearhead as
far as stop – apply slight pressure.
: Rotate nut or cutting tool on the
shaft (2) until the stop pin slips into
position and blocks the shaft.
1)
(6) to
1)
Comes standard with the machine or
is available as special accessory
2
7
1) 1)
or screwdriver
Mounting the Mowing Head
Keep instruction sheet for mowing head
in a safe place.
:
:
:
1
Screw
STIHL SuperCut 20-2,
STIHL AutoCut 25-2, 30-2,
STIHL TrimCut 30-2 or
STIHL PolyCut 20-3
counterclockwise onto the shaft (1)
as far as stop.
Block the output shaft.
Tighten down the mowing head
firmly.
Remove the tool used to block the
shaft.
