Installation
2

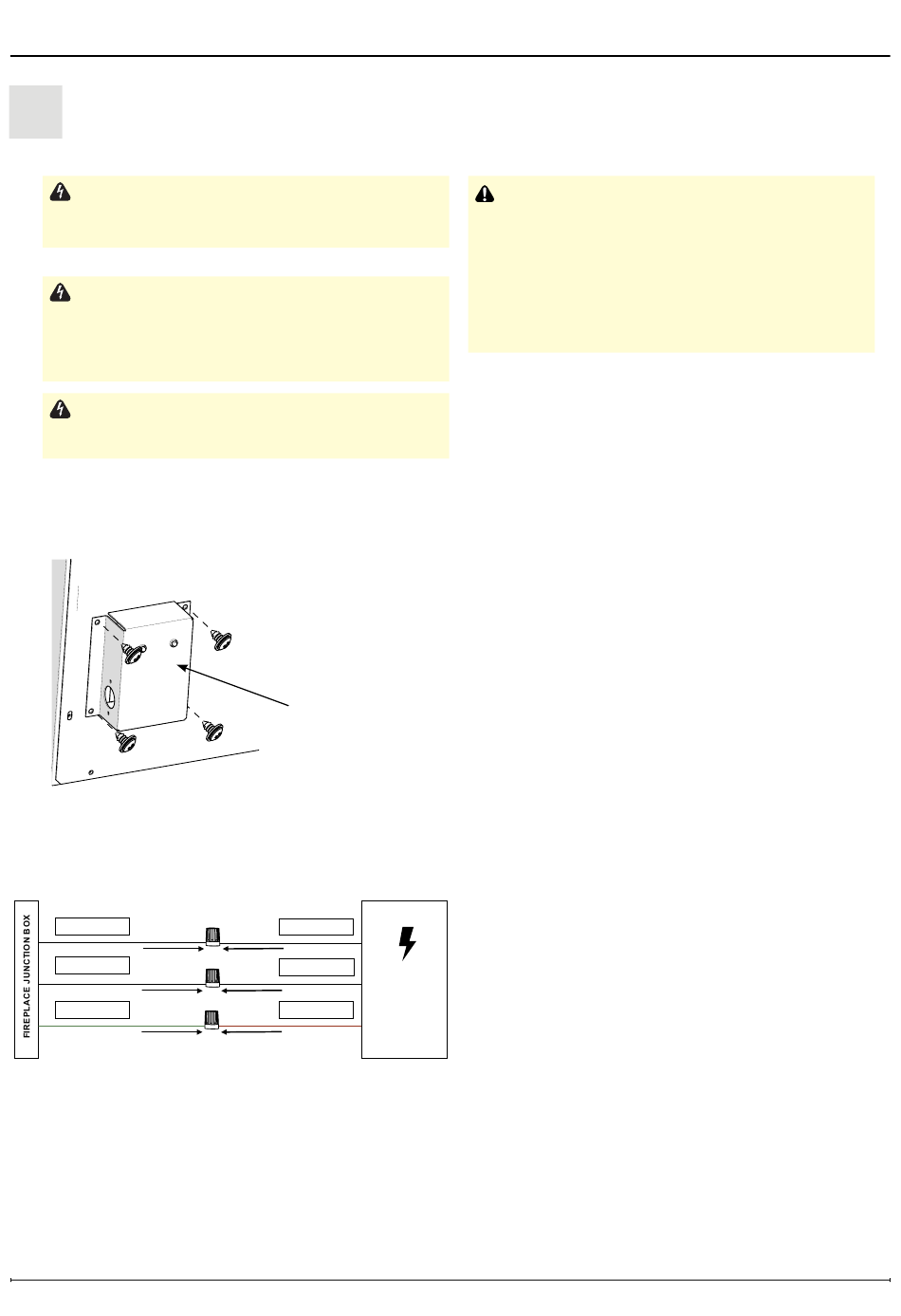

Connect power supply
WARNING: Use the appropriate wire to meet
local and national electrical codes for rated
power consumption.
WARNING: The installation of the electric
fireplace must comply with the applicable Local
and/or National Electrical Codes and utility
requirements.
WARNING: This heater is not intended for use
with an extension cord. Plug the cord directly into
an appropriate grounded wall receptacle.
120 V Installation (hardwired or power cord)
White - Neutral
Black - L1
Green - Ground
White - Neutral
Black - L1
Yellow - L2
Green - Ground
Electrical Box
Electrical Box
Neutral
Live
120 V
Power supply
or optional
Ground
plug kit
Neutral
Live
240 V
Live
Power supply
Ground
CAUTION: A dedicated, properly fused 15
Amp circuit is recommended, rated for 120 V.
A dedicated circuit will be required if, after
installation, the circuit breaker trips or fuse
blows on a regular basis when the heater is
operating. Additional appliances on the same
circuit may exceed the current rating of the
circuit breaker.
1. Remove the screws that secure the electrical box.
•
If using the power cord, proceed to step 3, following
the diagram for 120 V wiring.
2. Secure a 1/2" (1.3 cm) approved strain relief on the
electrical box and route the wires through it.
3. Complete the wiring according to the chosen
installation. Ensure all wire connections are tight.
4. Secure the electrical box.
9
