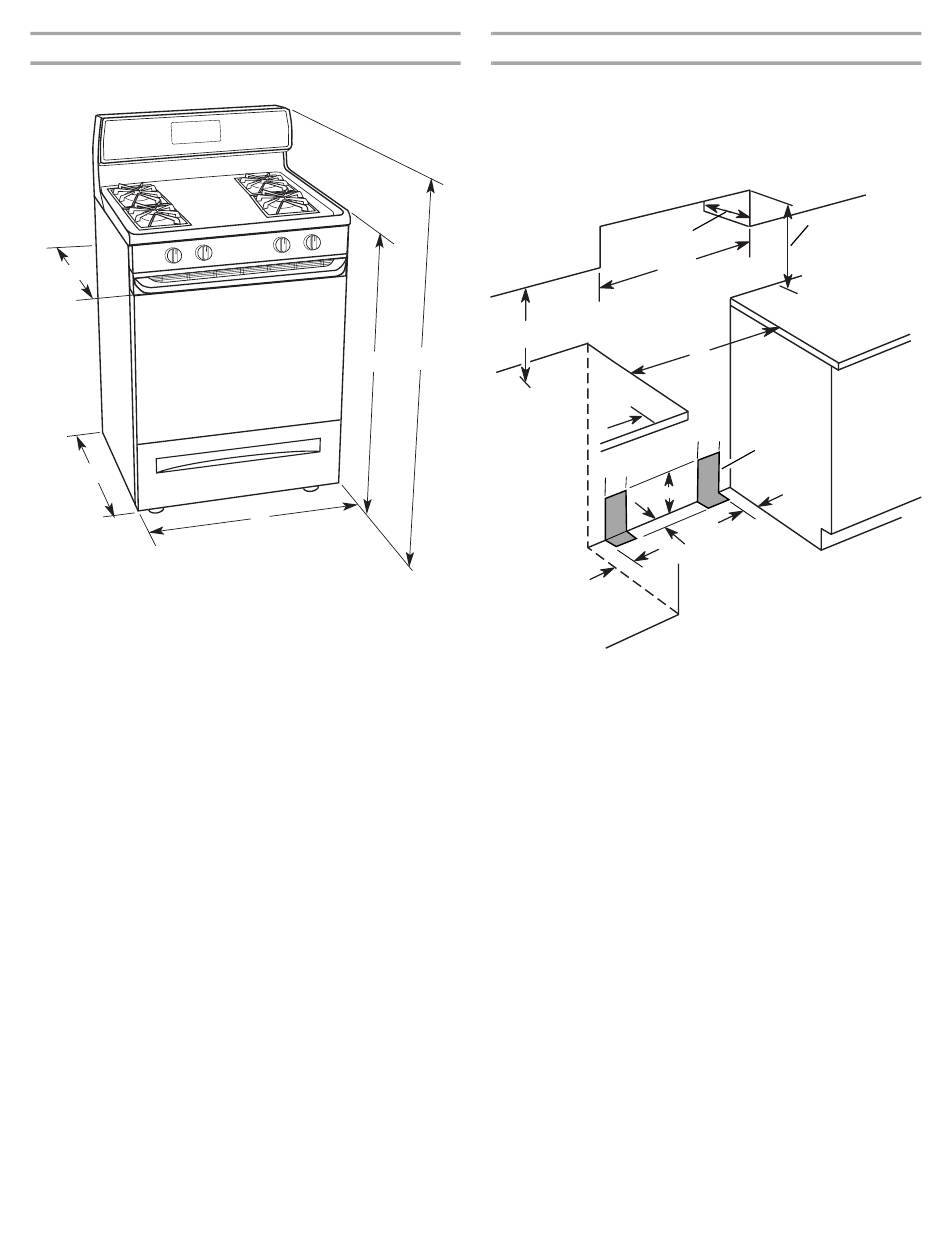

Product Dimensions
Freestanding Range
A
E
A. 27¹⁄₈" (68.9 cm) depth with handle
B. 36" (91.4 cm) cooktop height
C. 46⁷⁄₈" (119.1 cm) overall height
D. 29⁷⁄₈" (75.9 cm) width
E. 25" (63.5 cm)
4
C
B
D
Installation Clearances
Cabinet opening dimensions shown are for 25" (64 cm)
countertop depth, 24" (61 cm) base cabinet depth and
36" (91.4 cm) countertop height.
If the cabinet depth is greater than 24" (61 cm), oven frame must
extend beyond cabinet fronts by ½" (13 mm) minimum.
A
K
G
I
A. 18" (45.7 cm) upper side cabinet to countertop
B. 13" (33 cm) max. upper cabinet depth
C. 30" (76.2 cm) min. opening width
D. For minimum clearance to top of cooktop, see NOTE*
E. 30¹⁄₈" (76.5 cm) min. opening width
F. This shaded area recommended for installation of
rigid gas pipe
G. 8" (20.3 cm)
H. 17" (43.2 cm)
I. 4¹⁄₂" (11.4 cm)
J. 2" (5.1 cm)
K. 2" (5.0 cm) min. clearance from both sides of range to side
wall or other combustible material.
*NOTE: 24" (61 cm) minimum when bottom of wood or metal
cabinet is protected by not less than ¹⁄₄" (0.64 cm) flame retardant
millboard covered with not less than No. 28 MSG sheet steel,
0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or
0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the cooking
platform and the bottom of an unprotected wood or metal
cabinet.
D
B
C
E
G
F
H
I
J
