fadini Elpro X Notice D'instructions page 16

GB
FOR SWINGING GATE OPENERS:
position Dip Switch B No.1= OFF
Dip-Switch A
1 = ON Photocells stop gate during opening
2 = ON Radio does not reverse in opening
3 = ON Automatic closure
4 = ON Pre-flashing operational
5 = ON Step-by-step radio
6 = ON Pedestrian service
Dip-Switch B
1 = OFF SWINGING GATE OPENER mode
2 = ON Deadman function
3 = ON reverse direction by means of the safety devices in the operation area
4 = ON DSA control of the photocell transmitters if conneced to the dedicated terminals

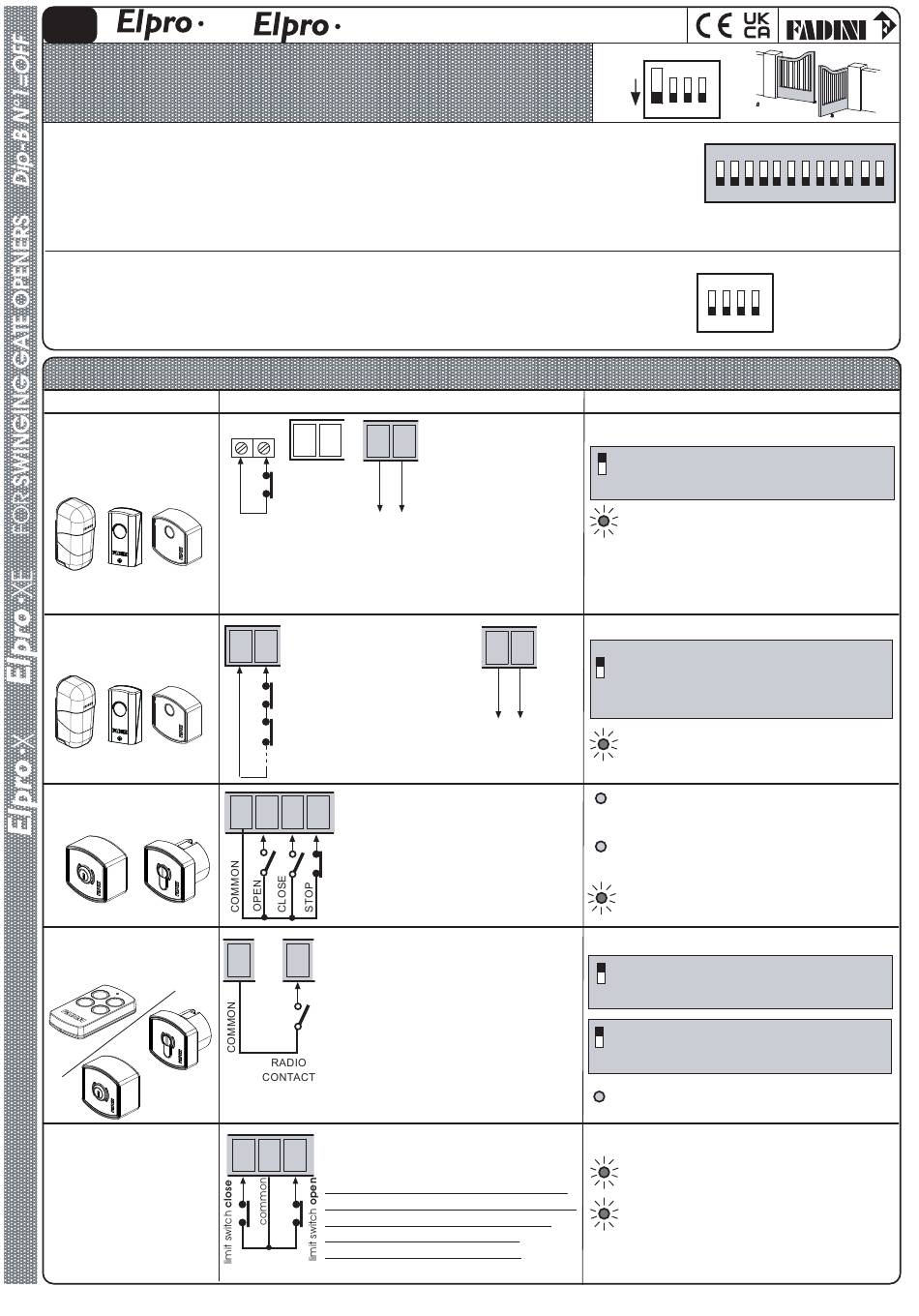

ELECTRICAL CONNECTIONS TO TERMINALS FOR SWIGING GATE OPENING – Dip Switch B No. 1 = OFF
Accessory
2nd pair of
Photocells:
installed internally
1° pair Photocells:
installed externally
Key-operated
switch
Radio contact
(step-by-step mode):
Limit Switches: if not
fitted, link out the
terminals or use
terminals 9 and 10 for
the function reverse
direction during
opening (described on
page 18) (*)
page 16
X
XE
7 = ON Stroke Reversing Pulse on Opening
8 = ON No wing delay during opening. Motors start together
9 = ON Enables input of the 2nd pair of photocells
10 = ON Flashing light off during pause
11 = ON Re-closes in Opening and Dwell time after crossing the
photocells 12 = ON Memory of time settings when frequent operations
are needed
Electrical connections
1 2
12 13
With Dip A No.9=ON and the NC contact connected: The gates
stay stopped as long as the photocells are obstructed.
- In opening cycle: obstacle removed, gates go on opening
- In closing cycle: obstacle removed, gate travel reversed
NOTE: if no photocells 2nd pair are used, it is not necessary to
bridge the contact input, only set DIP-SWITCH-A No. 9=OFF
1 2
All NC contacts of
safety accessories
such as Photocells
NC
(receivers) must be
connected in series
NC
with terminals 1 and 2
3 4 5 6
NO and NC contacts to connect to the
respective terminals on the selector
switches or the push-button panel.
NC
All possible configurations are attached
to the related control accessories.
connecting any NO contact across the two
terminals generates, with each impulse:
3 7
- Opening only: Dip 2=ON and Dip 5 = OFF
- inversion of direction with each impulse
Dip 2 = OFF and Dip 5 = OFF
- Step-by-step: Open-Stop-Close-Stop
Dip 2 = OFF and Dip 5 = ON
- During opening no new command is
accepted. During dwell or closing, each new
command stops and reverses travel
direction.Dip 2=ON e Dip 5=ON
IMPORTANT: if the limit switches are not used
8 9 10
then bridge inputs 8 and 10 with common 9 .
The terminals 9 and 10 also provide inputs
for the NC contact on opening: if activated
during the opening cycle, gate travel is
reversed for a short distance (see
paragraph Functions on page 18)
UNIVERSAL ELECTRONIC CONTROL BOXES
230V 50/60Hz SINGLE-PHASE
24V ac output max. load:
n°1 radio receiver
n°2 pairs photocells
12 13
24V ac output max.
load:
n°1 radio receiver
n°2 pairs photocells
DIP-SWITCH - B
ON
OFF
1 2 3 4
DIP-SWITCH - A
ON
OFF
1 2 3 4 5 6 7 8 9 10 11 12
DIP-SWITCH - B
ON
OFF
1 2 3 4
Dip-Switches and LED signals of the various functions
DIP-SWITCH-A N°9:
ON: Photocell 2nd pair enabled
OFF: No photocell 2nd pair used
9
L2 On = no obstacle present, turns off with
obstacle present
DIP-SWITCH-A N° 1:
ON: stop gate in opening and reverse in
closing when cleared
OFF: no stop in opening and reverse in
1
closing when obstructed
L3 ON= no obstacle. It goes off in case
of obstacle
L4 OFF= no OPEN contact, turns on with
every open impulse
L5 OFF= no CLOSE contact, turns on with
every close impulse
L6 ON= STOP contact closed, turns off with
every stop impulse
DIP-SWITCH-A N°2 and N°5:
ON:during opening does not reverse and does
not stop
2
OFF: during opening always stop and reverses
ON:Step-by-step with intermediate stop
OFF: Reverses movement by radio impulse
5
L7 OFF= no RADIO contact, turns on with
every radio contact impulse
L8 ON= off when gate closed
L9 ON= off with gate open
