3.2.1 Changing closing direction indication
As a standard, AQ actuator is configured to close clockwise. If the
actuator must close counter-clockwise, you can change the
orientation of the position indicator cap.
This change requires to have the actuator software set

accordingly.
 To proceed to this setting, see §5.2.

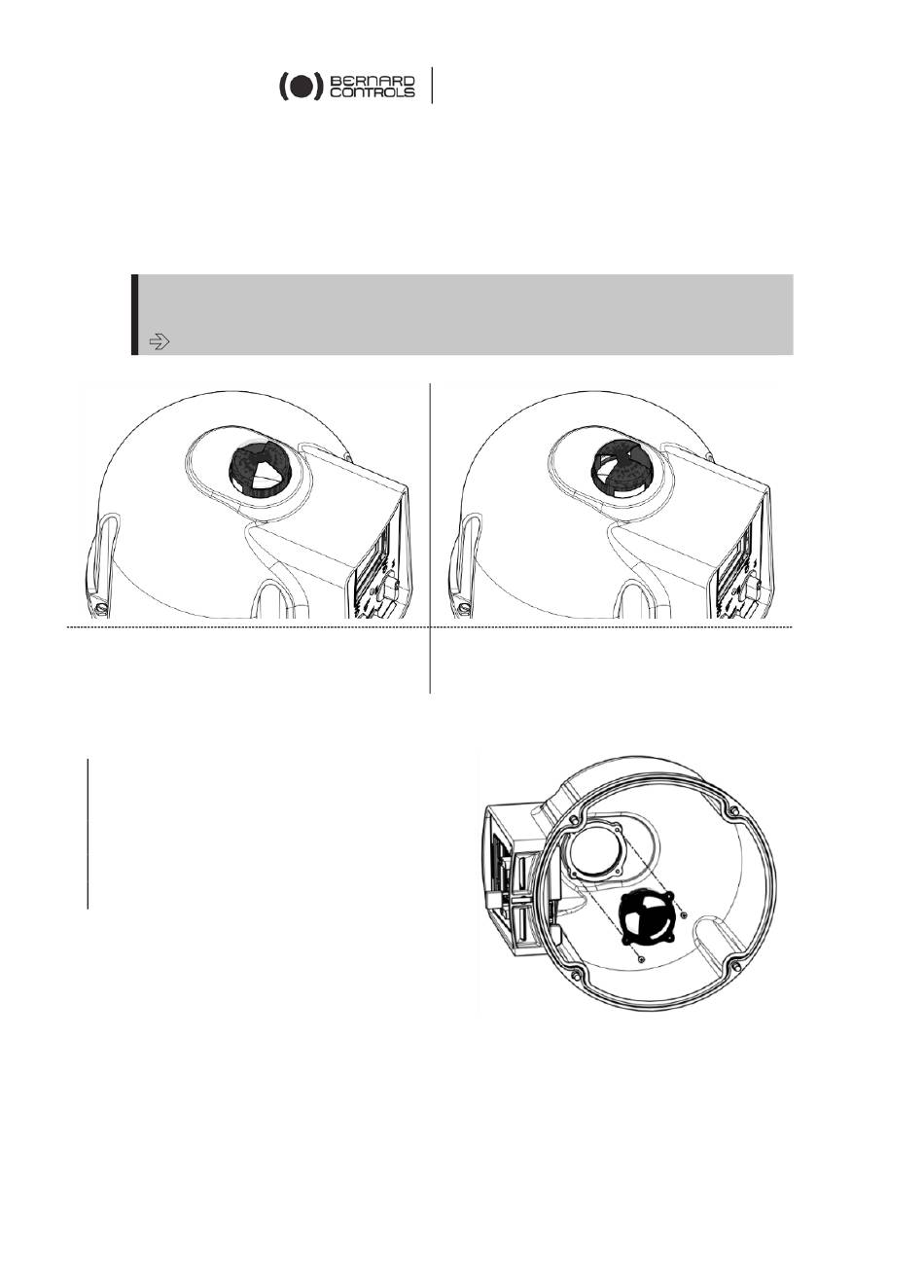

Standard indicator orientation
for clockwise closing
How to change cap orientation
1. Disassemble the cover then the
cap.
2. Turn the cap 90°.
3. Reassemble the cap then the
cover.
English
Reverse indicator orientation
for counter-clockwise closing
