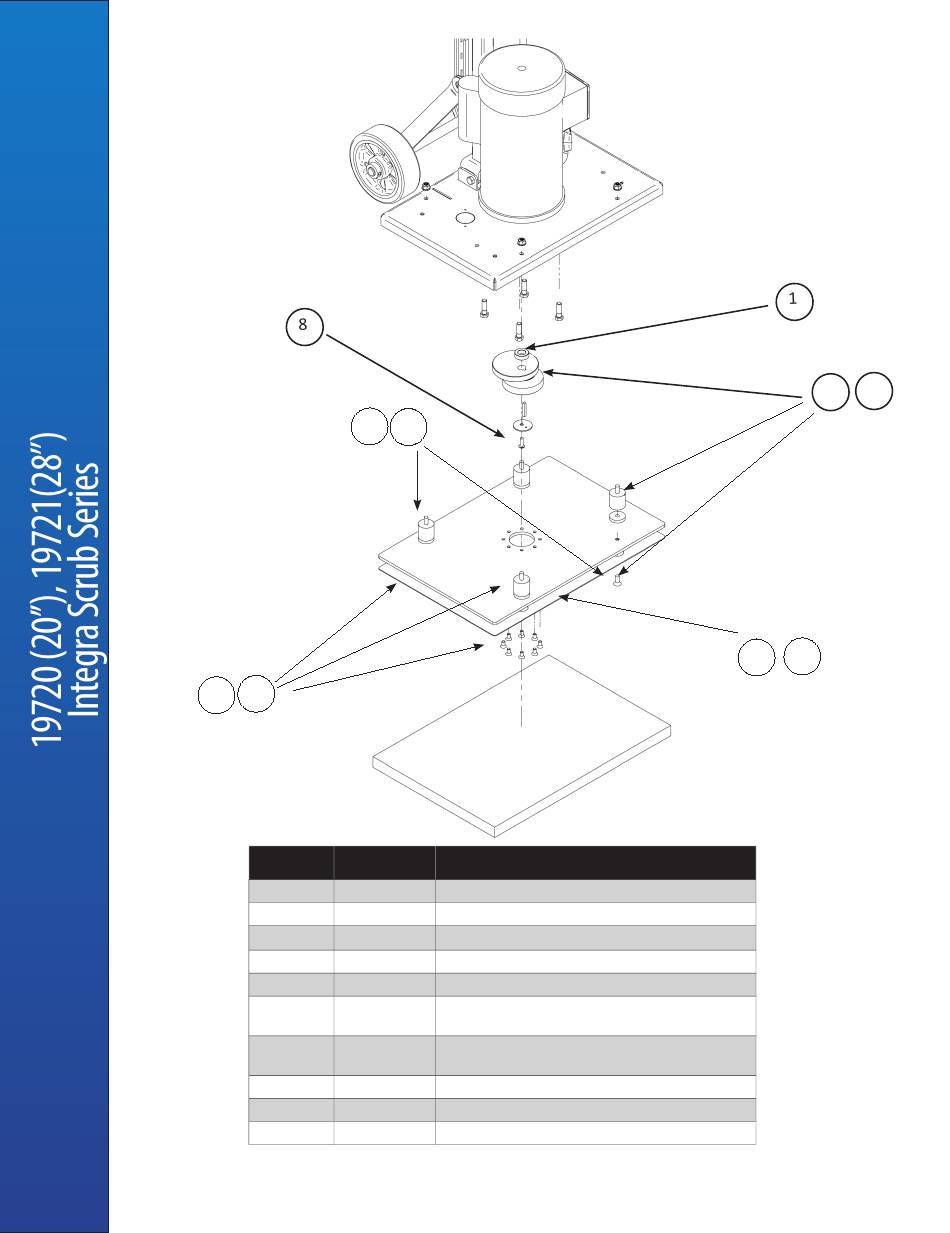

Dustbane Integra Scrub Manuel De Pièces Et D'opérations page 10

10
All manuals and user guides at all-guides.com
4
7
6
Item No. Part No.
1 19781
2 19759
3 19782
4 19741
5
19783
6
19784
7
19785
8
19762
9 19742
10 19786
5
Part Description
Motor Shaft Spacer
Eccentric Assembly & Isolator Repair Kit 20" (4)
Eccentric Assembly & Isolator Repair Kit 28" (8)
Isolator Repair Kit 20" (4)
Isolator Repair Kit 28" (8)
Base Plate Assembly 20"
(includes 1, 2, 4 & 9)
Base Plate Assembly 28"
(includes 1, 3, 5 & 10)
Motor Bolt
Grip Face 20"
Grip Face 28"
2
3
10
9
