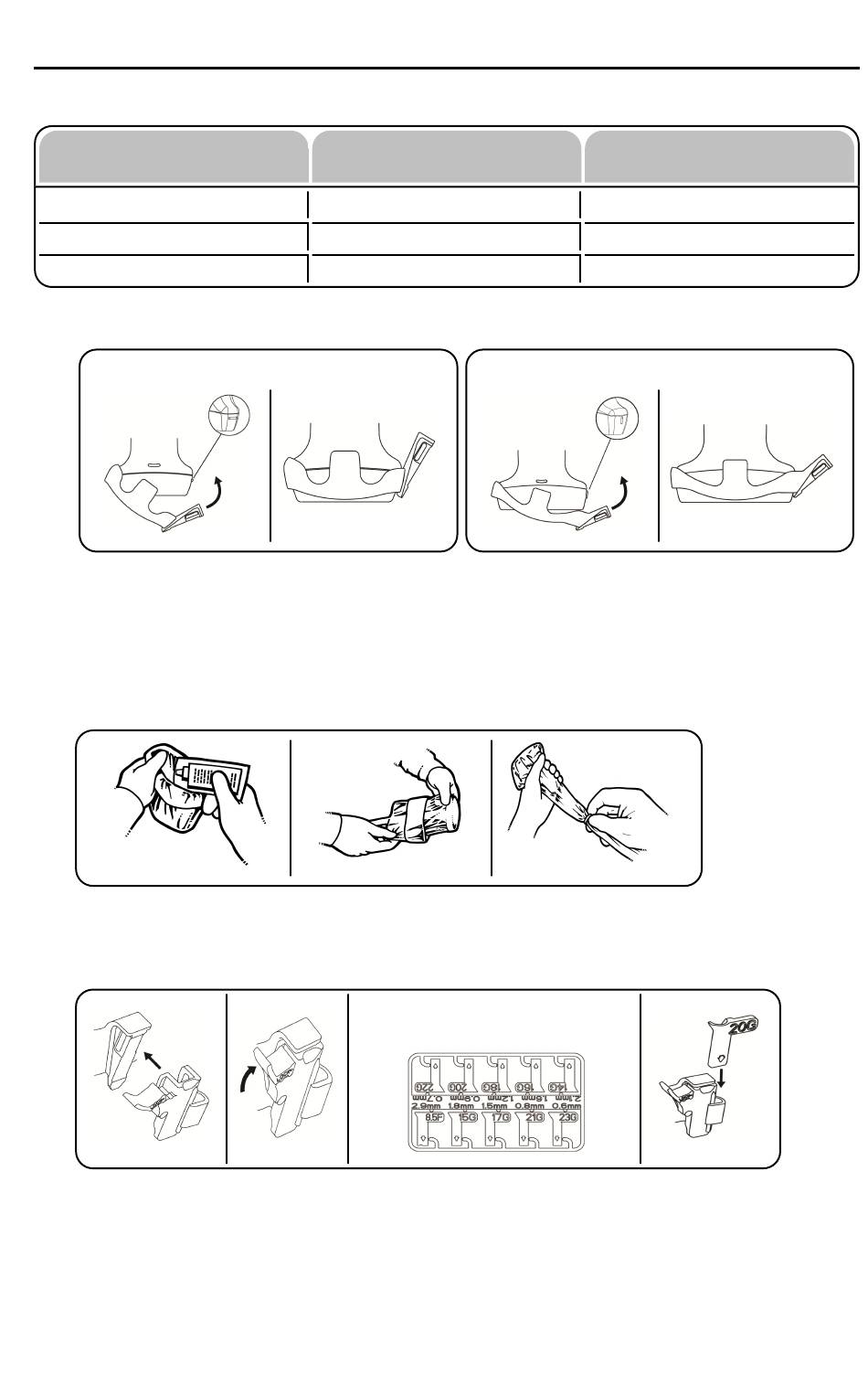

USING NEEDLE GUIDANCE SYSTEM
TRANSDUCER
L14-5, L9-4
C5-2, C7-3
L14-5W
1. Attach bracket to transducer by aligning locating features. Ensure bracket is firmly attached.
C5-2/C7-3, L14-5/L9-4
2. Place an appropriate amount of gel inside cover and/or on transducer face. Poor imaging may
result if no gel is used.
3. Insert transducer into cover making sure to use proper sterile technique. Pull cover tightly over
transducer face to remove wrinkles and air bubbles, taking care to avoid puncturing cover.
4. Secure cover with enclosed bands.
5. Inspect cover to ensure there are no holes or tears.
6. Using proper sterile technique, snap unlocked needle guide onto attachment area of bracket.
7. Push lock into locked position.
8. Select appropriate size needle guide insert and slide into position.
Ultra-Pro II™ Needle Guidance System
CORRESPONDING BRACKET
L14-5/L9-4
C5-2/C7-3
L14-5W
L14-5W
8.5FR,14,15,16,17,18,20,21,22,23GA
2.9,2.1,1.8,1.6,1.5,1.2,.9,.8,.7,.6mm
2
CENTER LINE CROSSING
DEPTH
3.0cm
8.7cm
3.2cm
