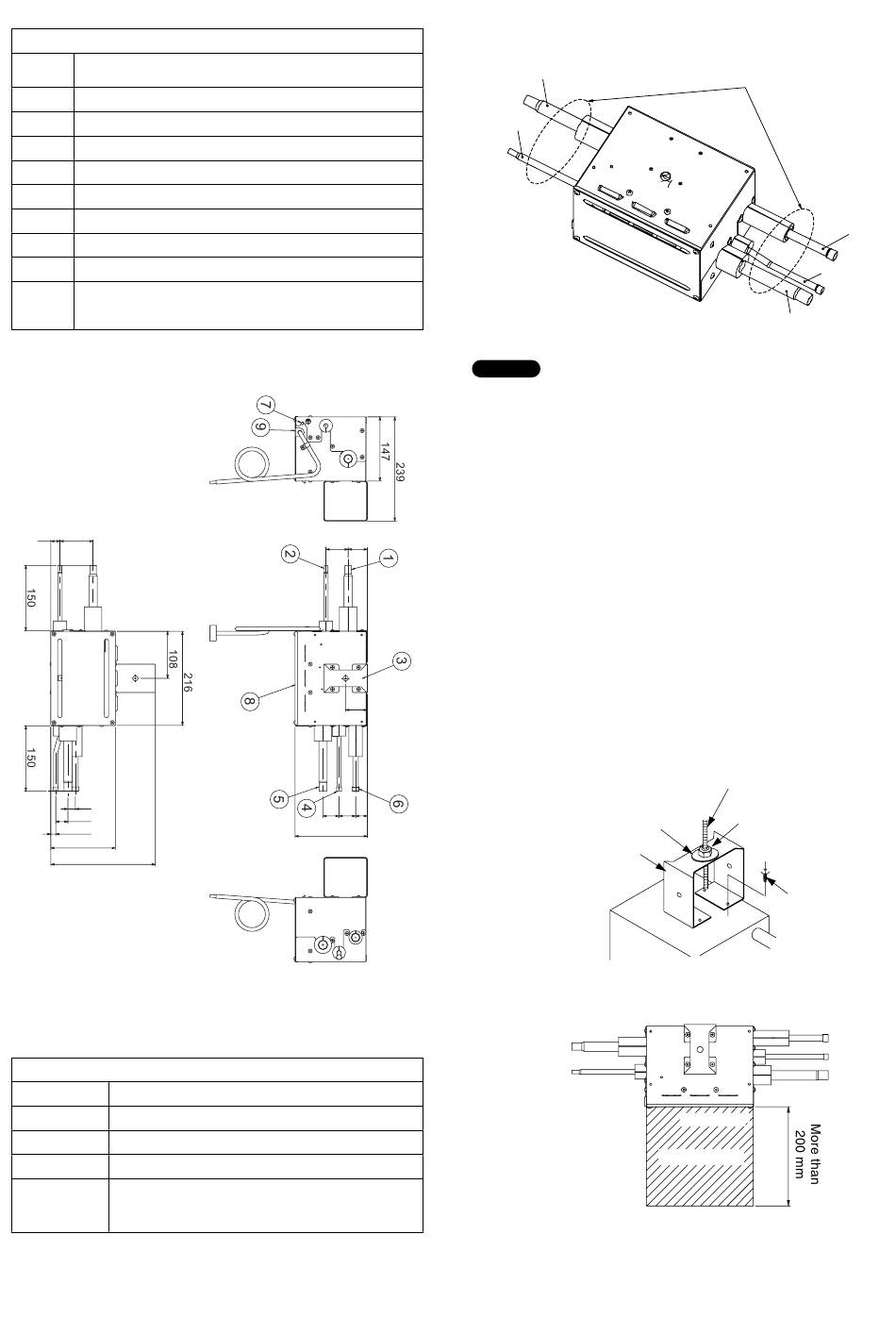

1-14. Optional Solenoid Valve Kit
ATK-RZP56BGWB
Part
Types and specifi cations of tubing connections
number
1
Gas tube: ø12.7
2
Liquid tube: ø6.35
3
Suspension hook
4
Liquid tube: ø9.52
5
Suction tube: ø15.88
6
Discharge tube: ø12.7
7
Earth (M5 with washer)
8
Service panel
Power outlet (connected to a 5 m cabtyre cable with
9
connector)
21 76
17
28
11
149
240
• Specifications
ATK-RZP56BGWB
2.2 ≤ Total capacity of indoor units (kW) ≤ 5.6
Compatibility
Power source Single-phase 200V 50/60Hz (supplied by indoor units)
Power input 20 W
Net weight 4.3 kg
Flat washer × 2
Accessories Insulating tape
PCB connector × 1
Liquid tube
Unit: mm
N OT E
Notes on Installation
• Be sure to secure the valve body by using its structure with
the suspension bolt, etc.
• Install the valve body within a distance of 30 m from the
indoor unit.
Some refrigerant noise will be produced. Therefore in
hospitals, libraries, hotel guest rooms, and other quiet
locations, it is recommended that the solenoid valve kit be
installed on the ceiling reverse side of a hallway or another
51 44
location separated from the room.
• When installing the valve body, install with the top surface
facing up. Secure 200 mm or more of space to the front so
that the front service panel can be removed.
• If the supplied suspension hook will not be used, and other
fastening devices will be attached in the field, use the 4 screw
holes on the top surface. DO NOT use any long screws other
than the supplied screws. Use of other screws may puncture
the internal tubing, resulting in refrigerant leakage.
50
• Do not block the air holes.
37 3827
166
Unit: mm
15
Cool with damp cloth or other means when
brazing the joint with a torch. Otherwise, the
Gas tube
solenoid valve will be damaged.
Suspension bolt (M10
Washer
Suspension hook
How to use suspension hook
Service space
Discharge
tube
Liquid
tube
Suction tube
) (field supply)
or 3/8"
Nut (field supply)
(M10 )
or 3/8"
M4 screws (12 pcs.)
Front side
