Envergure : 1000mm
Longueur : 862mm
Poids : 740 g
Moteur : ParkZone BL400-15T brushless avec réducteur
Nécessaire : Emetteur 4 voies (minimum)
Récepteur 4 voies (minimum)
Batterie Li-Po 3S 2100mAh ou
Ni-MH 9 éléments 10.8V 1000mAh
Spannweite: 1000mm
Länge: 862mm
Gewicht: 740 g
Antrieb: ParkZone BL400-15T bürstenloser Motor mit Getriebe
Erforderliches Zubehör, nicht enthalten: Mindestens 4 Kanal Sender
Apertura alare: 1000mm
Lunghezza f.t.: 862mm
Peso: 740 g
Motore: ParkZone BL400-15T brushless con riduttore
Cosa serve: Una Trasmittente a 4 canali (minimo)
Una Ricevente a 4 canali (minimo)
Una batterai Li-Po 3S 2100 mAh o
Un pacco da 9 celle da 10.8 V 1000 mAh Ni-MH
Envergadura del ala: 1000mm
Longitud total: 862mm
Peso: 740 g
Motor: ParkZone BL400-15T sin escobillas con caja de engranajes
Requerido: Transmisor 4 canales (minimo)
Receptor 4 canales (minimo)
Bateria de Li-Po 3S 2.100 mAh, ó
10.8V 1000mAh Ni-MH
Charge-and-Fly

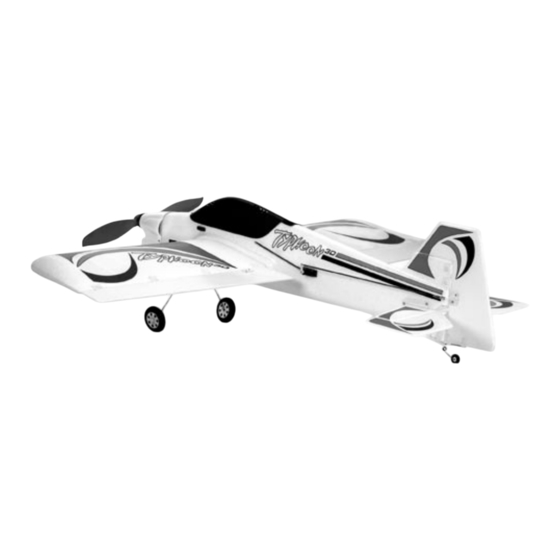

Typhoon 3D
Instruction Manual
4 Kanal Empfänger
3S Lipo 2100 mAh Akku oder
9 Zellen 10.8V 1000mAh Ni-MH Akku
Park Flyer
™
Mode d'emploi
Bedienungsanleitung
Manuale d'istruzioni
Manual de instrucciones
Wingspan: 1000mm
Overall Length: 862mm
Weight: 740 g
Motor: ParkZone BL400-15T
brushless with gearbox
Required: 4-Channel transmitter (minimum)
4-Channel receiver (minimum)
3S 2100mAh Li-Po battery or
9-cell 10.8V 1000mAh Ni-MH
Publicité
Table des Matières
Manuels Connexes pour Horizon Hobby ParkZone Typhoon 3D
Sommaire des Matières pour Horizon Hobby ParkZone Typhoon 3D
- Page 1 Typhoon 3D Instruction Manual Mode d’emploi Bedienungsanleitung Manuale d’istruzioni Manual de instrucciones Envergure : 1000mm Longueur : 862mm Poids : 740 g Moteur : ParkZone BL400-15T brushless avec réducteur Nécessaire : Emetteur 4 voies (minimum) Récepteur 4 voies (minimum) Batterie Li-Po 3S 2100mAh ou Ni-MH 9 éléments 10.8V 1000mAh Spannweite: 1000mm Länge: 862mm...
- Page 2 ™ assembled in order to allow you to get in the air quickly. Your Typhoon flying skills, not your building skills. Your ParkZone Typhoon 3D PNP will 3D Plug-N-Play (PNP™) already has the 3-wire servos, a ParkZone allow you to do such maneuvers as harriers, blenders, hovering, knife BL400-15T brushless motor, and a brushless ESC installed.
- Page 3 Il Typhoon 3D Plug-N-Play (PNP™) è già di volo 3D invece che a costruire. Il ParkZone Typhoon 3D PNP è in fornito di servi a 3 fili, un motore brushless ParkZone BL400-15T ed un grado di eseguire manovre come harrier, blender,hovering,volo a coltello regolatore brushless già...
-
Page 4: Charging The Flight Battery
Step 1 Charging the Flight Battery WARNING: Failure to use the proper charger for a Li-Po We recommend that you choose either the 9-cell 10.8V Ni- battery can result in serious damage, and if left charging MH battery pack (PKZ1027), or the Thunder Power 2100mAh long enough, will cause a fire. -
Page 5: Installing Landing Gear
Step 2 Installing Landing Gear 1. Slightly squeeze together the legs of the landing gear while sliding it into the allotted space on the fuselage undercarriage. 2. The fit should be snug, so it will not easily pull out. 3. Gently tug on the landing gear to ensure that it is inserted all of the way into the fuselage and will not come out when the plane is in use. -
Page 6: Attaching The Wing
Step 3 Attaching the Wing Always check ailerons prior to flight to make sure they are not reversed! 1. Locate the wing set. Note that the servos are located in the bottom of the wing. NOTE: Trim adjustments to ailerons may be necessary 2. - Page 7 Deutsch Schritt 3.Tragflächenmontage 1. Nehmen Sie die Tragflächen zur Hand. Beachten Sie, dass sich die Servos auf der Unterseite befinden. 2. Nehmen Sie eine Tragflächenhälfte und schieben Sie diese in den Rumpf. Stecken Sie vorher das Kabel für das Querruder ein (durch das Loch in der Rumpfseitenwand). Ziehen Sie das Kabel in den Rumpf und schieben Sie den Flächenverbinder in das vorgesehene Loch.
- Page 8 Step 4 Attaching the Horizontal Stabilizer and Rudder 1. Locate horizontal stab. 2. Carefully slide horizontal stab into fuselage, making sure control surface horn is on top. 3. Use included strips (4 pieces) of clear tape to secure stab to tail fillet. You should use 1 strip for top and bottom of each side.
- Page 9 Français Stade 4. Montage de la Profondeur et de la Dérive 1. Prendre la profondeur. 2. Faire glisser délicatement dans le fuselage, faire attention que le guignol de commande soit vers le haut. 3. Utiliser les 4 pièces d’adhésif transparent pour sécuriser l’ensemble. Vous devez utiliser une bande d’adhésif sur le dessus, une sur le dessous et de chaque côté.
-
Page 10: Vérification Du Centre De Gravité
Center of Gravity Information Your ParkZone Typhoon 3D Plug-N-Play aircraft can be ™ ® ™ Aileron, Elevator, and Rudder Throws powered by either a 9-cell Ni-MH 1000mAh battery pack The recommended throws in low rate are: (PKZ1027), or by the Thunder Power 3S 2100mAh bat- Ailerons: +/- 20mm Elevator: +/- 35mm tery pack (THP21003SPL). - Page 11 Italiano Informazioni sul Centro di Gravità Il ParkZone Typhoon 3D Plug-N-Play può venire alimentato o da un Escursione degli Alettoni, Profondità e Direzionale. ® ™ ™ Le escursioni consigliate per il low rate sono le seguenti: pacco batteria da 9 celle Ni-MH 1000mAh (PKZ1027) o da un pacco Alettoni: +/- 20mm Thunder Power 3S 2100mAh (THP21003SPL).
- Page 12 Step 5 Installing the Propeller and Spinner Your Typhoon 3D PNP has two props that are included. ™ You can select the prop that best works with your flying style. A. 343mm x 178mm (PKZ1006): This prop is recommended for the first several flights on your Typhoon 3D PNP.
- Page 13 Italiano Passo 5. Installazione dell’elica e dell’ogiva Il Typhoon 3D PNP è fornito con 2 eliche. È possibile scegliere l’elica più adatta al vostro modo di volare. A. Una 343mm x 178mm (PKZ1006): Questa elica è raccomandata per i primi voli. È meno veloce dell’altra ma permette una migliore salita in verticale (specie con la batteria standard da 9 celle Ni-MH).
-
Page 14: Installing The Receiver
Step 6 Installing the Receiver Keep all body parts away from the propeller. You can also make Carefully plug in the servo leads into the corresponding any trim adjustments to the control surfaces at this time. Once channels of the receiver you have chosen. The servo plugs you are satisfied that the channels are functioning correctly, may have to be trimmed carefully with a hobby knife if you are you can turn off the radio system. -
Page 15: Programming Your Esc
Step 7 20 Amp ESC: No: Move throttle stick to low throttle for 1 second The Typhoon 3D PNP can be powered by either a 9-cell ™ ™ (controller will beep once), and then return to mid-stick. 10.8V 1000mAh Ni-MH or a 3S 11.1V 2100mAh Li-Po battery pack. - Page 16 Deutsch Schritt 7. 20A bl Regler: Die Typhoon 3D PNP kann entweder mit einem 9 zelligen Ni-MH Akku mit A. Menü 1: BEC Abschaltung ™ ™ ca. 1000mAh betrieben werden oder mit einem 3 zelligen 2100mAh Li-Po 1 Beep Auto Cutoff Akku.
- Page 17 Español Paso 7. 20 Amp ESC: El Typhoon 3D PNP puede usar 9 celulas , 10,8v. 1000mAh ó 3S 11,1 V. A. Opción de Menú 1: Corte de Tensión Automático ™ ™ 2,100mAh Li-Po como bateria, indistintamente. Usando bateria Thunder Power 1 pitido –...
- Page 18 Step 8 Range Checking your Radio System • Always make sure all controls are functioning per the Tx input that you are giving. This includes, ailerons, After you have finished the final assembly, it is time to range rudder, elevator, and throttle. check the radio system within the Typhoon 3D PNP ™...
- Page 19 Italiano Passo 8. Controllo della Portata della Radio: Dopo aver terminato il montaggio finale è il momento di controllare la Togliere sempre la batteria dal modello sia quando si termina di portata della radio del Typhoon 3D PNP volare sia quando si va al campo. L’interruttore sulla fusoliera serve ™...
- Page 20 Step 9 Flying • Always verify the dual rates switch is set at the level where you plan on flying. We recommend LOW Always choose a wide-open space to fly your ParkZone ® rates for your initial flights. The Typhoon 3D PNP is Typhoon 3D PNP .
- Page 21 Deutsch Schritt 9. Fliegen Wählen Sie ein Flugfeld von ausreichender Größe für Ihren ParkZone • Stellen Sie sicher, dass der Empfänger, Regler und der Akku fest im ® Typhoon 3D PNP . Bevorzugen Sie den Einsatz auf Modellflugplätzen. Modell befestigt sind. ™...
-
Page 22: Conditions De Garantie
4. Please date your correspondence and be sure your Warranty: Horizon Hobby, Inc. guarantees this product complete name, address and daytime phone number to be free of defects in material and workmanship. If you appear on this enclosure. -
Page 23: Garanzia Ed Assistenza
Aufkleber/in den Rückadressen-Bereich. Le gen Sie eine ausführliche Beschreibung des Problems bzw. der Garantie: Horizon Hobby garantiert, dass das Produkt frei von Herstel- Probleme bei. lungs- und Materialfehlern ist. Wenn Sie einen beim Zusammenbau oder 4. -
Page 24: Replacement Parts
Replacement Parts Make sure that you keep your Typhoon 3D PNP flying! Replacement parts are available at your local hobby shop or ™ ™ from Helger Distribution. Please try your local hobby shop first. By supporting them, they will be there when you need them. -
Page 25: Pièces Détachées
Pièces détachées Maintenir votre Typhoon 3D PNP en état de vol ! Toutes les pièces détachées sont disponibles chez votre détaillant ™ ™ local. Si vous ne les trouvez pas, contacter Avio&Tiger et on vous indiquera ou vous pouvez les trouver. REFERENCE DESIGNATION PKZ1006... - Page 26 Ersatzteile Halten Sie Ihren Typhoon 3D PNP in der Luft! Ersatzteile sind bei Ihrem Händler erhältlich oder direkt beim Importeur. ™ ™ Wenden Sie sich aber zuerst an Ihren Händler. Er wird es Ihnen mit Unterstützung danken. BEST.NR. BESCHREIBUNG PKZ1006 343mm x 178mm Luftschraube: Typhoon 3D PKZ1007 305mm x 222mm Luftschraube: Typhoon 3D...
-
Page 27: Parti Di Ricambio
Parti di ricambio Mantenete il Typhoon 3D PNP in ordine di volo! Richiedere la parti di ricambio al vostro negozio di fiducia o acqusitatele sul ™ ™ sito www.scorpio.it. Consigliamo tuttavia di rivolgervi al vostro negoziante che è sempre disponibile ad aiutarvi ed assistervi. CODICE DESCRIZIONE PKZ1006... - Page 28 Recambios ¡Asegúrese de mantener su Typhoon 3D PNP volando! En su tienda de modelismo local o a través de Horizon Hobby ™ ™ (www.horizonhobby.com) podrá obtener piezas de recambio. Pruebe primero en su tienda de modelismo local. ¡Si Ud. les apoya, siempre le responderán cuando lo necesite!
- Page 32 ® Helger Distibution Units 2-4, Ployters Road Staple Tye - Southern Way Harlow, Essex CM187NS ©2005 Horizon Hobby, Inc. www.parkzone.com Les produits ParkZone sont distribués par: ® AVIO & TIGER BP 27 – Rue des Pays Bas 84101 ORANGE Cedex ©2005 Horizon Hobby, Inc.
