Determine code representation

Corner marks

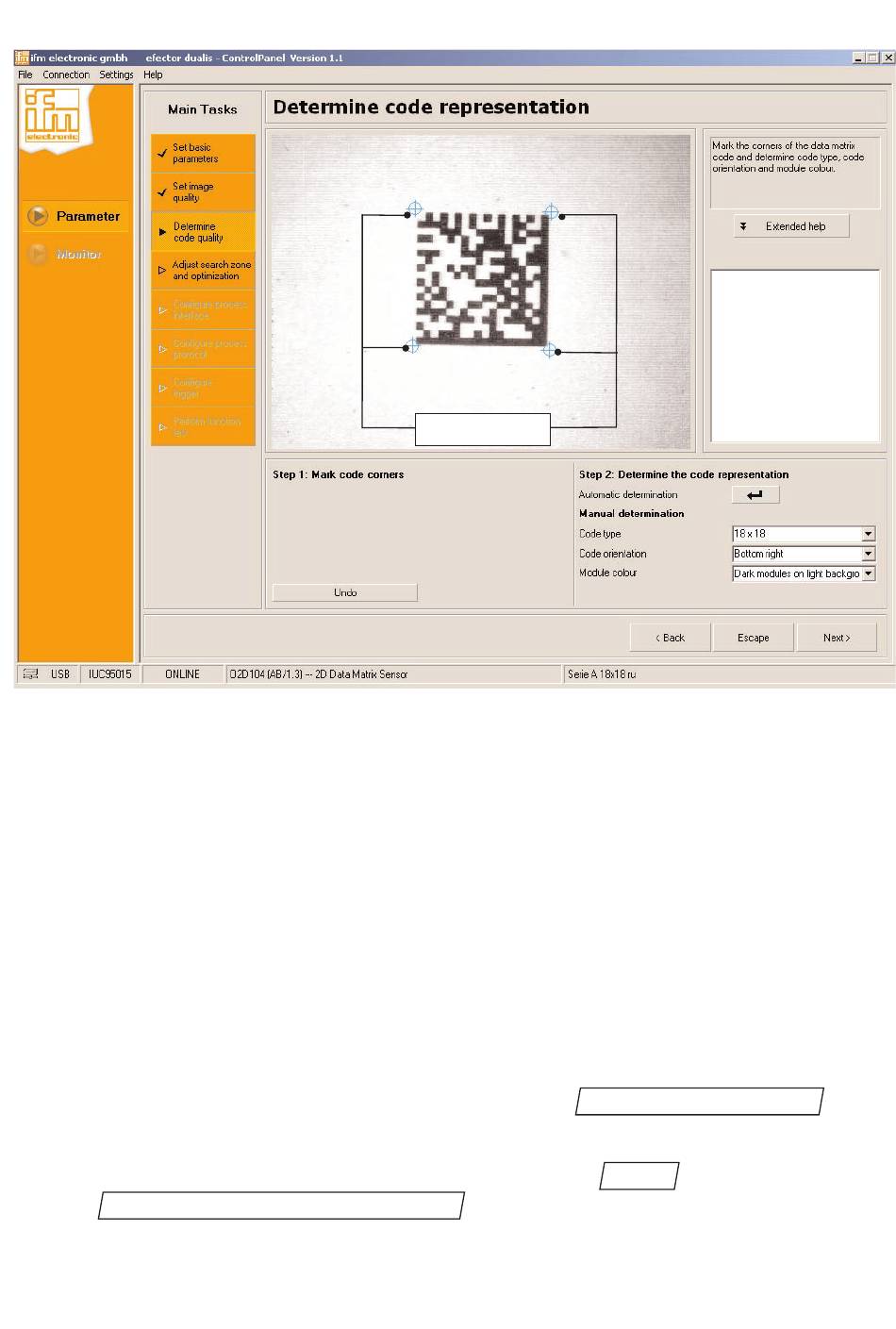

This step of parameter setting is split into two parts. First of all the corners of the Data
Matrix code have to be marked. To do so position the cursor cross-hairs on each of
the four corners and leftclick each position. Position marks will appear on the marked
corners. If necessary you can then select each position mark by double clicking using
the mouse and changing its position.
When the corners have been marked the reader will try automatically to determine
the code type, the code orientation (direction of the finder bar) and the module colour
of the code. You can correct the suggestions made by the unit in the corresponding
input fields, if necessary.
Info
When the existing configuration data file is edited no cursor cross-hairs will appear but the
position marks which had already been entered are displayed at once. Furthermore the code
Automatic determination
characteristics will only be automatically determined if the button
is activated.
Continue to the next step of parameter setting via the Next > button or by activat-
Adjust search zone and optimisation
ing the button for the next dialogue page.
