3.0 assembly of torch front end using the xr speedloader (Kit p/n 0558006628)
(en)
Use of a Speedloader, p/n 0558006164, will ease assembly of the torch front
end parts.

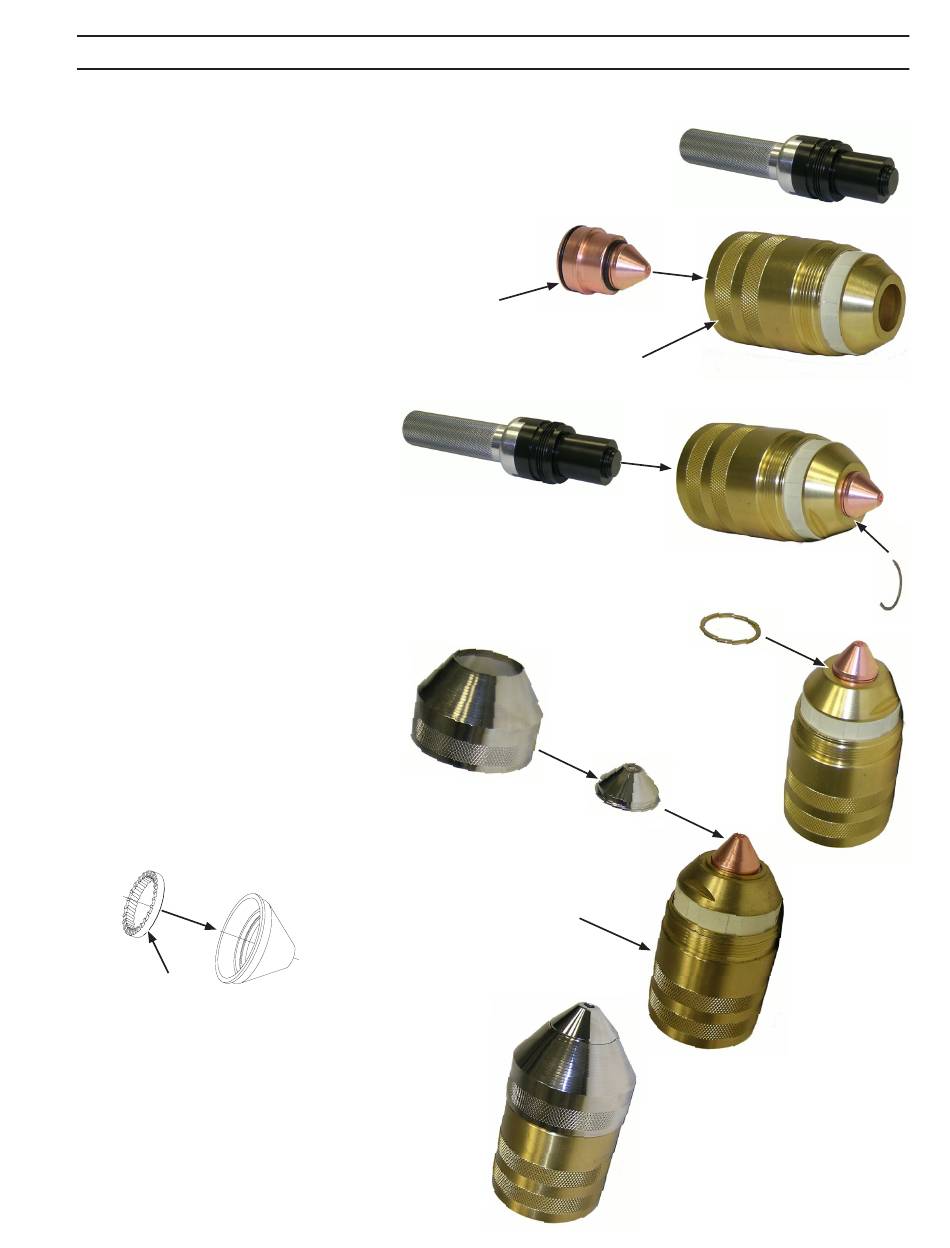

step 1. To use the Speedloader, first insert the
Nozzle into the Nozzle Retaining Cup.
step 2. Screw the Speedloader into the
Nozzle Retaining Cup to secure the
Nozzle.
step 3. Place the Retainer Clip (half ring, p/n
0558006626) into the groove of the
Nozzle. The Retainer Clip is retained by
the Spacer.
step 4. Remove the Speedloader. It is very im-
portant to remove the Speedloader to
ensure proper seating of the remain-
ing parts.
step 5. Place the Spacer, p/n 0558006625,
around the Retainer Clip. Stand assem-
bly on end as shown.
step 6. Insert the Diffuser into the Shield Cup.
Diffuser
step 7. Place the Shield Cup/Diffuser onto the
Nozzle Retaining Cup Assembly. The
Shield Cup/Diffuser will rest on the
Spacer.
step 8. Screw the Shield Cup Retainer onto
Nozzle Retaining Cup Assembly.
XR Nozzle
Nozzle Retaining Cup Assembly
Shield Cup
27
Nozzle Retaining Cup
Shield Cup Retainer
Shield Cup/Diffuser
englIsh
Retainer Clip
Spacer
