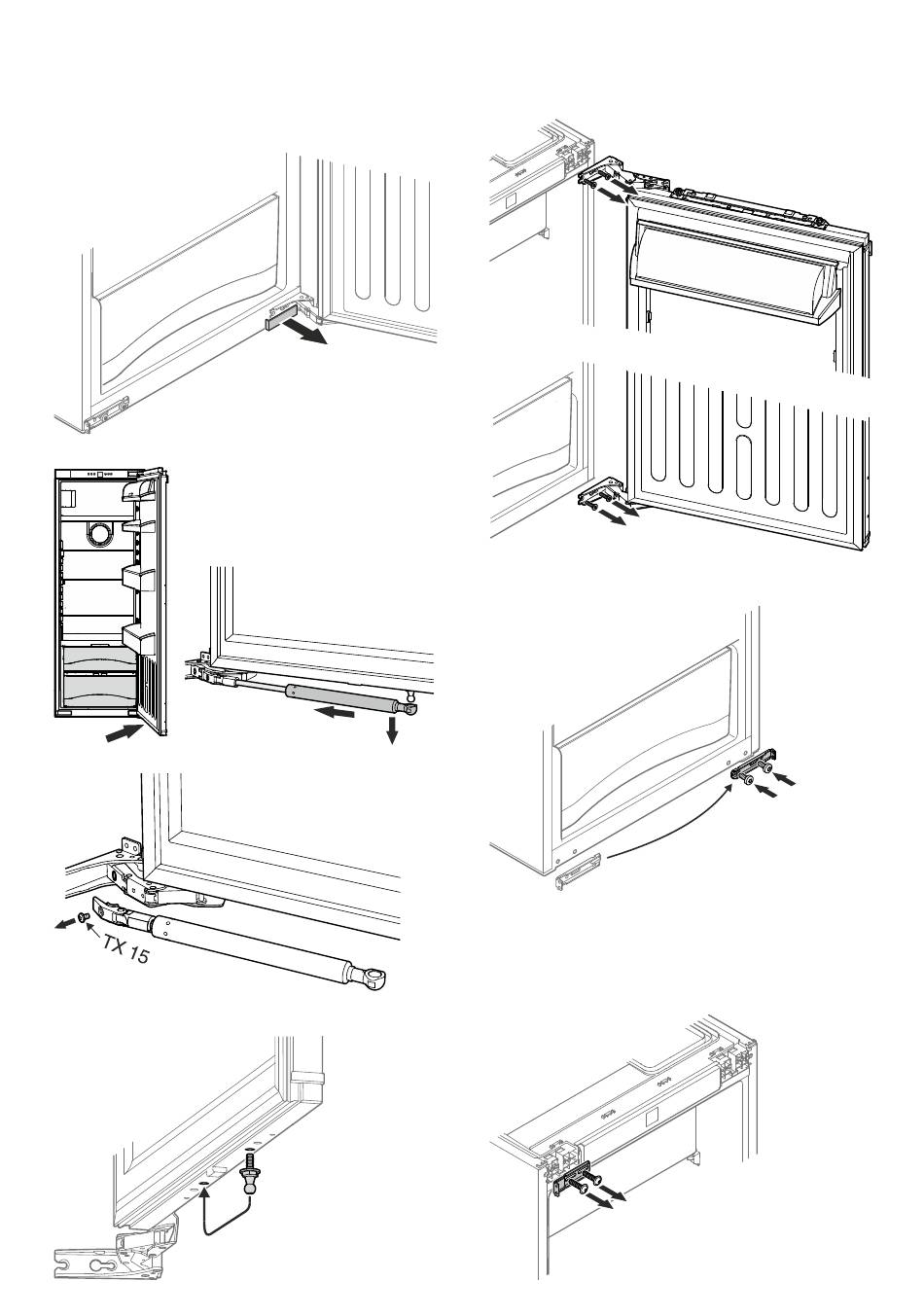

Changing over door hinges
Door hinges should only be changed by a trained expert.
Changing the door hinges must be done by two people.
1. Remove cover.
2. Pull soft stop mechanism downwards.
The soft stop mechanism will then
contract.
3.
3. Unscrew soft stop mechanism.
1.
2.
4.
4. Transfer ball stud to the opposite
side.
Important
The door must now be held secure by somebody.
5.
Note
Screw in the screws, push the bracket to the left as
far as it will go, then tighten the screws.
7.
7. Unscrew the top attachment
5. Remove screws.
Remove door.
6.
6. Transfer the bottom attach-
ment bracket.
bracket.
