1. Place the battery charger with mounting bracket A on the wall
at the desired position.
2. With a pencil, mark the middle hole B position.
3. Measure down 6½ inches from the pencil mark and drill one
mounting hole.
Install the bottom mounting screw C until there is an
4.
approximate 1/8-inch gap between the screw head and the wall.
5. Install the battery charger with mounting bracket onto the
bottom mounting screw.
6. Drill the remaining two mounting holes.
7. Install the two remaining mounting screws D through the
mounting bracket and into the wall. Tighten securely.
8. Plug the battery charger into the wall electrical outlet.
ON LED should illuminate.
24

5.7 Charging the Battery

Invacare recommends the battery be recharged daily to
prolong battery life.

Battery Indicator

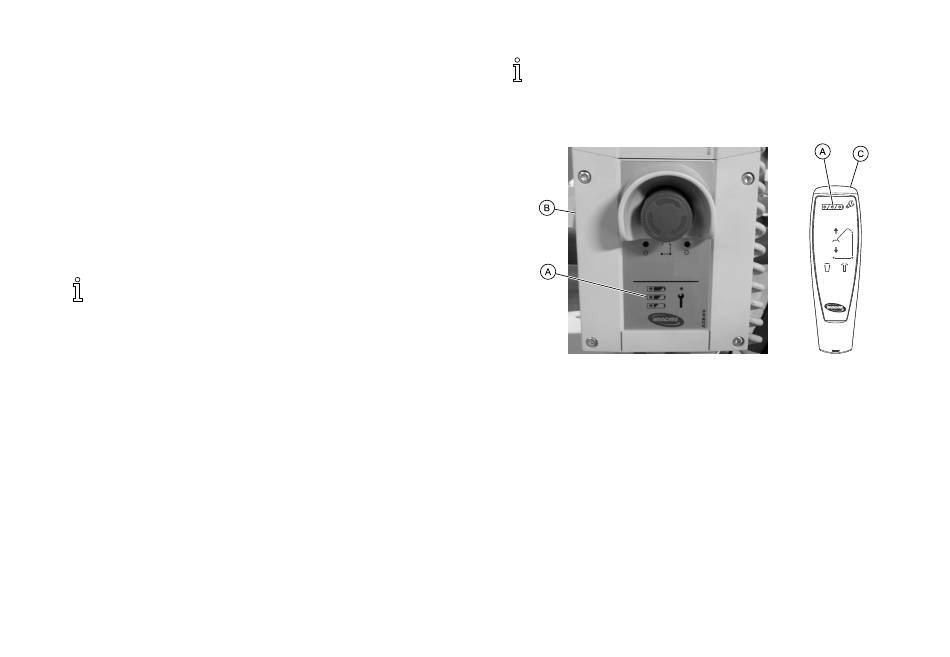

The battery indicator A is located on the control box B and on the
hand pendant C. The LEDs indicate the battery state:
