1.3.2 PROXIMITY READ ERS

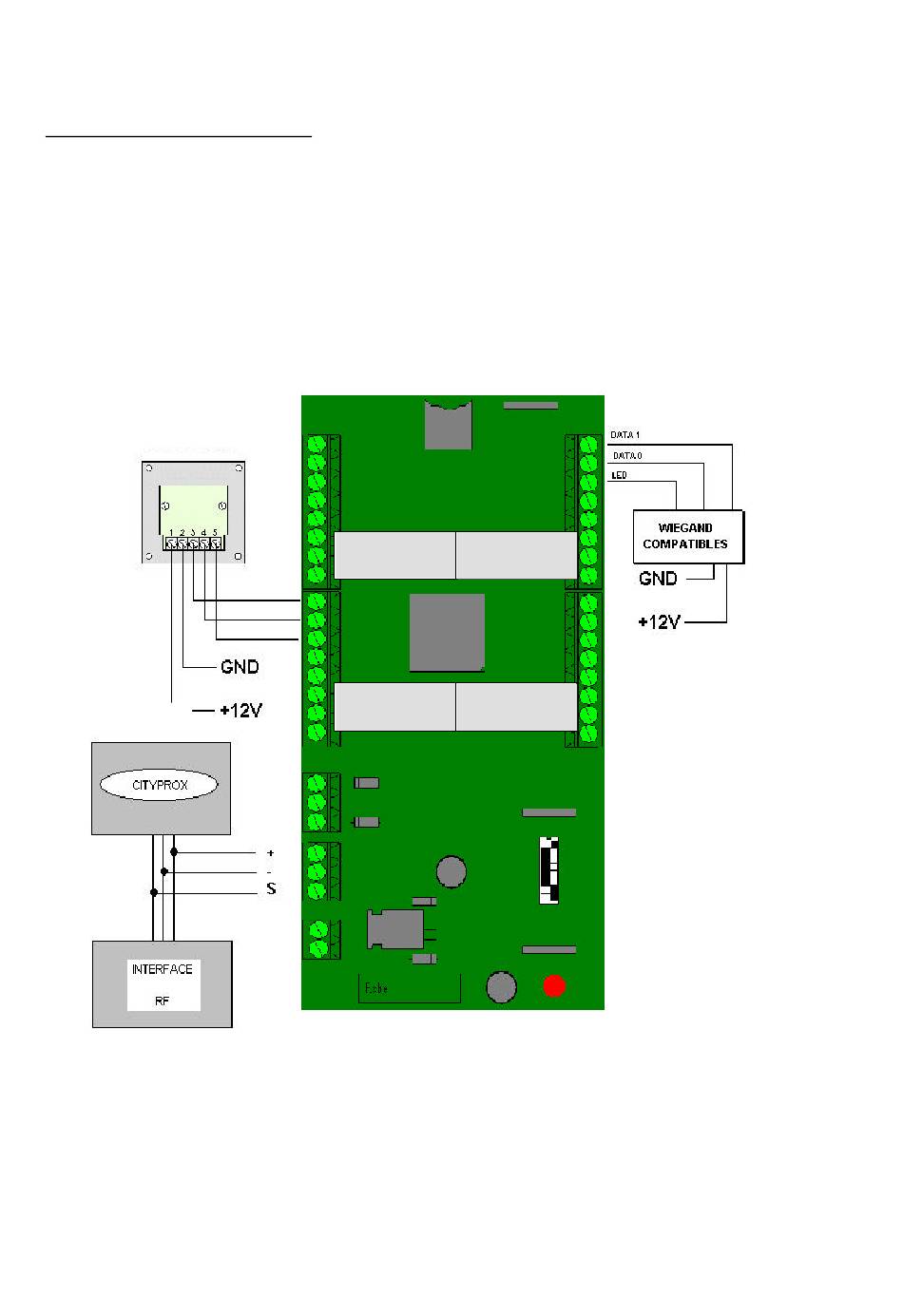

Cityprox – connect the readers to the terminals marked "+-S" located in the lower left part of the plate, where +
and – are the 12 v power supplied by the central and S, the input of the coded signal.
On the same terminals we can connect in parallel up to 4 readers and one INTERFACE / RF.
Steelprox / DC – Connect the readers to the terminals marked + and – for the power and the other three
terminals Clock, Data and Led.
Wiegand compatibles – Carry out the same process as for the Steelprox/DC readers
Do not place the readers at less than 20 cm from another reader.
STEELPROX/DC
CITYPROX/C4+
DOOR 1
DOOR 3
DOOR 2 DOOR 4
