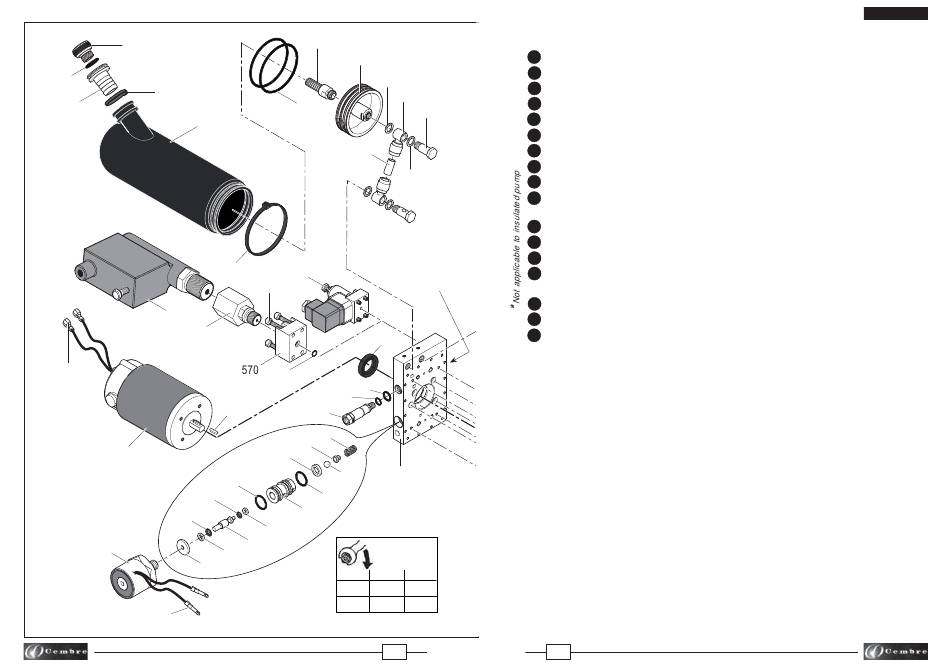

2. UNIT DESCRIPTION (Ref. to Fig. 9)
01
HYDRAULIC PUMP
02
OIL FILLER CAP ( 6800076)
CODE
03
ANCHOR RING FOR SHOULDER STRAP (
04
INTEGRAL HANDLE
05
MECHANICAL PRESSURE RELEASE BUTTON (
06
BATTERY RESIDUAL POWER DISPLAY
07
SOCKET FOR CONNECTING THE REMOTE HAND CONTROLLER
08
SOCKET FOR CONNECTING TO EXTERNAL 24 V DC SUPPLY
09
QUICK RELEASE FEMALE AUTOMATIC HYDRAULIC COUPLER (
09
QUICK RELEASE FEMALE AUTOMATIC HYDRAULIC COUPLER
for use with insulated pump only (
CODE
10
*
REMOTE HAND CONTROLLER (
CODE
11
-
N i
MH RECHARGEABLE BATTERY
12 -
SELF VENTILATING BATTERY CHARGER
13
( ft)
3 METRE 9.8
HIGH PRESSURE FLEXIBLE HOSE WITH QUICK RELEASE
MALE / FEMALE AUTOMATIC HYDRAULIC COUPLINGS
14
SHOULDER STRAP ( 6000354)
CODE
15
CANVAS BAG FOR STORING ACCESSORIES (
16
REMOTE PNEUMATIC HAND CONTROLLER
3. INSTRUCTION FOR USE
The pump is supplied with the battery completely discharged; before use, fully charge the
battery using the charger supplied (see § 3.5).
In order to extract the battery from its housing we recommend you lay the pump on its
back (see Fig. 2): press the release button downwards (1) remove the battery (2); to insert
it, simply slide it in along the guides until it locks.
3.1) Setting up
– Carry the pump using the integral handle (04) or the shoulder strap (14) attached to the
rings (03) (see Fig. 9).
– Position the pump on a fl at surface. There are two
- vertical , resting on its base.
- horizontal
, resting on its back where moulded ribs improve fi rmness and stability
(see Fig. 3).
Should it be necessary however, the pump's hermetically sealed hydraulic circuit allows
it to operate in any position.
– Remove "REMOTE CONTROLLER" protective cap, connect the remote hand controller
to the socket (07) (see Fig. 4): tighten the plug (90) by turning the bezel clockwise until it
locks.
– Check the high pressure hose (13), if abrasions are evident, or if the hose is kinked or
damaged, do not use; connect the hose to the hydraulic head, and to the corresponding
female coupler (09) on the pump (see Fig. 5).
4
ENGLISH
6040427)
CODE
6000476)
CODE
*
6060122)
CODE
,
6060130)
2596112)
,
220 - 240 V / 50-60 Hz ( 2596100)
CODE
*
2593309)
CODE
,
for use with insulated pump only ( 2596113)
CODE
stable work
positions recommended:
