Functions of the thread-tapping machine

3.1

Overview / accessories / description

3.1.1

Overview, thread-tapping machine

Overview, control elements (> see front fold-out page):
1 Pipe cutter
2 Thread-tapping jaws
3 Internal deburrer
4 Tool carriage
3.1.2

Overview, automatic thread-tapping head

Overview, control elements (> see front fold-out page):
10 T-handle
11 Locking lever
12 Selector pin
3.1.3

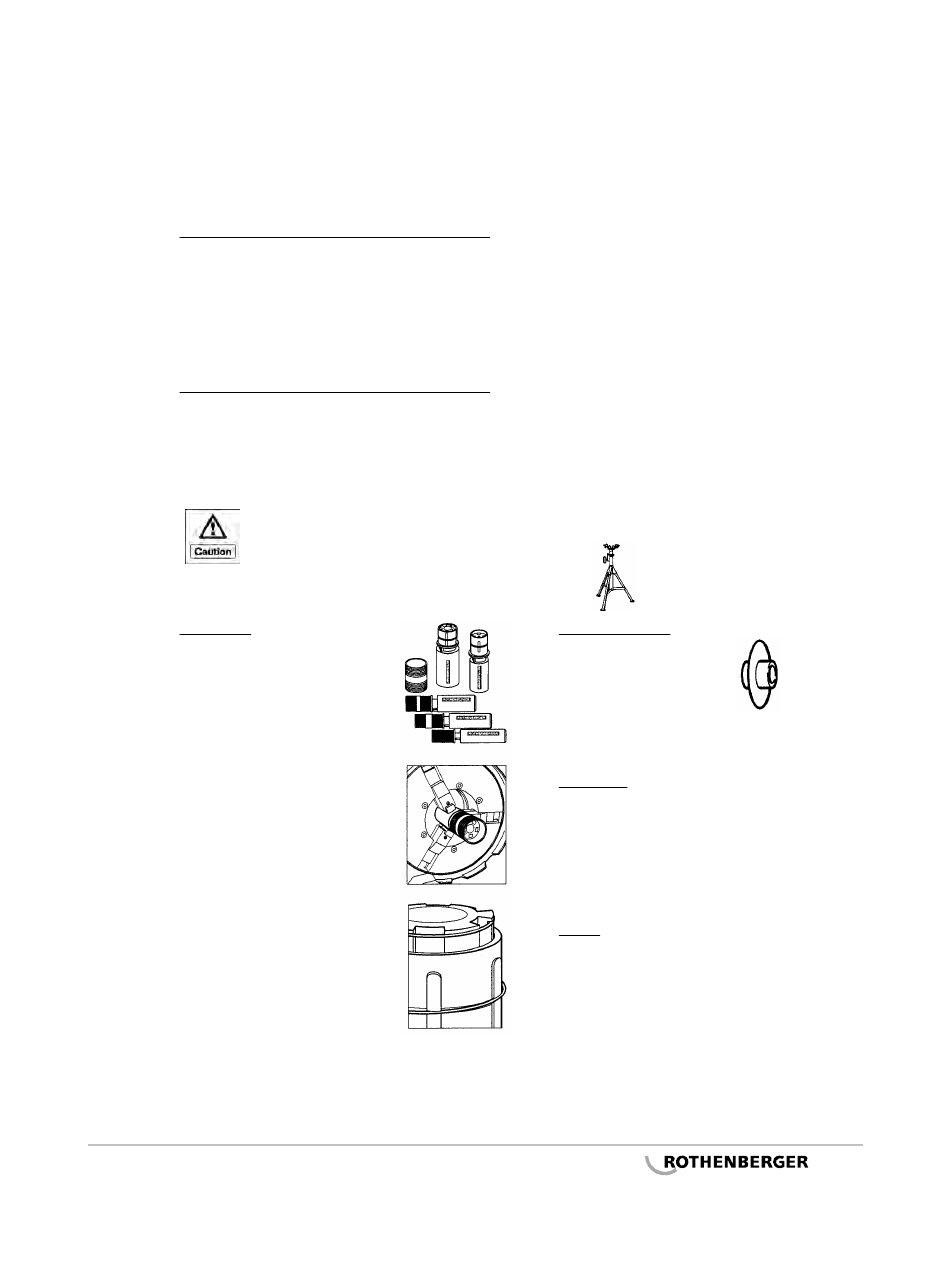

Accessories

Use only suitable accessories recommended by ROTHENBERGER Werkzeuge GmbH!
Pipe stand, Height-adjustable, with ball guide, for pipes up to 6"
NIPPEL MAX
For internally clamping
short pipe sections
manufacturing
nipples and double nipples
size 1/2"...2",
Recycling pipe waste pieces
saves time and money
automatic fast clamping
and centring of the
pipe pieces for right-hand
and left-hand thread
for fast, rational working,
automatic release after
completion of the nipple,
hardened, ground
clamping jaws
- NIPPEL MAX-Set, complete in sheet
steel carrying case
1/2" • 3/4" • 1" • 1 1/4"• 1 1/2"
- Nipple holder
1/2" • 3/4" • 1" • 1 1/4" • 1 1/2" • 2"
- Sheet steel case
- Plastic inlay
5 Oil drainage screw
6 Feeder hand wheel
7 Centring chuck
8 Clamping chuck
13 Selector block
14 Cam plate
15 screw
Spare cutting wheel
D=41 mm, L=19 mm, DA=9 mm
hardened special steel for
für machine type
- PANDA 40, PANDA 90
- PISET 3 SG, No. 6
- SUPERTRONIC 2S, 3S, 4S, 2SE,
3SE, 4SE, ROPOWER 50 R
RONOL SYN
High-performance thread-tapping fluid
mineral oil-free, synthetic-based specially
developed and approved for drinking
water and sanitary installation.
100 % water-soluble, physiologically
harmless.
- in 5-litre plastic canisters
RONOL
High-performance thread-tapping fluid
mineral oil-based, very well suited
for thread-tapping work on all
materials including stainless steel.
- in 5-litre plastic canisters
