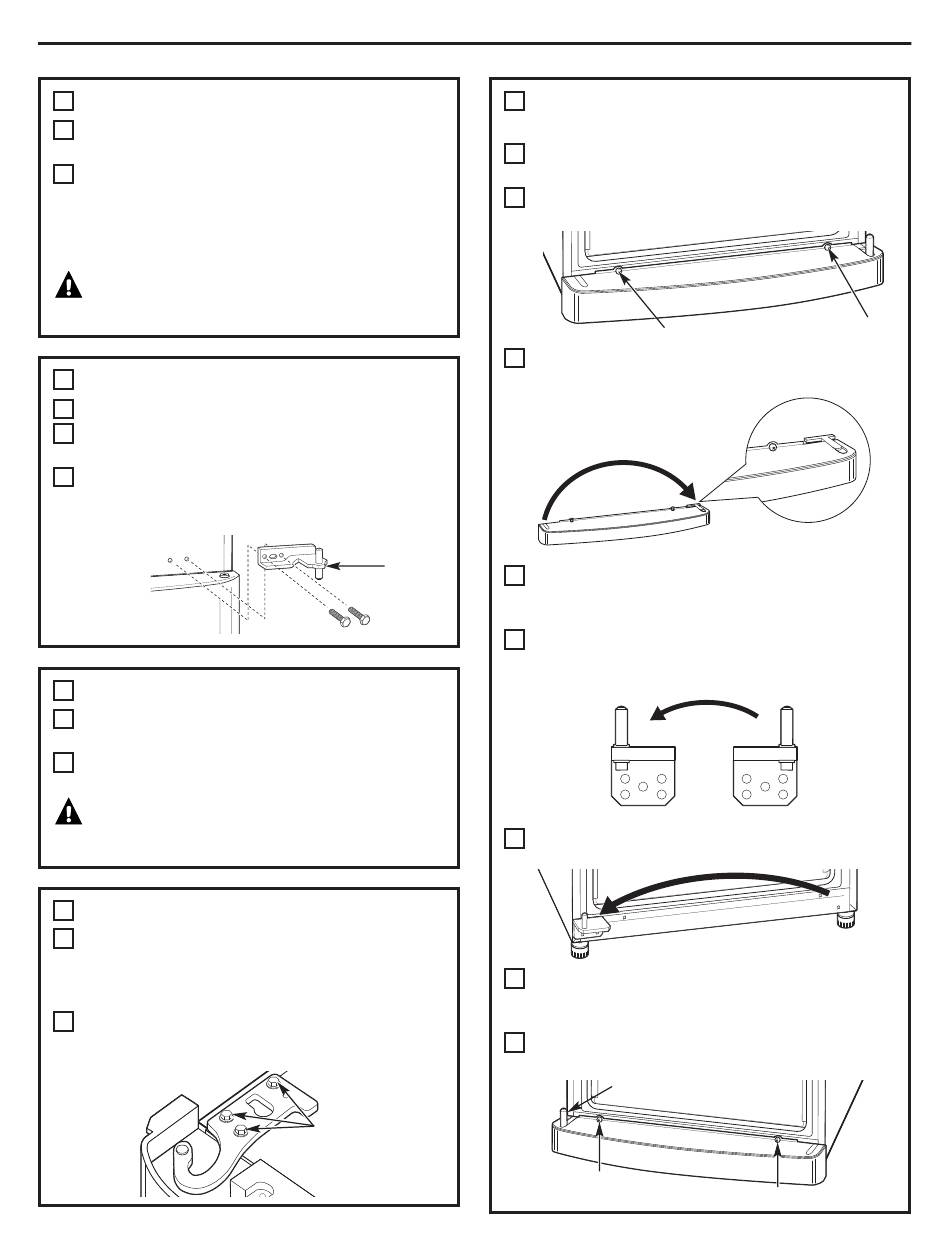

REMOVE THE REFRIGERATOR DOOR (CONT.)
1
Remove the tape and tilt the door away from the
F
cabinet. Lift the door off of the center hinge pin.
Set the door on a non-scratching surface with
G
the outside up.
NOTE: When removing the door, watch for washer(s)
between the center hinge and the bottom of the fresh food
door that may stick to the door. Do not lose them.
CAUTION:
Do not let the door drop to the floor.
This could damage the doorstop.
REMOVE THE CENTER HINGE
2
Tape the freezer door shut with masking tape.
A
Remove the hex screws securing the center hinge
B
to the cabinet using a 10 mm socket ratchet/driver.
Lift the center hinge off of the freezer door.
C
NOTE: When removing the hinge, watch for washer(s)
between the hinge and the door. Do not lose them.
REMOVE FREEZER DOOR
3
Remove the tape and lift the door off
A
of the lower hinge.
B Set the door on a non-scratching surface with
the outside up.
CAUTION:
Do not let the door drop
to the floor. This could damage the doorstop.
TRANSFER TOP HINGE
4
A Using an adjustable wrench, remove the hinge
pin and washer(s) from the bottom of the hinge.
Turn the hinge over and reinstall the hinge pin
so it is on the bottom of the hinge.
B Reassemble the top hinge on the left side,
turning the screws just enough to hold the
hinge in place.
Installation Instructions
Center
Hinge
Hex Screws
Hex Screws
11
TRANSFER TOE KICK AND BOTTOM
5
HINGE
A Using a Phillips screwdiver, remove the screws
securing the toe kick to the cabinet.
Pull the toe kick to remove it from
B
the refrigerator.
Screw
Transfer the slide plate from the left side
C
and install it on the right.
D Using a 10 mm socket ratchet/driver, remove
the screws securing the bottom hinge to the
cabinet.
Using an adjustable wrench, remove the hinge
E
pin and washer(s) from the right side of the
bracket and install it on the left.
Install the bottom hinge on the left side
F
of the cabinet.
Place the toe kick back onto the front of the
G
refrigerator cabinet. The cutout will go around
the bottom hinge pin.
Secure the toe kick with the screws removed
H
earlier.
Bottom Hinge Pin
Screw
Screw
Screw
