SAFETY WARNINGS
BEFORE OPERATING OR INSTALLING THIS
PUMP, READ THIS MANUAL AND FOLLOW
ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
IMPORTANT:
READ THIS MANUAL BEFORE INSTALLING
OR OPERATING THE PUMP .
SAFETY
CAREFULLY READ THESE SAFETY MESSAGES
CAUTION
Review instructions before operating.
WARNING - ELECTRICAL PRECAUTIONS
All wiring, electrical connections, and system grounding must comply
with the National Electrical Code (NEC) and with any local codes and
ordinances. Employ a licensed electrician.
FOR DUAL VOLTAGE MOTORS:
Voltage change instructions are located on motor label or on wiring
access cover.
WARNING - RISK OF ELECTRICAL SHOCK
• Have an electrician provide electrical power to motor.
• A ground fault interrupter (GFI) protected circuit is recommended for use
with any electrical device operating near water.
• For recommended cable size see Table 2.
• Motor must be grounded and terminal cover in place to reduce electrical
shock hazard.
• Keep motor operating area as dry as possible.
• Always disconnect power before servicing.
• Not investigated for use in swimming pool areas.

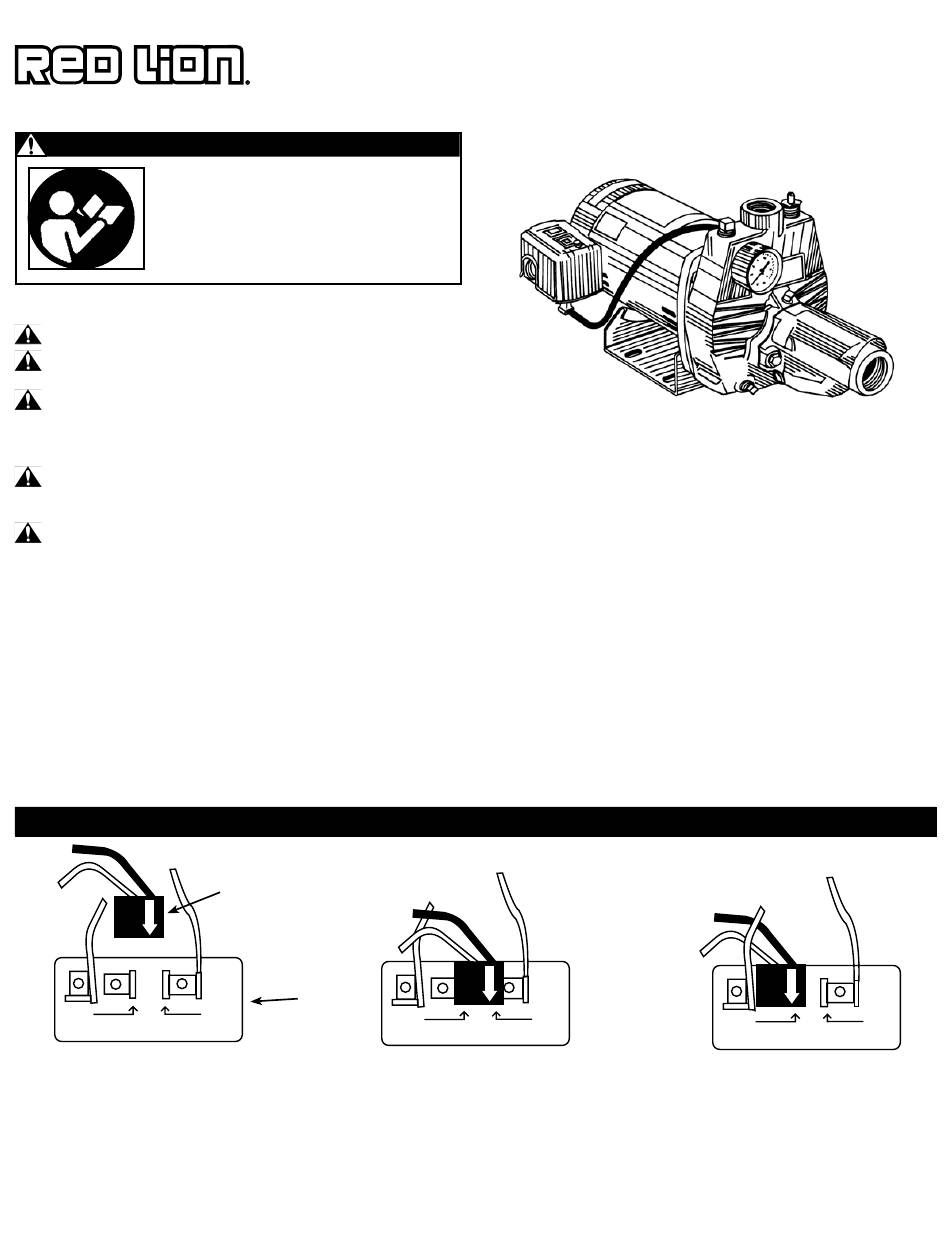

#1
230
In #1, the motor's switch is shown before
the black voltage change device is pressed
down onto the voltage terminals.
NOTE: DO NOT move white lead wires on L1 & L2.
SELF-PRIMING CONVERTIBLE
VOLTAGE WIRING INSTRUCTIONS
voltage
change
device
terminal
board
115
In #2, the motor's switch is set for 115V.
The black voltage change device is
pressed down onto both terminals with the
white arrow point on the voltage change
device pointing directly to the 115V arrow
point on the terminal board.
JET PUMPS
.
#2 - 115V
115
230
1
#3 - 230 V
230
In #3, the motor's switch is set for 230V.
The black voltage change device is
pressed down onto only one terminal
with the white arrow point on the voltage
change device pointing directly to the
230V arrow point on the terminal board.
115
