P. O. Box 12010
Oklahoma City, OK 73157-2010
Ph/Tél/Tel: 888.956.0000
Fax/Téléc: 405.947.8720
www.RedLionProducts.com
INTRODUCTION
EN
This instruction sheet provides you with the information required to safely
own and operate your product. Retain these instructions for future reference.
The product you have purchased is of the highest quality workmanship and
material, and has been engineered to give you long and reliable service. This
product has been carefully tested, inspected, and packaged to ensure safe
delivery and operation. Please examine your item(s) carefully to ensure that no
damage occurred during shipment. If damage has occurred, please contact
the place of purchase. They will assist you in replacement or repair, if required.
READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING
TO INSTALL, OPERATE, OR SERVICE YOUR PRODUCT. KNOW THE
PRODUCT'S APPLICATION, LIMITATIONS, AND POTENTIAL HAZARDS.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY
INFORMATION. FAILURE TO COMPLY WITH THESE INSTRUCTIONS
COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
SAFETY wArningS
BEForE opErATing or inSTAlling ThiS pump, rEAd ThiS mAnuAl
And Follow All SAFETY rulES And opErATing inSTrucTionS.
SAFETY
cArEFullY rEAd ThE SAFETY mESSAgES in ThiS mAnuAl And
on ThE pump.
cAuTion
Review instructions before operating.
wArning - ElEcTricAl prEcAuTionS
All wiring, electrical connections, and system grounding must comply
with the National Electrical Code (NEC) and with any local codes and
ordinances. Employ a licensed electrician.
wArning - riSK oF ElEcTricAl ShocK
• Have an electrician provide electrical power to the motor plug receptacle.
• Always disconnect plug from power source before handling.
• This product is furnished with a three prong plug for grounding,
connect only to properly grounded receptacle.
• Do not under any circumstances remove ground plug.
• Keep electric plug dry.
• Do not lift pump using cord.
• Not investigated for use in swimming pool area.
• A ground fault interrupter (GFI) protected circuit is recommended for
use with any electrical appliance operating in or near water.
• Do not run pump dry.
ELECTRICAL SAFETY TIPS
1) Never make adjustments with the power connected. Always disconnect your
pump from the electrical outlet before beginning any service procedures.
2) Do not stand in damp area when operating or servicing the pump.
Always wear rubber boots when you must unplug the pump from the
power supply. Because of possible electric shock, always be aware of
others in proximity of pump during operation.

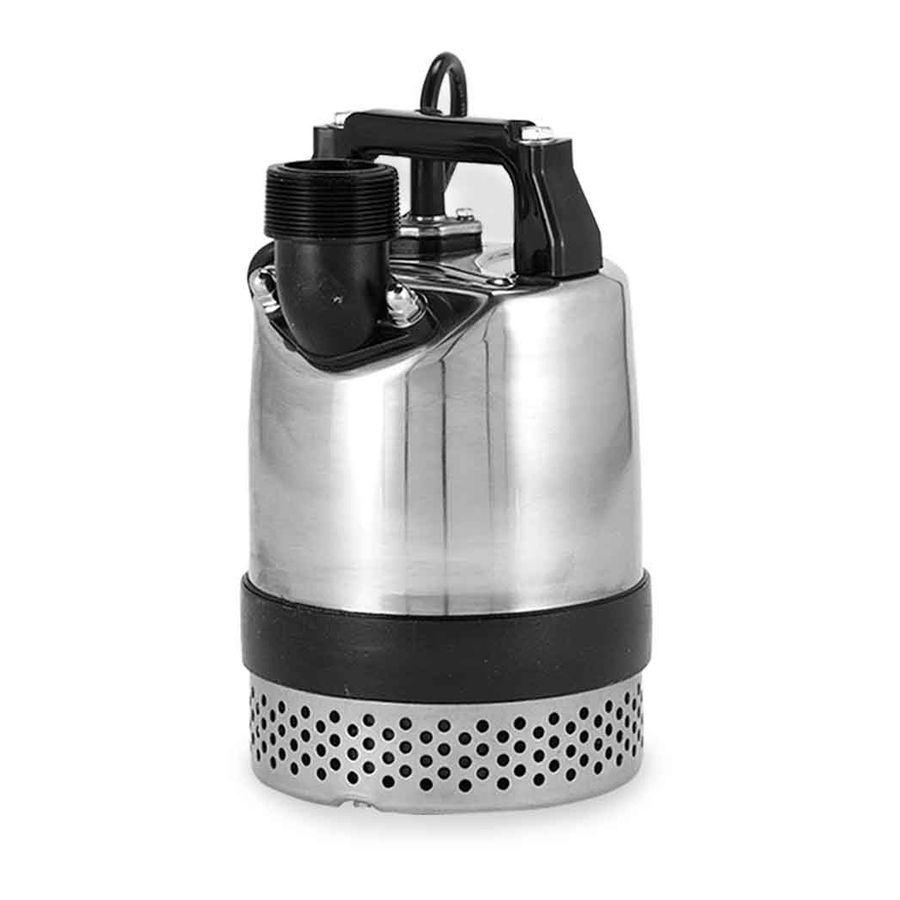

SuBmErSiBlE
dEwATEring pumpS
pompES cEnTriFugES
SuBmErSiBlES
rl50con
WARNING
3) Do not put your finger into the fuse socket - it could be fatal.
4) Never remove the round pin from your plug; this is the ground and is
there for your safety.
ApplicATion
These pumps are designed for continuous duty with stable
operating performance to carry dirty or clean water, for drainage
and irrigation purpose. Also, the maximum solids size must not be
greater than the pump capability. This pump is for use with water
only, NOT FOR USE IN EFFLUENT OR SEWAGE APPLICATIONS!
NOT TO BE INSTALLED IN LOCATIONS CLASSIFIED AS HAZARDOUS IN
ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE (ANSI/NFPA).
INSTALLATION
Before installation, check your local electrical and plumbing codes. Proper
safety precautions should be followed as per OSHA requirements. These
regulations are for your safety.
1) location:
The pump should be located on a solid level foundation.
a) Do not suspend pump from electrical cord.
b) Do not suspend pump from discharge pipe.
c) Keep pump inlet screen clear.
d) Pump can be suspended by pump handle
e) The
pump
piping
against freezing temperatures.
2) wArning - riSK oF ElEcTricAl ShocK
All connections must be made into a grounded outlet. A ground fault
interrupter (GFI) protected circuit is recommended for use with any
electrical appliance operating in or near water.
Make sure the lone voltage and frequency of the electrical current supply
match the specifications printed on the pump nameplate. The ground
terminal on the plug is provided for your protection. Do not remove.
Plug the pump cord into a grounded service and connect the
discharge piping, your pump is then ready for operation. If an
extension cord must be used, refer to NEC code for proper gauge
size. An undersized extension cord will cause damage to the pump
and motor.
and
system
must
be
protected
1
