OWNER'S MANUAL
C C C C Cast Iron Sump Pumps a a a s s t t I I r r o o n n S S u u m m

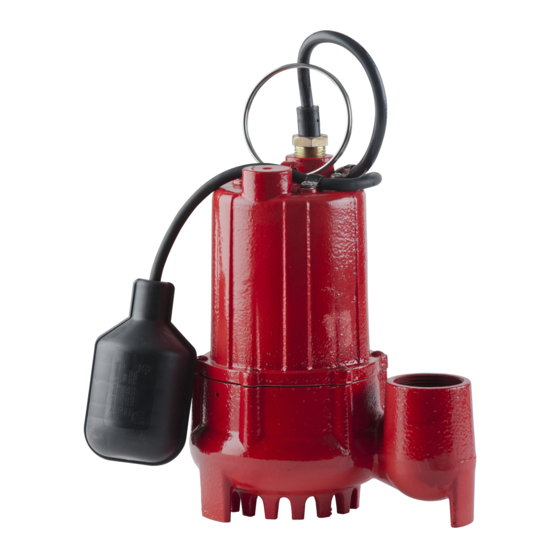

This submersible pump is for use in basins or lift stations and is suit-
able for pumping clear water and other non-explosive, non-corrosive
liquids. Do not use the pump in applications where sewage or any
other debris (gravel, sand, floating debris, etc.), abrasives, or corro-
sives are present.
The pump motor is equipped with an automatic resetting thermal
protector, and may restart unexpectedly. Thermal Protector tripping is
an indication of motor overloading or overheating, which can be
caused by application issues such as an obstructed pump impeller,
float stuck in the ON position, pump running dry, pump air-locked,
pump short cycling, excessively high or low voltage supply, or possi-
bly the pump, motor, bearings, or seal have reached the end of their
useful life.
This product is covered by a Limited Warranty for a period of 3 years from the date of original purchase by
the consumer. For complete warranty information, refer to www.redlionproducts.com, or call Technical
Support for a printed copy.
Specifications
Model Item Number
RL-SC33T
RL-SC33V
RL-SC50T
RL-SC50V
Model
RL-SC33T
RL-SC33V
RL-SC50T
RL-SC50V
p p P P umps
HP
14942744
1/3
14942745
14942746
1/2
14942747
Gallons/Liters per Hour @ Height (Head)
5 ft (1.5m) 10 ft (3 m)
3000 / 11356 2460 / 9312
3840 / 14536 3000 / 11356
Volts Amps
4.3
115
5.3
15 ft (4.5 m)
1860 / 7041
2220 / 8404
Table of Contents
INSTALLATION- - - - - - - - - - - - - - - - - - - - - - - - - -4
Typical Installation - - - - - - - - - - - - - - - - - - -4
Physical Installation- - - - - - - - - - - - - - - - - - -5
Electrical Connections - - - - - - - - - - - - - - - - -6
OPERATION TESTING - - - - - - - - - - - - - - - - - - - - -6
MAINTENANCE - - - - - - - - - - - - - - - - - - - - - - - - -7
Periodic Service - - - - - - - - - - - - - - - - - - - - -7
Cleaning Impeller and Volute - - - - - - - - - - - -9
Troubleshooting - - - - - - - - - - - - - - - - - - - - -9
Replacement Parts - - - - - - - - - - - - - - - - - - -9
EN EN
ON Levels
13" (33.0 cm)
7" (17.8 cm) 2.25" (5.7 cm)
13" (33.0 cm) 5" (12.7 cm)
7" (17.8 cm) 2.25" (5.7 cm)
20 ft (6.1 m)
960 / 3634
1440 / 5451
English English English English
Off Levels
5" (12.7 cm)
Shut Off
25 ft (7.6 m)
28 ft (8.5 m)
