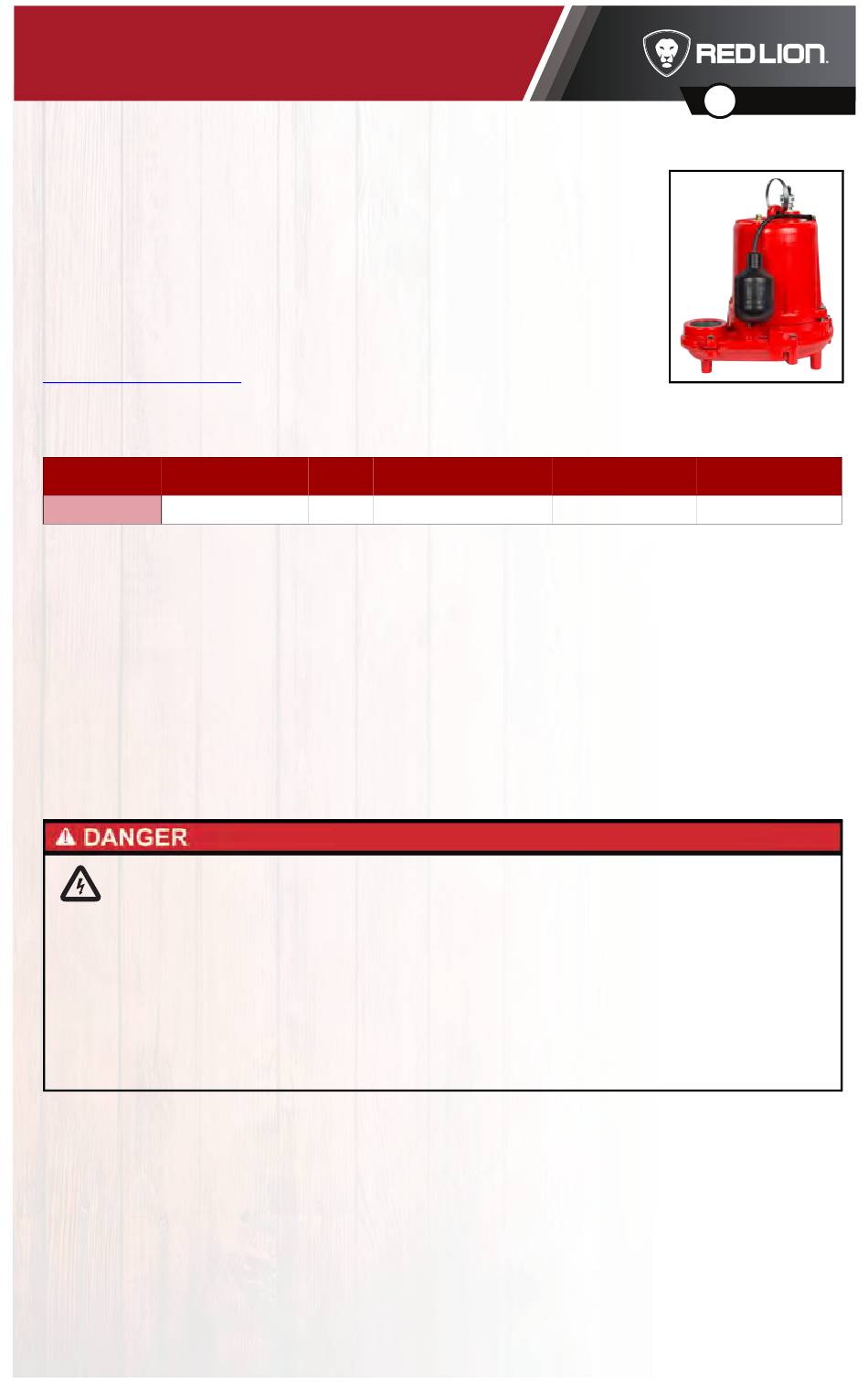

OWNER'S MANUAL
RL-Series Heavy Duty Cast Iron Submersible Effluent Pumps
This pump is intended for use in effluent applications where the total head
required (including pipe friction losses) does not exceed the pump's maximum
capability. Do not pump mud, cement, tar, abrasives, or chemicals. This pump is
equipped with a 2-inch NPT (51 mm) discharge and designed to handle up to
inch diameter solids.
This product is covered by a Limited Warranty for a period of 1 year from the date
of original purchase by the consumer. For complete warranty information, refer to
www.redlionproducts.com.
Specifications
Model Item Number
RL31EA
SAFETY INSTRUCTIONS
This equipment should be installed and serviced by technically qualified personnel who are familiar with
the correct selection and use of appropriate tools, equipment, and procedures. Failure to comply with
national and local electrical and plumbing codes and within Red Lion recommendations may result in elec-
trical shock or fire hazard, unsatisfactory performance, or equipment failure.
Know the product's application, limitations, and potential hazards. Read and follow instructions carefully to
avoid injury and property damage. Do not disassemble or repair unit unless described in this manual.
Failure to follow installation or operation procedures and all applicable codes may result in the following
hazards:
Risk of death, personal injury, or property damage due to explosion,
fire, or electric shock.
• Do not use to pump flammable, combustible, or explosive fluids such as gasoline, fuel oil, kerosene, etc.
• Do not use in explosive atmospheres or hazardous locations as classified by the NEC, ANSI/NFPA70.
• Do not handle a pump or pump motor with wet hands or when standing on a wet or damp surface, or in water until the unit
is unplugged or electrically disconnected.
• When a pump is in its application, do not touch the motor, pipes, or water until the unit is unplugged or electrically discon-
nected.
• If the power disconnect is out of sight, lock it in the open position and tag it to prevent unexpected application of power.
• If the disconnect panel is not accessible, contact the electric company to stop service.
HP
620040 1/3
Discharge
2" NPT
EN
English
11
-
/
16
Volts Amps
115 10.4
