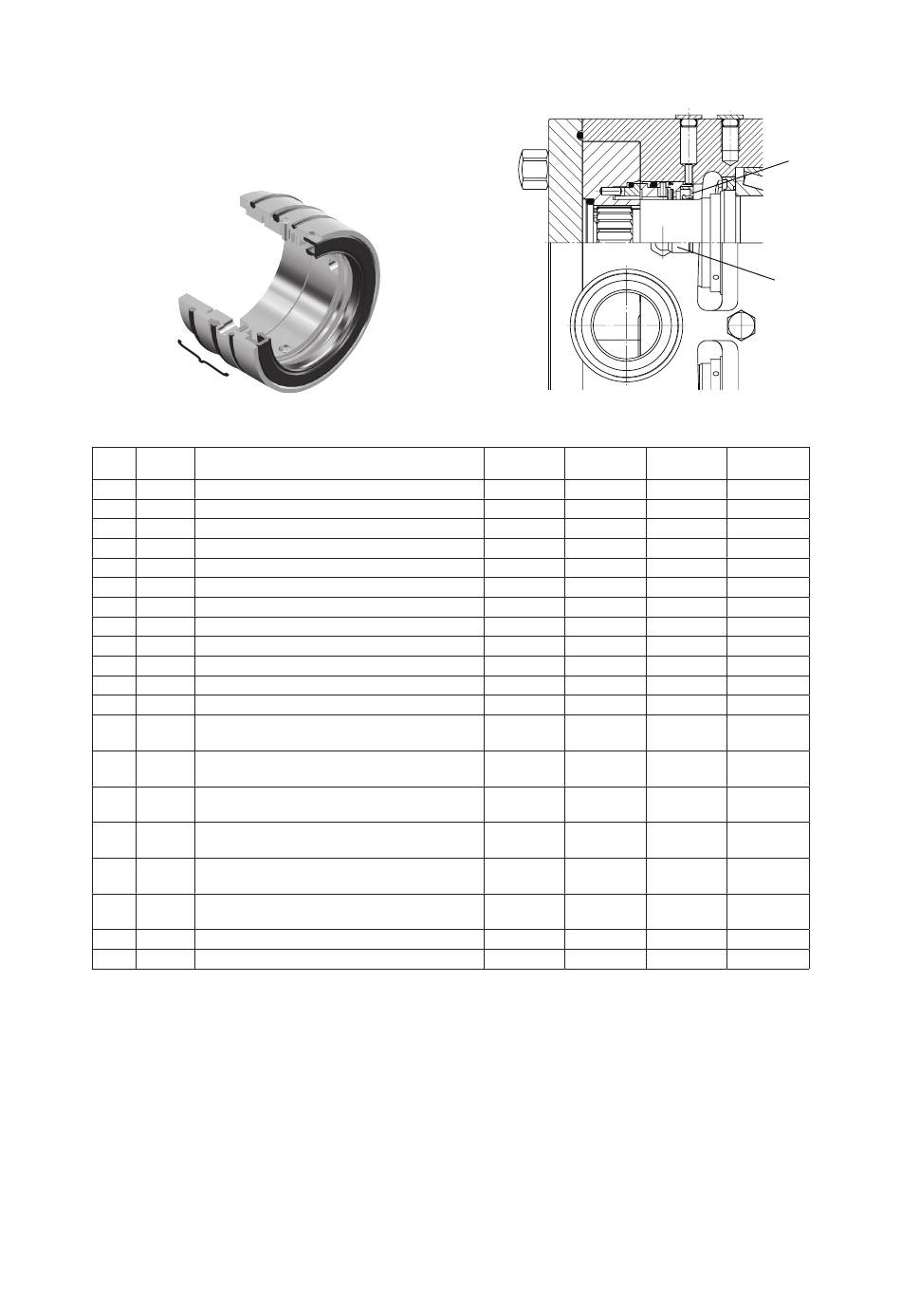

Garniture Mécanique Simple Avec Rinçage - Johnson Pump SPXFLOW TopWing Manuel D'instructions

7.2.2 Garniture mécanique simple avec rinçage
Remarque : Seuls les joints toriques FDA
sont homologués pour
les applications alimentaire
0100
Qté./
Rep. Désignation
pompe
0100 2 Garniture mécan. simple SiC/SiC/FPM
0100 2 Garniture mécan. simple SiC/C/FPM
0100 2 Garniture mécan. simple SiC/SiC/EPDM
0100 2 Garniture mécan. simple SiC/C/EPDM
0100 2 Garniture mécan. simple SiC/SiC/Chemraz
0100 2 Garniture mécan. simple SiC/C/Chemraz
0100 2 * Garniture mécan. simple SiC/SiC/Kalrez
0100 2 * Garniture mécan. simple SiC/C/Kalrez
0100 2 Garniture mécan. simple SiC/SiC/FPM-FDA
0100 2 Garniture mécan. simple SiC/C/FPM-FDA
0100 2 Garniture mécan. simple SiC/SiC/EPDM-FDA
0100 2 Garniture mécan. simple SiC/C/EPDM-FDA
Garniture mécan. simple SiC/SiC/EPDM-FDA,
0100 2
USP Classe VI, 3-A, AFO
Garniture mécan. simple SiC/C/EPDM-FDA,
0100 2
USP Classe VI, 3-A, AFO
Garniture mécan. simple SiC/SiC/FPM-FDA,
0100 2
USP Classe VI, 3-A, AFO
Garniture mécan. simple SiC/C/FPM-FDA,
0100 2
USP Classe VI, 3-A, AFO
Garniture mécan. simple SiC/SiC/Perfluor-FDA,
0100 2
USP Classe VI, 3-A, AFO
Garniture mécan. simple SIC/C/Perfluor-FDA,
0100 2
USP Classe VI, 3-A, AFO
0890 2 Joint à lèvre NBR/SS
0950 4 Goujon coudé
Kit de joints toriques pour garniture mécanique simple avec rinçage, voir 7.3.2
* Kalrez est une marque déposée de DuPont Performance Elastomers.
76
TW1 TW2
3.94755.11 3.94751.11 3.94759.11 3.94763.11
3.94754.11 3.94750.11 3.94758.11 3.94762.11
3.94823.12 3.94825.12 3.94827.12 3.94829.12
3.94824.12 3.94826.12 3.94828.12 3.94830.12
® 3.94831.12 3.94833.12 3.94835.12 3.94837.12
3.94832.12 3.94834.12 3.94836.12 3.94838.12
®
3.94839.12 3.94841.12 3.94843.12 3.94845.12
®
3.94840.12 3.94842.12
®
3.94755.16 3.94751.16 3.94759.16 3.94763.16
3.94754.16 3.94750.16 3.94758.16 3.94762.16
3.94823.16 3.94825.16 3.94827.16 3.94829.16
3.94824.16 3.94826.16 3.94828.16 3.94830.16
3.94823.24 3.94826.24 3.94827.24 3.94829.24
3.94823.25 3.94826.25 3.94827.25 3.94829.25
3.94823.26 3.94826.26 3.94827.26 3.94829.26
3.94823.27 3.94826.27 3.94827.27 3.94829.27
3.94823.28 3.94826.28 3.94827.28 3.94829.28
3.94823.29 3.94826.29 3.94827.29 3.94829.29
0.2234.905 0.2234.906 0.2234.907 0.2234.908
3.94983.11 3.94983.11 3.94983.11 3.94983.11
TW3 TW4
3.94844.12 3.94846.12
A.0500.303 – IM-TW/15.00 FR (10/2011)
0890
0950
