Operation / Fonctionnement / Funcionamiento / Funcionamento
ineLazer IV 130
L
Traceur de ligne airless LineLazer IV 130
Para las señalizadoras LineLazer IV 130
Kit de marcação de baias Airless
(de alta pressão) LineLazer IV 130
- For the application of line striping materials -
- Para la aplicación de materiales trazalíneas -
- Para aplicação de materiais de marcação de baias -
3300 psi (22.8 MPa, 228 bar) Maximum Working Pressure
Pression de service maximum 3300 psi (22,8 MPa, 228 bars)
Presión máxima de trabajo de 3300 psi (22,8 MPa, 228 bar)
Pressão de trabalho máxima de 3300 psi (22,8 MPa, 228 bar)
257780
287025
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Lire tous les avertissements et les instructions
de ce manuel. Conservez ces instructions
Lea todas las advertencias e instrucciones en
este manual. Guarde estas instrucciones
Leia todos os avisos e instruções deste man
ual. Guarde estas instruções.
Airless Line Striper
HS
- Pour tracer des lignes à la peinture -
HS
HS
HS
ti13901a
313775E
EN FR ES PT

Publicité

Table des Matières
loading

Sommaire des Matières pour Graco LineLazer IV 130 HS

  • Page 1 Operation / Fonctionnement / Funcionamiento / Funcionamento ineLazer IV 130 Airless Line Striper Traceur de ligne airless LineLazer IV 130 Para las señalizadoras LineLazer IV 130 Kit de marcação de baias Airless 313775E (de alta pressão) LineLazer IV 130 EN FR ES PT - For the application of line striping materials - - Pour tracer des lignes à...
  • Page 2 Contents Warnings ....... . . 3 Tip Selection ......11 Component Identification .
  • Page 3 Warnings Warnings The following are general warnings related to the safe setup, use, grounding, maintenance and repair of this equipment. In the text of this manual, the exclamation point symbol alerts you to a warning and the hazard symbol refers to specific risks. Refer back to these General Warnings pages.
  • Page 4 Check equipment daily. Repair or replace worn or damaged parts immediately. • Do not alter or modify equipment. • Use equipment only for its intended purpose. Call your Graco distributor for information. • Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces. •...
  • Page 5 Mises en garde Mises en garde Les mises en garde suivantes sont des mises en garde de sécurité générales relatives à la configuration, utilisation, maintenance et réparation de ce matériel. Dans ce manuel, le point d’exclamation est une mise en garde et le symbole de danger fait référence à...
  • Page 6 Ne pas modifier cet équipement. • N’utiliser ce matériel que pour l’usage auquel il est destiné. Pour plus de renseignements appelez votre distributeur Graco. • Écarter les flexibles et câbles électriques des zones de circulation, des bords coupants, des pièces en mouvement et des surfaces chaudes.
  • Page 7 Advertencias Advertencias A continuación se ofrecen advertencias en general relacionadas con la seguridad de la puesta en marcha, utilización, conexión a tierra, mantenimiento y reparación de este equipo. En el texto de este manual, el símbolo acompañado de una exclamación le indica que se trata de una advertencia y el símbolo de peligro se refiere a un riesgo específico.
  • Page 8 • Utilice el equipo únicamente para el fin para el que ha sido destinado. Si desea información, pón gase en contacto con su distribuidor Graco. • Desvíe las mangueras de zonas de tráfico intenso, de curvas pronunciadas, de piezas movibles y superficies calientes.
  • Page 9 Advertências Advertências Seguem-se advertências gerais relativamente à instalação, utilização, ligação à terra, manutenção e reparação deste equipamento com segurança. Ao longo do texto deste manual, o ponto de exclamação alerta-o para uma advertência e o símbolo de perigo refere-se a riscos específicos. Consulte estas páginas de advertências gerais. Serão incluídas mais advertências específicas relativamente a procedimentos, quando aplicáveis.
  • Page 10 Não altere nem modifique este equipamento. • Utilize o equipamento apenas para o fim a que se destina. Solicite informações ao seu distribuidor Graco. • Afaste os tubos flexíveis e cabos de áreas com movimento, pontas afiadas, peças em movimento e superfícies quentes.
  • Page 11 Tip Selection / Sélection des buses / Selección de la boquilla / Selecção do bico Tip Selection / Sélection des buses / Selección de la boquilla / Selecção do bico (cm) (cm) (cm) (cm) LL5213* 2 (5)  LL5215* 2 (5) ...
  • Page 12 Component Identification / Identification des composants / Identificación de los componentes / Identificação dos Componentes Component Identification / Identification des composants / Identificación de los componentes / Identificação dos Componentes Model 257780 ti13919a ti24905a English Français Español Português Fluid Pressure Gauge Manomètre produit Manómetro de fluido Indicador de pressão do produto...
  • Page 13 Setup / Installation / Puesta en marcha / Instalação Setup / Installation / Puesta en marcha / Instalação Approximate Fill Level ti3308a ti3309a ti3307a Ground sprayer with Each time your spray and Check engine oil level. Fill fuel tank. grounding clamp during store, fill throat packing Add SAE 10W-30 Setup and Cleanup.
  • Page 14 Setup / Installation / Puesta en marcha / Instalação ti3431a ti6470a Safe Range (cold) ti3430a Check hydraulic oil level. Add Graco hydraulic oil, Set pump valve OFF. If removed, install Grade 46, 169236 (5 gallon/ 18.9 liter) or 207428 strainer.
  • Page 15 Setup / Installation / Puesta en marcha / Instalação ti3310a ti6473a ti3441a PAINT FLUSH CAUTION • Minimum hose size Turn prime valve down. Place siphon tube set in grounded metal pail partially filled allowable for proper Turn pressure control with flushing fluid. Attach ground wire to pail and to true sprayer operation is counterclockwise to earth ground.
  • Page 16 Startup / Démarrage / Puesta en marcha / Colocação em serviço Startup / Démarrage / Puesta en marcha / Colocação em serviço ti3312a ti3313a ti3315a ti5250a Start engine. Move fuel valve to open. Move choke to closed. Set throttle to fast. Set engine switch ON.
  • Page 17 Startup / Démarrage / Puesta en marcha / Colocação em serviço ti3317a ti3316a ti5251a Pull starter cord. After engine starts, move choke to Set throttle to desired setting. open. Tirer sur le cordon du lanceur. Dès que le moteur tourne, mettre le Régler l’accélérateur en position volant du starter sur ouvert.
  • Page 18 Startup / Démarrage / Puesta en marcha / Colocação em serviço ti6472a ti3442a ti3322a FLUSH ti6471a ti3442a Set pump valve ON. Increase pressure Disengage gun trigger Hold gun against - Hydraulic motor is now enough to start hydraulic safety. grounded metal flushing active - motor stroking.
  • Page 19 Startup / Démarrage / Puesta en marcha / Colocação em serviço ti3325a ti3324a Paint Flush ti6638a ti3327a ti3322a SwitchTip and Guard Assembly Inspect fittings for leaks. Do not stop Place siphon tube in paint Engage trigger safety. Use Insert SwitchTip in tip leaks with your hand or a rag! If leaks pail.
  • Page 20 Gun Placement / Mise en place du pistolet / Colocación de la pistola / Preparação da pistola Gun Placement / Mise en place du pistolet / Colocación de la pistola / Preparação da pistola ti6550a ti3331a ti3330a ti6549a Install Gun Position Gun Select Gun Insert gun into gun holder.
  • Page 21 Gun Placement / Mise en place du pistolet / Colocación de la pistola / Preparação da pistola English Français Español Português One line Une ligne Una línea Uma linha One gun curb Bordure avec un pistolet Flanco con una pistola Uma pistola para passeio 313775E...
  • Page 22 Gun Placement / Mise en place du pistolet / Colocación de la pistola / Preparação da pistola Clearing Tip Clogs / Déboucher la buse / Despeje de las obstrucciones de la boquilla / Desobstrução do bico ti3355a ti3347a Release trigger, engage Engage gun trigger gun trigger safety.
  • Page 23 Pressure Relief / Décompression / Descompresión / Descompressão Pressure Relief / Décompression / Descompresión / Descompressão ti3324a ti6473a ti6470a ti3441a ti3305a PAINT ti10796b Ground sprayer with Set pump valve Turn pressure to lowest setting. Engage gun trigger grounding clamp. OFF. Turn engine Trigger gun to relieve pressure.
  • Page 24 Cleanup / Nettoyage / Limpieza / Limpeza Cleanup / Nettoyage / Limpieza / Limpeza TI3375A TI3371A ti6269a FLUSH Perform Pressure Relief, Remove guard and Unscrew bowl, remove Clean filter, guard and page 23. SwitchTip. filter. Assemble without SwitchTip in flushing filter.
  • Page 25 Cleanup / Nettoyage / Limpieza / Limpeza ti6472a ti3310a ti3417a PAINT ti6471a PAINT FLUSH ti3442a Remove siphon tube set Set pump valve on. Turn prime valve Hold gun against paint horizontal. from paint and place in pail. Disengage gun flushing fluid. Use water trigger safety.
  • Page 26 Cleanup / Nettoyage / Limpieza / Limpeza ti6473a PAINT FLUSH TI3383A ti6470a TI3377A FLUSH 1 -2 MIN. 15-30 SEC. Move gun to flushing pail, Turn prime valve down 10 Raise siphon tube 11 Turn pump valve OFF. hold gun against pail, and allow flushing above flushing fluid trigger gun to thoroughly...
  • Page 27 Cleanup / Nettoyage / Limpieza / Limpeza TI3388A TI3390A FLUSH Pump Armor ti6271a ti2895a CAUTION If flushing with water, flush 12 Make sure plastic center 13 Wipe sprayer, hose and 14 Clean tip, guard and again with mineral spirits, tube is tightened securely. gun with a rag soaked in gasket with a soft bristle or Pump Armor, to leave...
  • Page 28 Cleanup / Nettoyage / Limpieza / Limpeza 313775E...
  • Page 29 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
  • Page 30: Graco Information

    For patent information, see www.graco.com/patents. TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor. All written and visual data contained in this document reflects the latest product information available at the time of publication.
  • Page 31: Repair - Parts List

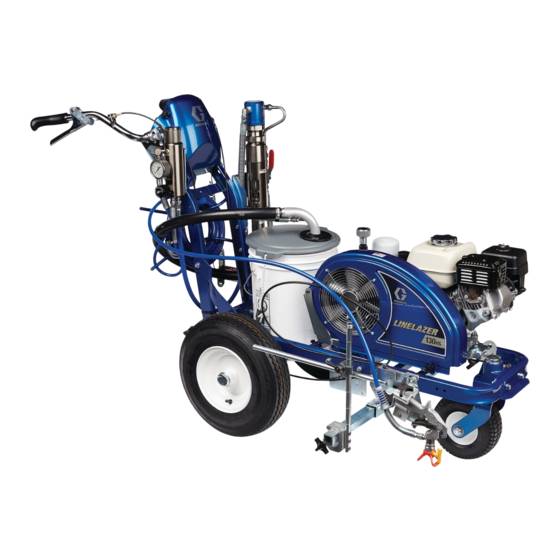

    Repair - Parts List ™ LineLazer 313776D Airless Paint Striper For application of line striping materials. For professional use only. Not for use in explosive atmospheres. 3300 psi (22.8 MPa, 228 bar) Maximum Working Pressure ✔ ✔ 257780 ✔ ✔ ✔...
  • Page 32: Table Des Matières

    Notes ........33 Graco Standard Warranty ....34...
  • Page 33: Warnings

    Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.
  • Page 34 Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.
  • Page 35: Tip Selection

    Tip Selection Tip Selection (cm) (cm) (cm) (cm) ✔ LL5213* 2 (5) ✔ LL5215* 2 (5) ✔ LL5217 4 (10) ✔ LL5219 4 (10) ✔ LL5315 4 (10) ✔ LL5317 4 (10) ✔ LL5319 4 (10) ✔ LL5321 4 (10) ✔...
  • Page 36: General Repair Information

    General Repair Information General Repair Information SAE O-Ring Installation 1. Unscrew lock nut to touch fitting. 1. Keep all screws, nuts, washers, gaskets, and 2. Lubricate o-ring (A). electrical fittings removed during repair proce- dures. These parts are not normally provided with ti5414a replacement assemblies.
  • Page 37: Maintenance

    YEARLY OR 2000 HOURS: Replace hydraulic oil and If you suspect the spray tip or hose is completely filter element with Graco hydraulic oil 169236 (5 gal- clogged, or that pressure has not been fully relieved lon/18.9 liter) or 207428 (1 gallon/3.8 liter) and filter ele- after following the steps above, VERY SLOWLY loosen ment 246173;...
  • Page 38: Troubleshooting

    Set pump valve OFF. Turn pressure down. Turn engine OFF. Pry rod up or down until hydraulic motor shifts. * Check hydraulic fluid level often. Do not allow it to become too low. Use only Graco approved hydraulic fluid, page 7. 313776D...
  • Page 39 Troubleshooting Problem Cause Solution Displacement pump Piston ball is not seating. Service piston ball. Manual 311845. operates, but output is Piston packings are worn or damaged. Replace packings. Manual 311845. low on upstroke Displacement pump Strainer (34e) is clogged. Clean strainer. operates but output is low O-ring in pump is worn or damaged.
  • Page 40 Intake line to pump inlet is not tight. Tighten. Hydraulic motor is worn or damaged. Bring sprayer to Graco distributor for repair. Large pressure drop in fluid hose. Use larger diameter or shorter hose. The sprayer overheats. Paint buildup on hydraulic components.
  • Page 41: Hydraulic Pump

    11. Loosen set screw (102) and remove remote pres- N•m). Install oil filter (199); tighten 3/4 turn after sure control cable (12). gasket contacts base. Fill with Graco hydraulic oil, page 7. 12. Remove eight screws (184) and washers (101), res- ervoir cover (237), filter assembly (A) and gasket 12.
  • Page 42 Hydraulic Pump TI6551a 313776D...
  • Page 43: Fan Belt

    Fan Belt Fan Belt Removal 5. Remove belt from fan pulley (86) and fan pulley (87a). Installation 1. Thread belt (143) around fan pulley (87a) and fan pulley (86). 1. Relieve pressure, page 7. 2. Lower engine (185) to put tension on belt. 2.
  • Page 44: Engine

    Engine Engine NOTE: All service to the engine must be performed by 6. Remove four screws (189), washers (114), washers an authorized HONDA dealer, (170) and nuts (118) and remove rocker plate, dampeners (59) and washers (114) from engine. Removal Installation 1.
  • Page 45: Hydraulic Motor Yoke

    (249); and retainer clip (194), page 18. 7. Slide piston rod/hydraulic motor cap assembly (A) 6. Start engine and operate pump for 30 seconds. Turn from hydraulic motor cylinder (69). engine OFF. Check hydraulic oil level and fill with Graco hydraulic oil, page 7. 313776D...
  • Page 46 Hydraulic Motor Yoke WHVW KROH ti13918a 313776D...
  • Page 47: Oil/Filter Change

    1. Install drain plug (195). Apply a light coat of oil to oil filter gasket and install oil filter (199). Tighten oil fil- ter 3/4 turn after gasket contacts base. 2. Fill with 1.25 gallons (4.73 liters) of Graco hydraulic ti2271a oil 169236 (5 gallon/20 liter) or 207428 (1 gallon/3.8 liter) 3.
  • Page 48: Displacement Pump

    . 8 Push pin (249) into hole. Push retaining spring (194) into groove. ti13905a ti13908a 5. F . 9. Loosen jam nut. Unscrew pump. . 11 3. F . 12. Fill packing nut with Graco TSL. ti13906a ti13809a . 12 313776D...
  • Page 49: Parts

    Parts Parts LineLazer IV 130 Parts Page 34 Parts Page 30 Parts Page 34 Parts Page 28 Parts Page 36 Parts Page 26 Parts Page 28 ti13917a 313776D...
  • Page 50 Parts ti13910a 313776D...
  • Page 51 Parts LineLazer IV 130 Part Description Ref Part Description 237686 CLAMP, grounding assy 112 111145 KNOB, pronged 245225 HOSE, 3/8 in. x 50 ft 117 110837 SCREW, flange, hex 287623 FRAME, linestriper (painted) 120 255162 WHEEL, pneumatic 287417 HANDLE 121 111040 NUT, lock, insert, nylock, 5/16 287622 SUPPORT, handle, painted...
  • Page 52 Parts LineLazer IV 130 WLD Detail 8 Ref 161 ti13911a 313776D...
  • Page 53 Parts LineLazer IV 130 Part Description 224052 BRACKET, support gun 248157 GUN, flex, basic, includes guard & tip 287570 KIT, holder, gun 287569 HOLDER, gun 15F214 LEVER, actuator 15F209 STUD, pull, trigger 15F210 STUD, pivot 15F211 STUD, cable 102040 NUT, lock 245798 HOSE, 1/4 x 7 ft 245733...
  • Page 54 Parts Parts - LineLazer IV 130 (Engine Control Wiring Diagram) 185a ti13916a 72 (1*,1( *5281' (1*,1( 2)) 6:,7&+ 124 259 313776D...
  • Page 55 Parts LineLazer IV 130 Part Description 245103 VALVE, drain 193709 SEAT, valve 193710 SEAT, valve 116424 NUT, cap 114708 SPRING 244067 FILTER, fluid 245225 HOSE, 3/8 in. x 50 ft 114954 SWITCH, rocker 15s▲ 15Y608 LABEL, control 245226 HOSE, coupled, 3/8 in. 287417 HANDLE 196179 FITTING, elbow, street 15Y465 COVER, control...
  • Page 56 Parts Parts - LineLazer IV 130 ti13914a 313776D...
  • Page 57 15H953 MANIFOLD, adapter includes 213 15B063 LABEL, 193031 NUT, retaining 107210 SCREW, cap, socket head 117441 VALVE, ball 15B804 LABEL, Graco Logo 101566 NUT, lock 178179 WASHER, sealing 15F911 GUARD, pump rod 178207 BEARING, piston 106276 SCREW, cap, hex hd...
  • Page 58 Parts LineLazer IV 130 Detail 34 TI6493b 313776D...
  • Page 59 Parts LineLazer IV 130 Part Description Part Description 116919 FILTER, hydraulic, suction 288261 RAIL, belt 246173 FILTER, oil, spin on 248973 GUARD, belt, includes: 162, 193, 120981 SCREW, hex wash hd 214, 224, and 228 116967 SPRING, compression 15E476 BRACKET, retainer, motor 117284 GRILL, fan guard 287175 HOSE, hydraulic supply 117471 SCREW, 1/4-20 flat hd mach...
  • Page 60 Parts LineLazer IV 130 Detail A Detail A TI6492b 313776D...
  • Page 61 Parts LineLazer IV 130 Part Description Part Description 240942 SHAFT, fork 112776 WASHER, plain 240991 BRACKET, caster, front 112825 SPRING, Belleville 15G952 BRACKET, hub 113471 SCREW, cap, hex hd 287623 FRAME, linestriper, painted 132* 113484 SEAL, grease 181818 KNOB, pronged 133* 113485 BEARING, cup/cone 193528 ARM, detent 113962 WASHER, hardened...
  • Page 62: Technical Data

    Wetted parts........PTFE, Nylon, polyurethane, V-Max ™ UHMWPE polyethyl- ene, fluoroelastomer, acetal, leather, tungsten carbide, stainless steel, chrome plating, nickel-plated carbon steel, ceramic Accessories Must be purchased separately. GRACO-APPROVED HYDRAULIC OIL 169236 5 gallons (19 liters) 207428 1 gallon (3.8 liters) 313776D...
  • Page 63: Notes

    Notes Notes 313776D...
  • Page 64: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
