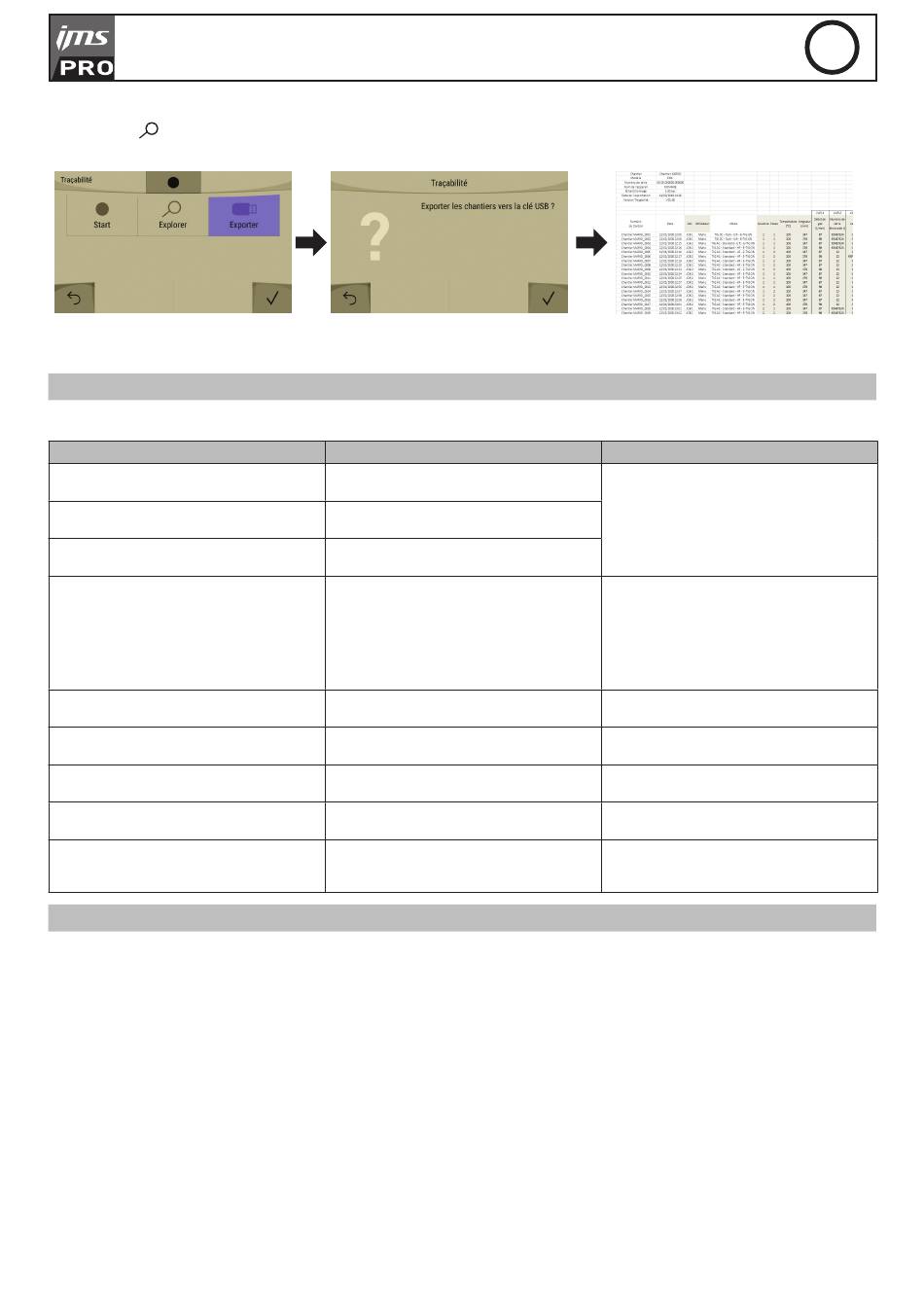

The «Explore» function allows you to access the list of work sessions created, sort them and also delete them.
The pictogram shows the details of each session with the following information: sampling frequency, number of recorded beads, total
welding time, welding current supplied, configuration of each bead (process, time stamp, welding time and welding U-I).
The transfer of this information is done by exporting the data to a USB key.
The CSV data can be processed using spreadsheet software (Microsoft Excel
ERROR MESSAGE, ANOMALIES, CAUSES AND SOLUTIONS
This device integrates a default management system. In the event of a failure, the following error messages may appear:
ERROR CODE / SYMPTOMS
OVERVOLTAGE FAULT
Check the electrical installation
UNDERVOLTAGE FAULT
Check the electrical installation
PHASE FAULT
Check the electrical installation
GENERATOR
Thermal protection
FAN
Fan failure
COOLING UNIT FAILURE
Cooling unit not detected
FAILURE DEBIT
Blocked cooling circuit
WATER LEVEL FAILURE
Check the water level
COLD GROUP
Thermal protection
WARRANTY
The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour).
The warranty does not cover:
• Transit damage.
• Normal wear of parts (eg. : cables, clamps, etc..).
• Damages due to misuse (power supply error, dropping of equipment, disassembling).
• Environment related failures (pollution, rust, dust).
In case of failure, return the unit to your distributor together with:
- The proof of purchase (receipt etc ...)
- A description of the fault reported.
52
TITANIUM 400 AC/DC
, Calc OpenOffice
®
CAUSES
Mains voltage out of tolerance.
Mains voltage out of tolerance.
The installation has a missing or unbalanced
phase
- Exceeding the duty cycle.
- Blocked air inlets.
The fan is not running at the right speed.
The cooling unit is not detected.
The debit is below the recommended minimum
level for water cooled torches.
The level is below the minimum
- Exceeding the duty cycle.
- Blocked air inlets.
, etc.).
®
SOLUTIONS
Have your electrical installation checked by an
authorised person. The voltage between the
3 phases must be between 340 Veff and 460
Veff.
- Wait for the indicator to turn off before resu-
ming welding.
- Observe the operating factor and ensure
good ventilation.
- The use of the optional dust filter (ref.
046580) reduces the duty cycle of the
machine.
Please disconnect the machine, check and
restart.
Check the connection between the cooling unit
and the appliance.
Check the continuity of the circulation of the
cooling liquid in the torch.
Fill the cooling unit's tank.
- Wait for the indicator to turn off before resu-
ming welding.
- Dust off the cooling unit by blowing air.
