ims PRO TITANIUM 400 AC/DC Mode D'emploi page 46

This JOB mode allows you to create, save, recall and delete JOBs.
QUICK LOAD – Reminder of the JOBs to the trigger out of welding.
The Quick Load is a JOB recall mode (20 max) excluding welding and possible only in TIG process.
From a Quickload list of previously created JOBs, JOB reminders are made by short pull of the trigger. All trigger modes (2T/4T/4T/4Tlog) and welding
modes (SPOT/STD/PLS) are supported.

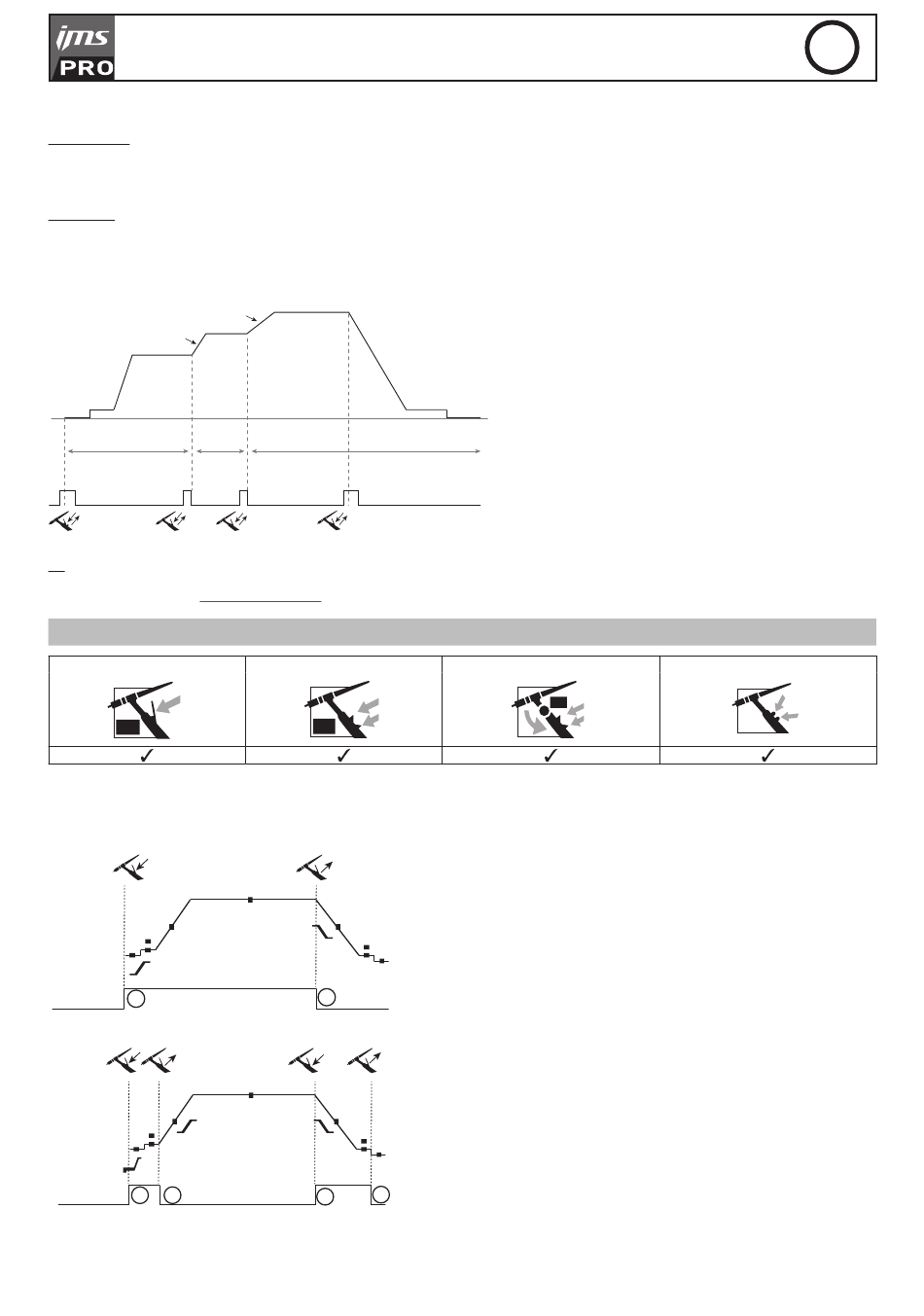

MULTIJOB – Reminder of the JOBs to the trigger in welding.
From a MultiJOB list of previously created JOBs, this chaining mode allows you to weld by chaining up to 20 JOBs without interruption.
When the mode is activated, JOB N°1 in the list is loaded and displayed. The trigger mode is forced in 4T.
During welding, this mode allows you to sequence the JOBs in the loaded list by briefly pressing the buttons on the torch.
Welding stops by pressing the buttons on the torch for a long time and once the welding cycle is complete, JOB N°1 is recharged for a future welding
sequence.
JOB 1 power surge
JOB 1
>0.5s <0.5s
C5
From a C5 list of 5 JOBs previously created, this simple automation mode from the Remote Control connection allows JOBs to be recalled via a PLC
(see note on the website - https://goo.gl/i146Ma).
COMPATIBLE TORCHES AND TRIGGER BEHAVIOURS
Trigger
L
For the 1 button torch, the button is called «main button».
DB
For the 2 buttons torch, the first button is called «main button» and the second button is called «secondary button».
2T MODE
P
t t
Main button
Main button T1
T1
4T MODE
t
t
Main button
T1 T2
Main button
T1 T2
4T MODE log
46
TITANIUM 400 AC/DC
JOB 2 power surge
JOB 2 JOB 3
<0.5s >0.5s
L
Double Button
DB
P
t
t
T2 T2
t
t
T3
T3
<0.5s <0.5s
<0.5s <0.5s
When the mode is activated, JOB N°1 in the list is loaded and dis-
played.
The recall of the JOBs in the sequence is in loop: when the last JOB
in the list is reached, the next one will be JOB N°1.
Welding is activated by pressing and holding the buttons on the
torch.
L
DB
Double Button + Potentiometer
T1 - The main button is pressed, the welding cycle starts (PreGas,
I_Start, UpSlope and welding).
T2 - The main button is released, the welding cycle is stopped
(DownSlope, I_Stop, PostGas).
For the double button torch and in 2T mode only, the secondary
button works like the main button.
T1 - The main button is pressed, the cycle starts at PreGas and
stops in the I_Start phase.
T2 - The main button is released, the cycle continues in UpSlope
and in welding.
T3 - The main button is pressed, the cycle switches to DownSlope
and stops in I_Stop.
T4 - The main button is released, the cycle ends with PostGas.
Nb : for torches, double button and double button with potentiome-
ter
=> command « up/welding current » and active potentiometer,
T4
T4
command «low » inactive.
>0.5s
>0.5s
P
EN
Up & Down
UP
Down
