Unitary Duct Split Unitary Duct Split
1) Strip the insulating layer at the end of the wire about 25mm off with a wire
striper.
2) Loosen the screw off on the wiring board of the air conditioning unit.
3) Shape with the pliers the end of the wire to a circle matching with the size of
the screw.
4) Let the screw go through the circle of the wire and then fix it on the wiring
board.
b. Wiring of the Multi-Core Wire
1) Strip the insulating layer at the end of the wire about 100mm off with a wire
striper.
2) Loosen the screw off on the wiring board of the air conditioning unit.
3) Fix a wiring terminal matching with the size of the screw to the end of the
multi-core wire with the crimpling pliers.
4) Let the screw go through the terminal of the multi-core wire and then fix it on
the wiring board.
WARNING!
①.If the power cord or the signal line is damaged, they must be replaced with the
dedicated one.
②.Prior to the wiring, please check the voltage marked on the nameplate and then
carries out the wiring following the wiring diagram.
③.The dedicated power cord must be used for the air conditioning unit and the
leakage current protection switch and air switch must be installed in case of the
overload condition.
④.The air conditioning unit must be earthed to prevent the hazard caused by the
failed insulation.

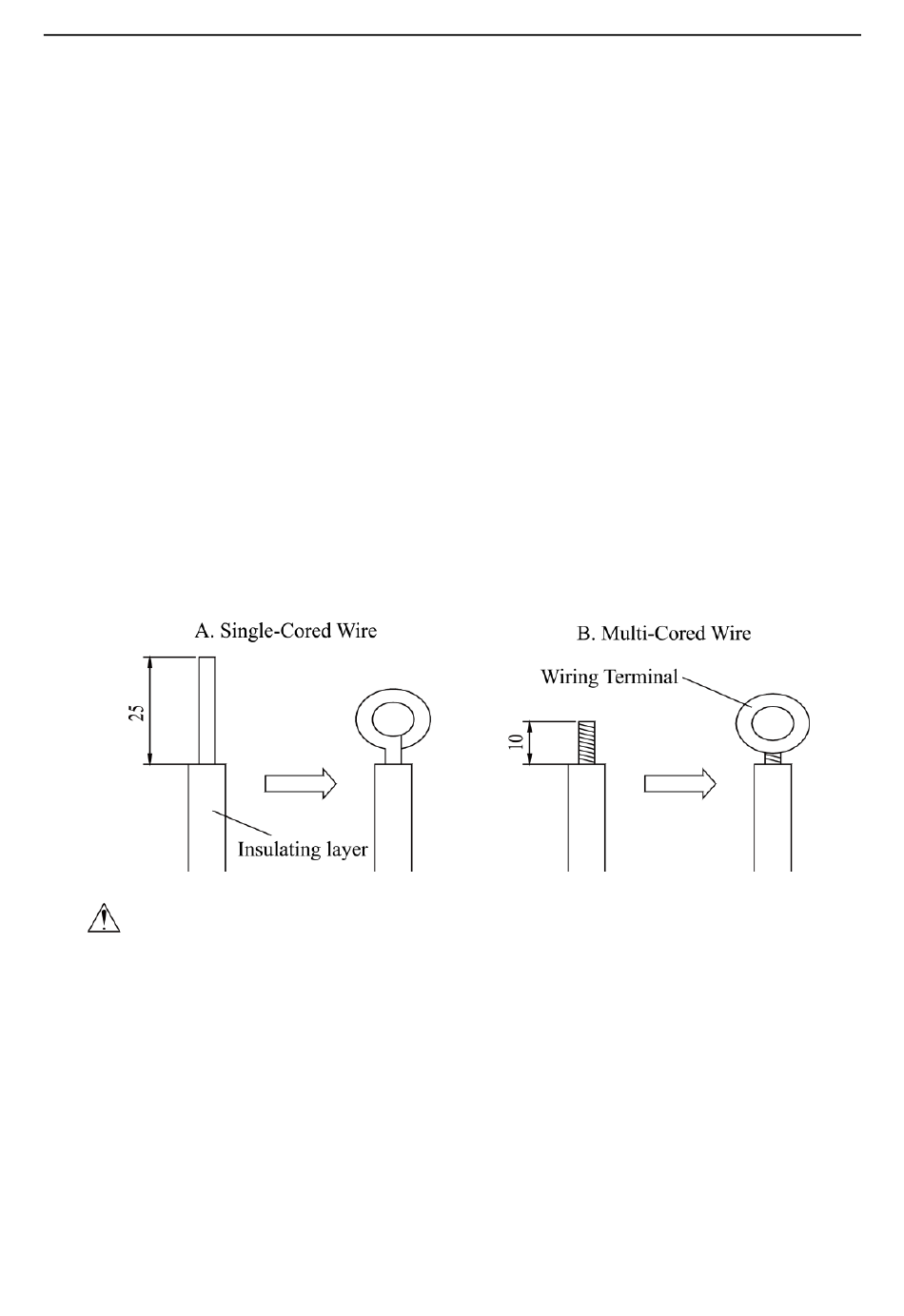

Fig.20
17
