Ⅲ Installation Instructions

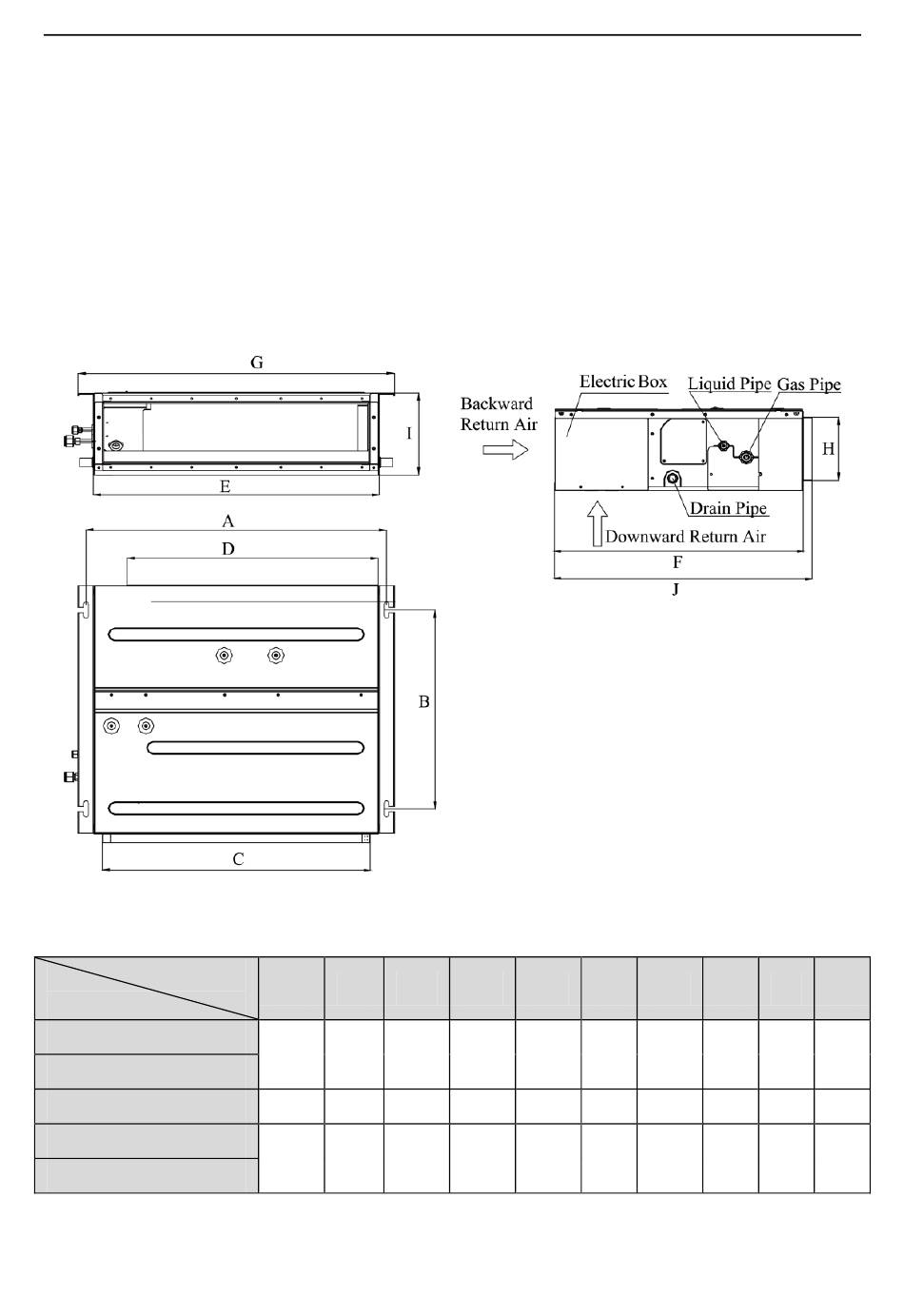

1 Outline Dimension Drawings of the Indoor Unit

Note: the unit in the followings figures is mm, unless otherwise specified.
Fig.1 is applicable to
GFH(09)EA-K6DNA1B/I, G FH(12)EA-K6DNA1B/I ,GFH(18)EA-K6DNA1B/I,
GFH(21)EA-K6DNA1B/I,GFH(24)EA-K6DNA1B/I:
Item
Model
GFH(09)EA-K6DNA1B/I
GFH(12)EA-K6DNA1B/I
GFH(18)EA-K6DNA1B/I
GFH(21)EA-K6DNA1B/I
GFH(24)EA-K6DNA1B/I
Fig.1
Table 1: Outline Dimensions
A B C
742 491 662
942 491 862
1142 491 1062
：
D E F
620 700 615
820 900 615
1020 1100 615
5
G H I
782 156 200
982 156 200
1182 156 200
J
635
635
635
