2 Dimension Requirements on the Installation Space of
the Indoor Unit
3 Installation of the Indoor Unit
a. Requirements on the Installation Location
1) Ensure the hanger is strong enough to withstand the weight of the unit.
2) The drainage of the drain pipe is easy.
3) No obstacle is in the inlet/outlet and the air circulation is in good condition.

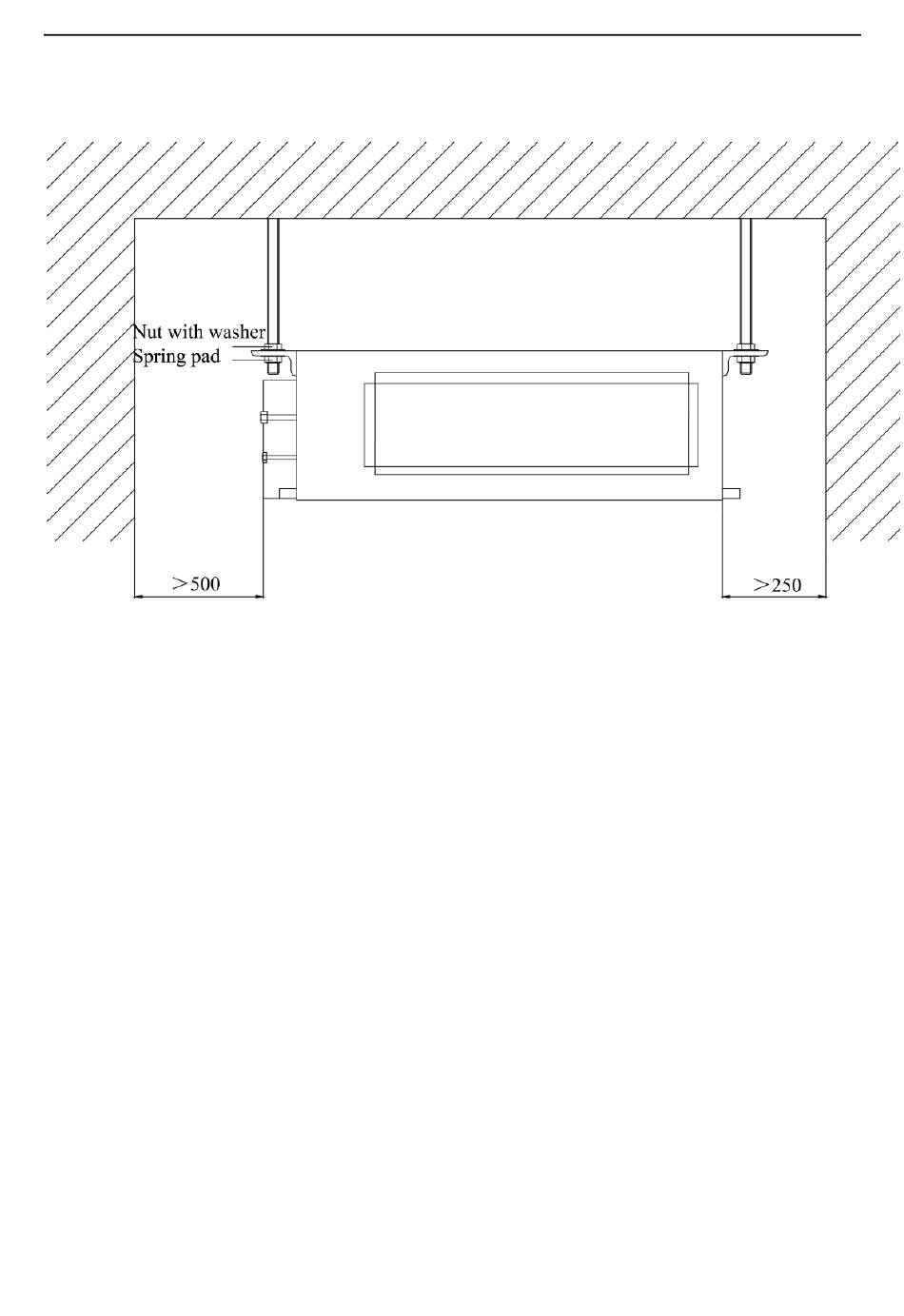

4) Ensure the installation space shown in Fig.2 is left for the access to
maintenance.
5) It should be far away from where there is heat source, leakage of inflammable,
explosive substances, or smog.
6) It is the ceiling type unit (concealed in the ceiling).
7) The power cords and connection lines of the indoor and outdoor units must be
at least 1m away from the TV set or radio to avoid the image interference and noise
( even if 1m is kept, the noise may be produced due to the strong electric wave).
b. Installation of the Indoor Unit
1) Insert the M10 expansion bolt into the hole, and then knock the nail into the
bolt. Refer to the Outline Dimension Drawings of the Indoor Unit for the distance
Unitary Duct Split Unitary Duct Split
Fig. 2
