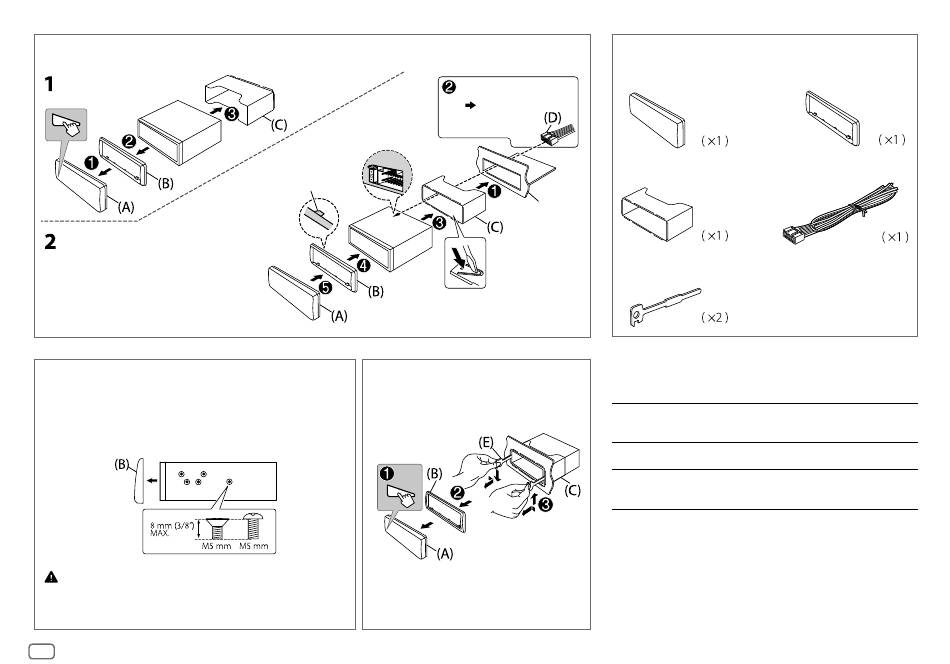

Installing the unit (in-dash mounting)
Orientate the trim
plate as illustrated
before fitting.
When installing without the mounting sleeve
1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the
vehicle mounting bracket and secure the unit with screws
(commercially available).
Use only the specified screws. Using wrong screws might damage
the unit.
34
ENGLISH
Hook on the top side
Bend the appropriate tabs to hold
the sleeve firmly in place.
How to remove the unit
Part list for installation
(A) Faceplate
Do the required wiring.
( 35)
(C) Mounting sleeve
Dashboard of
your car
(E) Extraction key
Output terminals
For 2-way crossover setting
FRONT
REAR/SW
For 3-way crossover setting
FRONT
REAR/SW
(B) Trim plate
(D) Wiring harness
: Front output
: Rear/subwoofer output
: Mid Range output
: Woofer output
