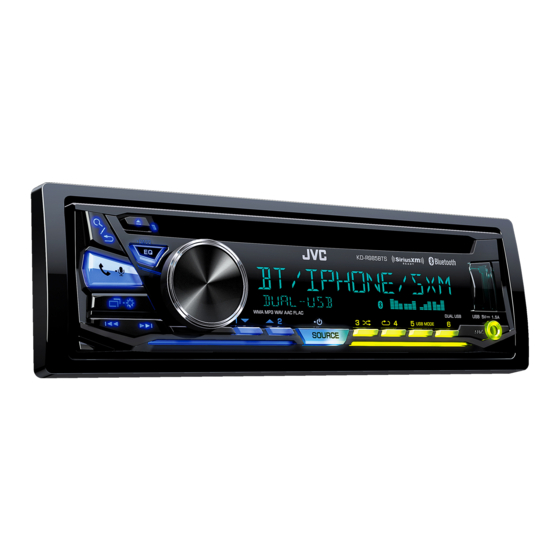

KD-R985BTS / KD-R885BTS / KD-R780BT /
KD-RD98BTS / KD-RD88BT
CD RECEIVER
INSTRUCTION MANUAL
RÉCEPTEUR CD
MANUEL D'INSTRUCTIONS
RECEPTOR CON CD
MANUAL DE INSTRUCCIONES
For customer Use:
Enter below the Model No. and Serial No. which are
located on the top or bottom of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
ENGLISH
FRANÇAIS
ESPAÑOL
B5A-1352-00 [K]

Publicité

Table des Matières
loading

Sommaire des Matières pour JVC KD-R985BTS

  • Page 1 ENGLISH FRANÇAIS ESPAÑOL KD-R985BTS / KD-R885BTS / KD-R780BT / KD-RD98BTS / KD-RD88BT CD RECEIVER INSTRUCTION MANUAL RÉCEPTEUR CD MANUEL D’INSTRUCTIONS RECEPTOR CON CD MANUAL DE INSTRUCCIONES For customer Use: Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.
  • Page 2: Fcc Warning

    FCC NOTE JVC KENWOOD Corporation This equipment has been tested and found to comply with the limits for a Class B digital 2967-3, ISHIKAWA-MACHI, device, pursuant to Part 15 of the FCC Rules.
  • Page 3 IC (Industry Canada) Notice CAUTION This device complies with Industry Canada’s licence-exempt RSSs. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled Operation is subject to the following two conditions: environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of (1) This device may not cause interference;...
  • Page 4: Software License Agreement

    SOFTWARE LICENSE AGREEMENT Article 3 Conditions for Grant of License 1. When the User transfers the Product, it may also transfer the license to use the Licensed The software embedded in the Product (hereinafter the "Licensed Software") provided by Software embedded in the Product (including any related materials, updates and upgrades) Licensor is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the on condition that no original, copies or related materials continue in the possession of the terms and conditions which Users shall follow in order to use the Licensed Software.
  • Page 5 Important Notice concerning the Article 8 Termination Software In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event: (1) when the User violated any provision of this Agreement;...
  • Page 6: Table Des Matières

    How to read this manual CONNECTION • Operations are explained mainly using buttons on the faceplate of KD-R985BTS. • English indications are used for the purpose of explanation. You can select the display language from the menu. ( 5) SPECIFICATIONS •...
  • Page 7: Basics

    Loading slot Display window optionally purchased remote control. Remote sensor (Do not expose to bright sunlight.) Pull out the insulation sheet KD-R985BTS: when using for Detach button USB cable from the rear of the unit the first time. Attach Detach...
  • Page 8: Getting Started

    To set the date For details on how to update the firmware, visit Turn the volume knob to select [DATE SET], then press the knob. <http://www.jvc.net/cs/car/>. Turn the volume knob to make the settings, then press the knob. Day  Month  Year * Not displayed when the corresponding source is selected.
  • Page 9: Radio

    RADIO GETTING STARTED FACTORY YES: Resets the settings to default (except the RESET stored station). ; NO: Cancels. CLOCK TIME SYNC ON: The clock time is automatically set using the Clock Time (CT) data in FM Radio Broadcast Data System signal. ; OFF: Cancels. “ST” lights up when receiving an FM stereo broadcast with sufficient signal strength. CLOCK ON: The clock time is shown on the display even DISPLAY...
  • Page 10: Other Settings

    Turns on the radio at a specific time regardless of the current source. have selected, that station is tuned in. 1 ONCE/DAILY/WEEKLY/OFF: Select how often the timer will be turned on. For KD-R985BTS/KD-R885BTS/KD-RD98BTS: Selectable only when SiriusXM Vehicle 2 FM/AM/SIRIUS XM * : Select the source. Tuner is connected. ( 11) 3 01 to 18 (for FM/SIRIUS XM)/01 to 06 (for AM): Select the preset...
  • Page 11: Cd/Usb/Ipod/Android

    When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device Micro USB 2.0 cable * before connecting.
  • Page 12: Audio Mode

    • To return to the previous setting item, press Preparation: • To cancel, press and hold Install the latest version of JVC Remote application on your device before connecting. For more information, visit <http://www.jvc.net/cs/car/>. You can make the settings in the same way as connection via Bluetooth.
  • Page 13: Pandora

    Turn the volume knob to select the desired station, then press the knob. and/or To cancel, press and hold KD-R985BTS: You can also connect to the USB cable from the rear of the unit. Bookmark current song information Press repeatedly to select PANDORA FRONT/PANDORA Press and hold the volume knob.
  • Page 14: Iheartradio

    Press Turn the volume knob to select a category, then press the knob. KD-R985BTS: You can also connect to Turn the volume knob to select the desired station, then press the the USB cable from the rear of the unit.
  • Page 15: Siriusxm® Radio

    SiriusXM® Radio (for KD-R985BTS/KD-R885BTS/KD-RD98BTS) Only SiriusXM® brings you more of what you love Start listening to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, Press repeatedly to select SIRIUS XM. news, talk, comedy and entertainment. Welcome to the Press world of satellite radio.
  • Page 16: Siriusxm Replay

    SiriusXM® Radio (for KD-R985BTS/KD-R885BTS/KD-RD98BTS) Using SiriusXM tuner models later than SXV200: This unit can SiriusXM Replay™ assign a maximum of 18 SmartFavorites channels. Initially, all preset While listening to a channel..channels are assigned as SmartFavorites. Press the volume knob.
  • Page 17 SiriusXM® Radio (for KD-R985BTS/KD-R885BTS/KD-RD98BTS) TuneScan™ CODE SET 1 Press the volume knob to enter [NEW CODE]. 2 Turn the volume knob to select a number. You can get a short preview of the songs that you have missed on each of 3 Press to move to the entry position.
  • Page 18: Bluetooth

    BLUETOOTH® BLUETOOTH — Connection Pair and connect a Bluetooth device for the first time Press to turn on the unit. Supported Bluetooth profiles – Hands-Free Profile (HFP) Search and select “KD-R9 BTS”/“KD-R8 BTS”/“KD-R7 BT”/“KD-RD9 BTS”/ – Advanced Audio Distribution Profile (A2DP) “KD-RD8 BT”...
  • Page 19 – [AUTO PAIRING] is set to [ON]. ( 18) • The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. ( 16) – JVC MUSIC PLAY application is installed on During a call: the Android device ( 7) and [AUTO MODE] is •...
  • Page 20 01 SEC to 30 SEC: The unit answers incoming call Operations may vary according to the connected Bluetooth device. automatically in the selected time (in seconds). ; OFF: Cancels. RING COLOR KD-R985BTS/KD-RD98BTS: Improve the voice quality COLOR 01 to COLOR 49 (COLOR 08): Selects the light color While talking on the phone..
  • Page 21: Phone Book

    BLUETOOTH® Make a call using voice recognition Make a call Press and hold to activate the connected You can make a call from the call history, phonebook, or dialing the number. Call by phone. voice is also possible if your mobile phone has the feature. Speak the name of the contact you want to call or Press to enter Bluetooth mode.
  • Page 22 BLUETOOTH® Bluetooth mode settings Bluetooth compatibility check mode Press and hold You can check the connectivity of the supported Turn the volume knob to select an item (see the following table), then press the knob. profile between the Bluetooth device and the unit. Repeat step until the desired item is selected/activated or follow the instructions •...
  • Page 23 BLUETOOTH® The connectivity result flashes on the display. BLUETOOTH — Audio “PAIRING OK” and/or “HANDS-FREE OK”* and/ While in BT AUDIO source, you can or “AUD.STREAM OK”* and/or “PBAP OK”* connect to five Bluetooth audio Compatible devices and switch between these Compatible with Hands-Free Profile (HFP) five devices.
  • Page 24 Shows the status of the selected device. IOS CONNECTED: You are able to use the application using JVC Remote application is designed to control the JVC car receiver’s operations from the the iPhone/iPod connected via Bluetooth or USB input following devices.
  • Page 25: Aux

    Bluetooth on this unit. 3.5 mm (1/8") stereo mini plug with “L” • Make sure the USB input terminal is not connected to any device. shaped connector (commercially available) KD-R985BTS/KD-R885BTS/KD-RD98BTS/KD-RD88BT: iPhone/iPod touch/Android Portable audio player device KD-R780BT: Android device...
  • Page 26: Audio Settings

    AUDIO SETTINGS Default: XX EQ SETTING PRESET EQ Select a preset equalizer suitable to the music genre. • Select [USER] to use the settings made in [EASY EQ] or [PRO EQ]. FLAT/DRVN 3/DRVN 2/DRVN 1/HARD ROCK/HIP HOP/JAZZ/POP/ R&B/USER/CLASSICAL Select a preset equalizer EASY EQ Adjust your own sound settings.
  • Page 27 AUDIO SETTINGS LOUDNESS LEVEL 01/LEVEL 02: Boosts low or high frequencies to produce a well- DTA SETTINGS For settings, 26, Digital Time Alignment settings. balanced sound at low volume. ; OFF: Cancels. CAR SETTINGS SUB.W LEVEL * SPK-OUT * (Not applicable when 3-way crossover is selected.) X ' OVER TYPE Caution: Adjust the volume before changing the [X ' OVER TYPE] SUB.W 00 to SUB.W +06 (SUB.W +03): Adjusts the...
  • Page 28 Subwoofer output Connection via lineout terminals SUB.W/SUB.W Subwoofer output For connections through an external amplifier. ( 35, 36) KD-R985BTS/KD-R885BTS: Connection via speaker leads Audio signal through lineout terminal For connections without using an external amplifier. However, with this Setting on settings you can also enjoy the subwoofer output.
  • Page 29 AUDIO SETTINGS 2-way crossover setting items Crossover settings Below are the available setting items for 2-way crossover and 3-way SPEAKER SIZE crossover. FRONT SIZE 3.5"/4"/4.75"/5"/6.5"/6.75"/7"/4×6/5×7/6×8/ Caution 6×9/7×10 Select a crossover type according to how the speakers are connected. TWEETER SMALL/MIDDLE/LARGE/NONE (not connected) ( 35, 36) REAR * 3.5"/4"/4.75"/5"/6.5"/6.75"/7"/4×6/5×7/6×8/6×9/7×10/...
  • Page 30 AUDIO SETTINGS 3-way crossover setting items Digital Time Alignment settings Digital Time Alignment sets the delay time of the speaker output SPEAKER SIZE to create a more suitable environment for your vehicle. TWEETER SMALL/MIDDLE/LARGE • For more information, 27, Determining the value for [DISTANCE] and MID RANGE 3.5"/4"/4.75"/5"/6.5"/6.75"/7"/4×6/5×7/6×8/6×9 [GAIN] of [DTA SETTINGS].
  • Page 31: Display Settings

    DISPLAY SETTINGS AUDIO SETTINGS Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS] If you specify the distance from the center of the currently set listening position to every speaker, the delay time will be automatically computed and set. 1 Determine the center of the currently set listening position as the reference point.
  • Page 32: References

    SCROLL ONCE: Scrolls the display information once. ; SCROLL AUTO: Repeats scrolling at Cleaning the unit 5-second intervals. ; SCROLL OFF: Cancels. Wipe off dirt on the faceplate with a dry silicone or soft cloth. COLOR (for KD-R985BTS/KD-RD98BTS) Cleaning the connector PRESET Select illumination colors for button and display separately.
  • Page 33: About Bluetooth

    • It is not possible to browse video files on the “Videos” menu in [HEAD MODE]. • Playable audio file: • The song order displayed on the selection menu of this unit may differ from that of the iPod/ For disc: KD-R985BTS/KD-R885BTS/KD-RD98BTS/KD-RD88BT: MP3 (.mp3), iPhone. WMA (.wma), AAC (.aac) •...
  • Page 34 Track title (Artist) with music music synchronisation* (back to the beginning) synchronisation* (back to the beginning) * For KD-R985BTS/KD-RD98BTS: The illumination colors of the buttons and display change (For MP3/WMA/AAC/WAV/FLAC files) and synchronises with the music. Song title (Artist) Song title (Album name)
  • Page 35: Troubleshooting

    Check whether the track is a playable format. ( 29) and track skips. unit. ( 29) Cannot playback at • Make sure JVC MUSIC PLAY APP is installed on the “READING” keeps flashing. • Do not use too many hierarchical levels and folders. [AUTO MODE].
  • Page 36 TROUBLESHOOTING Symptom Remedy Symptom Remedy “NO DEVICE” or “READING” • Switch off the developer options on the Android device. “CH LOCKED LOCK CODE?” The selected channel is locked. Enter the correct pass keeps flashing. • Reconnect the Android device. code to unlock. ( 13) •...
  • Page 37: Installation/Connection

    Reset the unit ( 3) 4 Connect the terminal of the car battery. Contact (USA only) 5 Press to turn on the power. Call: 1-800-252-5722 ( or ) visit: <http://www.jvc.com> 6 Detach the faceplate and reset the unit. ( 3) ENGLISH...
  • Page 38 INSTALLATION/CONNECTION Installing the unit (in-dash mounting) Part list for installation (A) Faceplate (B) Trim plate Do the required wiring. (  35, 36) (C) Mounting sleeve (D) Wiring harness Hook on the top side Orientate the trim Dashboard of plate as illustrated your car before fitting.
  • Page 39: Wiring Connection

    MIC (Microphone input specific for your car and leave this job to ( 34) KD-R985BTS: USB cable (DC 5 V terminal) ( 14) professionals for your safety. Consult your car 1.5 A) (approx. 1.2 m/4 feet) audio dealer.
  • Page 40 INSTALLATION/CONNECTION Wiring connection (for KD-R780BT/KD-RD88BT) Signal cord (not supplied) IMPORTANT JVC Amplifier * We recommend installing the unit with a commercially available custom Output wiring harness specific for your car and leave this job to professionals for terminals your safety. Consult your car audio dealer.
  • Page 41: Specifications

    SPECIFICATIONS FM Frequency Range 87.9 MHz — 107.9 MHz (200 kHz step) USB Standard USB 1.1, USB 2.0 (Full speed) 87.5 MHz — 108.0 MHz (50 kHz step) Compatible Devices Mass storage class Usable Sensitivity (S/N = 26 dB) 8.2 dBf (0.71 μV/75 Ω) File System FAT12/16/32 Quieting Sensitivity (DIN S/N = 46 dB) 17.2 dBf (2.0 μV/75 Ω) Maximum Supply Current DC 5 V ...
  • Page 42 SPECIFICATIONS Maximum Output Power 50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω) Full Bandwidth Power 22 W × 4 (at less than 1 % THD) Speaker Impedance 4 Ω — 8 Ω Preout Level/Load (CD/USB) 4 000 mV/10 kΩ load Preout Impedance ≤ 600 Ω Operating Voltage 14.4 V (10.5 V — 16 V allowable) Maximum Current Consumption 10 A Operating Temperature Range –10°C —...
  • Page 44: Avant L'utilisation

    • Ajustez le volume de façon à pouvoir entendre les sons extérieurs à la voiture afin d’ é viter tout risque d’accident. (pour KD-R985BTS/KD-R885BTS/ • Réduisez le volume avant de reproduire des sources numériques afin d’ é viter d’ e ndommager les enceintes par la soudaine augmentation du niveau de sortie.
  • Page 45: Fonctionnement De Base

    Fente d’insertion Fenêtre d’affichage télécommande vendue séparément. Capteur de télécommande (Ne l’exposez Pas à la lumière directe du soleil.) Retirez la feuille KD-R985BTS: d’isolant lors de la Touche de détachement Câble USB à partir de l’arrière de l’appareil première utilisation. Attachez Détachez...
  • Page 46: Prise En Main

    Pour en savoir plus sur la mise à niveau du micrologiciel, consultez Pour régler la date <http://www.jvc.net/cs/car/>. Tournez le bouton de volume pour choisir [DATE SET] , puis appuyez sur le bouton.
  • Page 47: Radio

    RADIO PRISE EN MAIN FACTORY : Réinitialise les réglages aux valeurs par défaut (sauf la RESET station mémorisée). ; : Annulation. CLOCK TIME SYNC : L’horloge est réglée automatiquement à l’aide des données d’horloge (CT) comprises dans les données du signal FM Radio Broadcast Data System. ; : Annulation.
  • Page 48 S’il y a une station diffusant un programme du code PTY que vous avez choisi, la station Défaut: est accordée. TUNER SETTING Pour KD-R985BTS/KD-R885BTS/KD-RD98BTS : Sélectionnable quand le tuner SiriusXM Vehicle est RADIO TIMER Met la radio sous tension à une heure spécifique quelle que soit la source actuelle. ( 11) connecté.
  • Page 49: Cd/Usb/Ipod/Android

    Ne laissez pas le câble à l’intérieur de la voiture quand il n’ e st pas utilisé. Lors de la connexion d’un périphérique Android, “Press [VIEW] to install JVC MUSIC PLAY APP” apparaît. Suivez les instructions pour installer Câble Micro USB 2.0 l’application.
  • Page 50 Préparation: -0-: Nombres (0 à 9) Installez la dernière version de l’application JVC Remote sur votre périphérique avant la -OTHERS-: Caractères autre que A à Z, 0 à 9 connexion. Pour plus d'informations, consultez <http://www.jvc.net/cs/car/>. Appuyez sur le bouton de volume pour démarrer la recherche.
  • Page 51: Pandora

    [BY DATE] : En fonction de la date d’enregistrement [A-Z] Par ordre alphabétique KD-R985BTS : Vous pouvez aussi faire une connexion Tournez le bouton de volume pour choisir la station souhaitée, puis au câble USB à partir de l’arrière de l’appareil.
  • Page 52: Iheartradio

    Appuyez de nouveau ( Non disponible ) pour écouter la station. et/ou KD-R985BTS : Vous pouvez aussi faire une connexion Recherche et mémorisation d’une station au câble USB à partir de l’arrière de l’appareil. Appuyez sur Appuyez répétitivemenent sur pour sélectionner...
  • Page 53: Radio Siriusxm

    Radio SiriusXM® (pour KD-R985BTS/KD-R885BTS/KD-RD98BTS) Seul SiriusXM® vous apporte plus de ce que vous aimez écouter, Démarrez l’écoute en un seul endroit. Obtenez plus de 140 canaux, y compris de la musique sans pauses publicitaires, le meilleur du sport, les Appuyez répétitivement sur pour sélectionner SIRIUS XM.
  • Page 54: Smartfavorites Et Tunestart

    Radio SiriusXM® (pour KD-R985BTS/KD-R885BTS/KD-RD98BTS) Utilisation d’un de tuner SiriusXM ultérieur au than SXV200: Cet appareil Relecture SiriusXM™ peut affecter un maximum de 18 canaux SmartFavorites. Les canaux préréglés sont affectés initialement comme canaux SmartFavorites. Lors de l’écoute d’un canal..• “...
  • Page 55 Radio SiriusXM® (pour KD-R985BTS/KD-R885BTS/KD-RD98BTS) TuneScan™ CODE SET [NEW CODE] Appuyez sur le bouton de volume pour entrer Tournez le bouton de volume pour sélectionner un numéro. Vous pouvez obtenir un bref aperçu des morceaux que vous avez manqués sur chacun Appuyez sur pour déplacer la position d’...
  • Page 56: Bluetooth

    BLUETOOTH® BLUETOOTH — Connexion Faites le pairage et connectez un périphérique Bluetooth pour la première fois Profiles Bluetooth pris en charge Appuyez sur pour mettre l’appareil sous tension. – Hands-Free Profile — Profile mains libres (HFP) Cherchez et sélectionnez “KD-R9 BTS”/“KD-R8 BTS”/“KD-R7 BT”/“KD-RD9 BTS”/...
  • Page 57: Pairage Automatique

    – [AUTO PAIRING] est réglé sur [ON] ( 18) Pendant un appel: – L’application JVC MUSIC PLAY est installée sur le • KD-R985BTS KD-RD98BTS périphérique Android ( 7) [AUTO MODE] Les touches s’arrêtent de clignoter et s’allument dans la couleur que vous avez sélectionnée dans...
  • Page 58 (secondes). ; Cet ajustement n’affecte pas le volume des autres sources. : Annulation. Les opérations peuvent différer en fonction du périphérique Bluetooth connecté. RING COLOR KD-R985BTS KD-RD98BTS: Amélioration de la qualité des voix COLOR 01 COLOR 49 COLOR 08  à ...
  • Page 59: Faire Un Appel

    BLUETOOTH® Faites au appel en utilisant la reconnaissance Faire un appel vocale Vous pouvez faire un appel à partir de l’historique, du répertoire d’adresses ou composer le numéro. Un Maintenez pressé pour activer le téléphone appel par commande vocale est possible si votre téléphone portable possède cette fonction. connecté.
  • Page 60 BLUETOOTH® Réglages du mode Bluetooth Mode de vérification de la compatibilité Bluetooth Maintenez enfoncée Tournez le bouton de volume pour sélectionner un élément voir le tableau suivant , puis Vous pouvez vérifier la connectivité du profile pris en charge appuyez sur le bouton. entre le périphérique Bluetooth et l’appareil.
  • Page 61 BLUETOOTH® Le résultat de la connectivité clignote sur BLUETOOTH — Audio l’affichage. Quand la source est BT AUDIO, vous “PAIRING OK” et/ou “HANDS-FREE OK”* et/ou ne pouvez pas vous connecter à cinq “AUD.STREAM OK”* et/ou “PBAP OK”* : Compatible périphériques audio Bluetooth et Compatible avec le Profile mains libres (HFP) commuter parmi ces cinq périphériques.
  • Page 62 : Aucun périphérique Android n’ e st connecté pour utiliser KD-R780BT : Smartphone Android (via Bluetooth) l’application. Préparation: Installez la dernière version de l’application JVC Remote sur votre périphérique avant la connexion. Pour plus d'informations, consultez <http://www.jvc.net/cs/car/>. Écoute de l’iPhone/iPod via Bluetooth (sauf pour KD-R780BT) Maintenez enfoncée Vous pouvez écouter des morceaux sur l’iPhone/iPod via le Bluetooth de cet appareil.
  • Page 63: Écoute De Pandora

    Bluetooth de cet appareil. Mini fiche stéréo de 3,5 mm (1/8 pouces) avec • Assurez-vous que la prise d’entrée USB n’est connectée à aucun périphérique. connecteur en forme de “L” (en vente dans le commerce) KD-R985BTS KD-R885BTS KD-RD98BTS KD-RD88BT : Périphérique iPhone/iPod touch/...
  • Page 64: Réglages Audio

    RÉGLAGES AUDIO Défaut: EQ SETTING PRESET EQ Sélectionne un égaliseur préréglé adapté à votre genre de musique. • Sélectionnez [USER] pour utiliser les réglages réalisés dans [EASY EQ] [PRO EQ] FLAT DRVN 3 DRVN 2 DRVN 1 HARD ROCK HIP HOP JAZZ R&B USER...
  • Page 65 RÉGLAGES AUDIO LOUDNESS LEVEL 01 LEVEL 02 DTA SETTINGS : Accentue les basses ou hautes fréquences pour produire un son plus Pour les réglages, 26, Réglages de l’alignement temporel équilibré aux faibles niveaux de volume. ; : Annulation. numérique CAR SETTINGS SUB.W LEVEL * SPK-OUT * (Non applicable quand la transition 3 voies est sélectionnée.) X ' OVER TYPE...
  • Page 66: Réglages De Sortie D'enceinte

    Connexion via les prises de sortie de ligne SUB.W/SUB.W Sortie de caisson de grave Pour les connexions via un amplificateur extérieur. ( 35, 36) KD-R985BTS KD-R885BTS Connexion via les câbles d’enceinte Signal audio via la prise de sortie de ligne Réglage sur Pour les connexions sans utiliser un amplificateur extérieur.
  • Page 67 RÉGLAGES AUDIO Options de réglage de la transition 2 voies Réglages de transition Voici les options de réglage disponibles pour la transition 2 voies et la transition SPEAKER SIZE 3 voies. FRONT SIZE 3.5" 4" 4.75" 5" 6.5" 6.75" 7" 4×6 5×7 6×8...
  • Page 68 RÉGLAGES AUDIO Options de réglage de la transition 3 voies Réglages de l’alignement temporel numérique L’alignement temporel numérique règle la temporisation de la sortie d’enceinte SPEAKER SIZE pour créer un environnement qui convient mieux à votre véhicule. TWEETER SMALL/MIDDLE/LARGE • Pour plus d’informations, 27, Déterminez la valeur pour [DISTANCE] et [GAIN] de [DTA SETTINGS] MID RANGE...
  • Page 69: Réglages D'affichage

    RÉGLAGES D’AFFICHAGE RÉGLAGES AUDIO Déterminez la valeur pour [DISTANCE] et [GAIN] de [DTA SETTINGS] Si vous spécifiez la distance à partir du centre de la positon d’ é coute actuellement réglée sur n’importe quel réglage, la temporisation est calculée automatiquement et réglée. Détermine le centre de la position d’...
  • Page 70: Références

    NIGHT COLOR Pour: – Les dernières mise à jour du micrologiciel et la liste de compatibilité la plus récente Répétez les étapes pour toutes les couleurs primaires. – Application originale JVC [USER] [PRESET] • Votre réglages est mémorisé sur dans –...
  • Page 71: Fichiers Pouvant Être Lus

    • Il n’ e st pas possible de parcourir les fichiers vidéo sur le menu “Videos” en mode • Fichier audio reproductible: • L’ o rdre des morceaux affichés sur le menu de sélection de cet appareil peut être différent de celui de iPod/iPhone. KD-R985BTS/KD-R885BTS/KD-RD98BTS/KD-RD88BT Pour les disques: : MP3 (.mp3), •...
  • Page 72 Durée de lecture (Date/Horloge) Titre de plage (Artiste) avec la synchronisation de la musique* (retour au début) * Pour KD-R985BTS KD-RD98BTS : Les couleurs d’ é clairage des touches et de l’affichage changent et sont synchronisées avec la musique. (Pour les fichiers MP3/WMA/AAC/WAV/FLAC)
  • Page 73: Guide De Dépannage

    “NOT SUPPORT” apparaît et la ( 29) Vérifiez si la plage est dans un format compatible. plage est sautée. Lecture impossible en mode • Assurez-vous que JVC MUSIC PLAY APP est installé sur le périphérique [AUTO MODE] Android. ( 7) “READING” clignote sur.
  • Page 74 GUIDE DE DÉPANNAGE Symptôme Remède Symptôme Remède “NO DEVICE” ou “READING” • Déactivez les options développeur sur le périphérique Android. “CH LOCKED LOCK CODE?” Le canal sélectionné est verrouillé. Entrez le code secret correct pour ( 13) clignote sur. • Reconnectez le périphérique Android. déverrouiller.
  • Page 75: Installation/Raccordement

    Vérifiez la section GUIDE DE DÉPANNAGE Connectez la borne de la batterie de la voiture. Réinitialisez l’appareil ( 3) Appuyez sur pour mettre l’appareil sous tension. Contactez (USA uniquement) ( 3) Détachez la façade et réinitialisez l’appareil. Appelez: 1-800-252-5722 ( ou ) consultez: <http://www.jvc.com> FRANÇAIS...
  • Page 76: Montage

    INSTALLATION/RACCORDEMENT Installation de l’appareil (montage encastré) Liste des pièces pour l’installation Façade Plaque d’assemblage Réalisez les connexions nécessaires. ( 35, 36) Manchon de montage Faisceau de fils Crochet sur le côté supérieur Orientez la plaque de Tableau de bord garniture de la façon de votre voiture illustrée avant la fixation.
  • Page 77: Connexion Recommandée

    INSTALLATION/RACCORDEMENT Connexions (pour KD-R985BTS/KD-R885BTS/KD-RD98BTS Cordon de signal (non fournie) IMPORTANTES Amplificateur * Nous recommandons d’installer l’appareil en utilisant un Prises de sortie harnais de câblage en vente dans le commerce recommandé spécifiquement pour votre voiture et, pour votre sécurité, MIC (prise d’ e ntrée KD-R985BTS : Câble USB (CC 5 V...
  • Page 78 INSTALLATION/RACCORDEMENT Connexions (pour KD-R780BT/KD-RD88BT) Cordon de signal (non fournie) IMPORTANTES Nous recommandons d’installer l’appareil en utilisant un harnais de câblage en vente dans Amplificateur * Prises de sortie le commerce recommandé spécifiquement pour votre voiture et, pour votre sécurité, de ( 34) laisser ce travail a des professionnels.
  • Page 79: Spécifications

    SPÉCIFICATIONS FM Plage de fréquences 87,9 MHz — 107,9 MHz (pas de 200 kHz) Standard USB USB 1.1, USB 2.0 (Vitesse maximale) 87,5 MHz — 108,0 MHz (pas de 50 kHz) Périphériques compatibles À mémoire de grande capacité Sensibilité utilisable (S/B = 26 dB) 8,2 dBf (0,71 μV/75 Ω) Système de fichiers FAT12/16/32 Seuil de sensibilité...
  • Page 80 SPÉCIFICATIONS Puissance de sortie maximum 50 W × 4 ou 50 W × 2 + 50 W × 1 (Caisson de grave = 4 Ω) Pleine Puissance de Largeur de Bande 22 W × 4 (avec moins de 1 % DHT) Impédance d’ e nceinte 4 Ω — 8 Ω Niveau de préamplification/charge 4 000 mV/10 kΩ en charge (CD/USB) Impédance du préamplificateur ≤ 600 Ω...
  • Page 82: Antes Del Uso

    • Ajuste el volumen a un nivel que le permita oír los ruidos del exterior para impedir accidentes. (para KD-R985BTS/KD-R885BTS/ • Antes de reproducir fuentes digitales, baje el volumen para evitar que el repentino aumento del nivel de salida cause daños a los altavoces.
  • Page 83: Puntos Básicos

    Otros modelos pueden controlarse a distancia mediante un mando a distancia adquirido a opción. Sensor remoto (DO lo exponga a la luz solar brillante.) Retire la hoja aislante cuando se KD-R985BTS: Botón de liberación utilice por primera Cable USB de la parte trasera de la unidad vez.
  • Page 84: Procedimientos Iniciales

    Gire la rueda de volumen para seleccionar y, a continuación, Para obtener información sobre cómo actualizar el firmware, visite pulse la rueda. <http://www.jvc.net/cs/car/>. Para ajustar la fecha * No se visualiza cuando se ha seleccionado la fuente correspondiente. Gire la rueda de volumen para seleccionar [DATE SET] y, a continuación,...
  • Page 85: Radio

    RADIO PROCEDIMIENTOS INICIALES FACTORY : Se restablecen los ajustes predeterminados (excepto la RESET emisora memorizada). ; : Se cancela. CLOCK TIME SYNC : El reloj se ajusta automáticamente en sincronización con los datos de CT (hora del reloj) de la señal del FM Radio Broadcast Data System. ;...
  • Page 86 Si hay una emisora que esta difundiendo un programa que tenga el mismo código PTY que TUNER SETTING el seleccionado por usted, se sintonizará esa emisora. RADIO TIMER Enciende la radio a una hora específica, independientemente de la fuente actual. KD-R985BTS/KD-R885BTS/KD-RD98BTS Para : Solo es posible seleccionarlo si el sintonizador para 1 ONCE DAILY WEEKLY : Selecciona la frecuencia de activación del...
  • Page 87: Cd/Usb/Ipod/Android

    Cuando conecte un dispositivo Android, se mostrará “Press [VIEW] to install JVC MUSIC PLAY APP”. Siga las instrucciones para instalar la aplicación. Cable Micro USB 2.0 Antes de la conexión, también puede instalar la versión más reciente de la aplicación JVC MUSIC PLAY en su dispositivo Android. Para obtener más (disponible en el mercado) información, visite <http://www.jvc.net/cs/car/>.
  • Page 88 Preparativos: • Para volver al elemento de ajuste anterior, pulse Antes de la conexión, instale la versión más reciente de la aplicación JVC Remote en su • Para cancelar, pulse y mantenga pulsado dispositivo. Para obtener más información, visite <http://www.jvc.net/cs/car/>.
  • Page 89: Pandora

    [BY DATE] : Según la fecha de registro [A-Z] Por orden alfabético KD-R985BTS : También se puede conectar al Gire la rueda de volumen para seleccionar la emisora deseada y, a cable USB desde la parte trasera de la unidad.
  • Page 90: Iheartradio

    Busque y sintonice la emisora Pulse KD-R985BTS : También se puede conectar al Gire la rueda de volumen para seleccionar una categoría y, a cable USB desde la parte trasera de la unidad. continuación, pulse la rueda.
  • Page 91: Radio Siriusxm

    Radio SiriusXM® (para KD-R985BTS/KD-R885BTS/KD-RD98BTS) Solo SiriusXM® ofrece todo lo que quiere escuchar, en un solo Comience a escuchar lugar. Con más de 140 canales, incluida música sin publicidad además de lo mejor en deportes, noticias, entrevistas, Pulse repetidamente para seleccionar SIRIUS XM.
  • Page 92 Radio SiriusXM® (para KD-R985BTS/KD-R885BTS/KD-RD98BTS) Uso de los modelos del sintonizador SiriusXM posteriores al SXV200: Esta SiriusXM Replay™ unidad puede asignar un máximo de 18 canales SmartFavorites. Inicialmente, todos los canales presintonizados se asignan a SmartFavorites. Mientras escucha un canal..• Para los canales SmartFavorites, aparece “...
  • Page 93 Radio SiriusXM® (para KD-R985BTS/KD-R885BTS/KD-RD98BTS) TuneScan™ CODE SET [NEW CODE] Pulse la rueda de volumen para ingresar en Gire la rueda de volumen para seleccionar un número. Puede obtener una pequeña vista previa de las canciones que se perdió en cada uno de Pulse para desplazarse a la posición de introducción.
  • Page 94: Bluetooth

    BLUETOOTH® BLUETOOTH — Conexión Emparejar y conectar por primera vez un dispositivo Bluetooth Perfiles Bluetooth compatibles Pulse para encender la unidad. – Perfil manos libres (HFP) Busque y seleccione “KD-R9 BTS”/“KD-R8 BTS”/“KD-R7 BT”/“KD-RD9 BTS”/“KD-RD8 BT” – Perfil Avanzado de Distribución de Audio (A2DP) en el dispositivo Bluetooth.
  • Page 95: Recibir Una Llamada

    ( 16) conectado. – [AUTO PAIRING] está ajustado a [ON] ( 18) Durante una llamada: – La aplicación JVC MUSIC PLAY está instalada en el • KD-R985BTS KD-RD98BTS dispositivo Android ( 7) y la opción [AUTO MODE] Los botones dejan de parpadean y se iluminan en el color que ha seleccionado en...
  • Page 96 ( No disponible ) llamada. entrantes en el tiempo seleccionado (en segundos). ; : Se cancela. privada RING COLOR KD-R985BTS KD-RD98BTS: Este ajuste no influirá en el volumen del resto de las fuentes. COLOR 01  a  COLOR 49  (...
  • Page 97 BLUETOOTH® Realice una llamada mediante reconocimiento Realizar una llamada de voz Puede realizar una llamada desde el historial de llamadas, la guía telefónica o mediante marcación del Pulse y mantenga pulsado para activar el número. La llamada con marcación por voz también es posible si su teléfono móvil dispone de esta teléfono conectado.
  • Page 98 BLUETOOTH® Ajustes del modo Bluetooth Modo de comprobación de compatibilidad Bluetooth Pulse y mantenga pulsado Gire la rueda de volumen para seleccionar un elemento consulte la siguiente tabla y, a Puede comprobar la conectividad del perfil compatible entre el continuación, pulse la rueda. dispositivo Bluetooth y la unidad.
  • Page 99 BLUETOOTH® El resultado de la conectividad parpadea en la BLUETOOTH — Audio pantalla. Mientras está activada la fuente BT “PAIRING OK” y/o “HANDS-FREE OK”* AUDIO, es posible conectar a cinco “AUD.STREAM OK”* y/o “PBAP OK”* : Compatible dispositivos de audio Bluetooth y cambiar Compatible con el Perfil Manos Libres (HFP, Hands-Free Profile) entre los cinco dispositivos.
  • Page 100 KD-R780BT : Smartphone Android (a través de Bluetooth) Preparativos: Antes de la conexión, instale la versión más reciente de la aplicación JVC Remote en su Escuchar el iPhone/iPod a través de Bluetooth (excepto para dispositivo. Para obtener más información, visite <http://www.jvc.net/cs/car/>.
  • Page 101: Radio Internet A Través De Bluetooth

    Bluetooth de esta unidad. Miniclavija estéreo de 3,5 mm (1/8 pulgada) con • Asegúrese de que el terminal de entrada USB no esté conectado a ningún dispositivo. conector en “L” (disponible en el mercado) KD-R985BTS KD-R885BTS KD-RD98BTS KD-RD88BT : Dispositivo iPhone/iPod touch/ Reproductor de audio portátil...
  • Page 102: Ajustes De Audio

    AJUSTES DE AUDIO Predeterminado: EQ SETTING PRESET EQ Selecciona un ecualizador predefinido adecuado para el género musical. • Seleccione [USER] para utilizar los ajustes realizados en [EASY EQ] [PRO EQ] FLAT DRVN 3 DRVN 2 DRVN 1 HARD ROCK HIP HOP JAZZ R&B USER...
  • Page 103 AJUSTES DE AUDIO LOUDNESS LEVEL 01 LEVEL 02 DTA SETTINGS : Refuerza las frecuencias altas o bajas para producir un sonido bien Para los ajustes, 26, Ajustes de la alineación del tiempo balanceado a bajos niveles de volumen. ; : Se cancela. digital CAR SETTINGS SUB.W LEVEL * SPK-OUT *...
  • Page 104 Para conexiones a través de un amplificador externo. ( 35, 36) SUB.W/SUB.W Salida del subwoofer KD-R985BTS KD-R885BTS Señal de audio a través de la terminal de salida de línea Conexión a través de los cables de los altavoces Configuración de [SPK/PRE OUT] Para conexiones que no utilizan un amplificador externo.
  • Page 105 AJUSTES DE AUDIO Elementos de ajuste de crossover de 2 vías Ajustes de crossover A continuación se describen los elementos de ajuste disponibles para crossover de SPEAKER SIZE 2 vías y crossover de 3 vías. FRONT SIZE 3.5" 4" 4.75" 5"...
  • Page 106 AJUSTES DE AUDIO Elementos de ajuste de crossover de 3 vías Ajustes de la alineación del tiempo digital La Alineación de Tiempo Digital ajusta el tiempo de retardo de la salida de los SPEAKER SIZE altavoces creando un entorno más adecuado para su vehículo. TWEETER SMALL/MIDDLE/LARGE •...
  • Page 107: Ajustes De Visualización

    AJUSTES DE VISUALIZACIÓN AJUSTES DE AUDIO Calculando el valor para [DISTANCE] y [GAIN] de [DTA SETTINGS] Si especifica la distancia desde el centro de la posición de escucha seleccionada hacia cada altavoz, el tiempo de retraso se calculará y ajustará automáticamente. Establezca el centro de la posición de escucha seleccionada como el punto de referencia.
  • Page 108: Referencias

    : Seleccione un color primario. Para: – Últimas actualizaciones de firmware y lista de los últimos elementos compatibles 3 00 : Seleccione el nivel. NIGHT COLOR – Aplicación original JVC Repita los pasos para todos los colores primarios. – Cualquier otra información más reciente [USER] [PRESET] •...
  • Page 109 • No se puede navegar a través de archivos de video en el menú “Videos” en • Archivos de audio que pueden reproducirse: • El orden de canciones mostrado en el menú de selección de esta unidad puede diferir del que se encuentra en el KD-R985BTS/KD-R885BTS/KD-RD98BTS/KD-RD88BT Para discos: : MP3 (.mp3), iPod/iPhone.
  • Page 110 Tiempo de reproducción (Fecha/Reloj) Título de la pista (Artista) con sincronización de música* (vuelta al comienzo) * Para KD-R985BTS KD-RD98BTS : Los colores de iluminación de los botones e indicadores cambian y se sincronizan con la música. (Para archivos MP3/WMA/AAC/WAV/FLAC)
  • Page 111: Localización Y Solución De Problemas

    ( 29) omiten las pistas. No se puede reproducir en • Asegúrese de que JVC MUSIC PLAY APP esté instalado en el dispositivo El mensaje “READING” sigue • No utilice demasiados niveles de jerarquías y carpetas. [AUTO MODE] Android.
  • Page 112 LOCALIZACIÓN Y SOLUCIÓN DE PROBLEMAS Síntoma Solución Síntoma Solución El mensaje “NO DEVICE” o • Desactive las opciones del desarrollador en el dispositivo Android. “CH LOCKED LOCK CODE?” El canal seleccionado está bloqueado. Para desbloquearlo, ingrese el ( 13) “READING” sigue destellando. •...
  • Page 113: Instalación/Conexión

    Instale la unidad en su automóvil. Llame al (solo EE.UU.) Consulte Instalación de la unidad (montaje en el tablero). ( 34) Llame al: 1-800-252-5722 ( o ) visite: <http://www.jvc.com> Conecte el terminal de la batería del automóvil. Pulse para encender la unidad.
  • Page 114 INSTALACIÓN/CONEXIÓN Instalación de la unidad (montaje en el tablero) Lista de piezas para la instalación Placa frontal Placa embellecedora Prepare el cableado necesario. ( 35, 36) Manguito de montaje Mazo de conductores Gancho en el lado superior Antes del montaje, Salpicadero del oriente la placa automóvil...
  • Page 115: Conexión Recomendada

    INSTALACIÓN/CONEXIÓN Conexión del cableado (para KD-R985BTS/KD-R885BTS/KD-RD98BTS Cable de señal (no suministrado) Amplificador de IMPORTANTE JVC * Se recomienda instalar la unidad con un mazo de cables Terminales de disponible en el mercado que sea adecuado para su salida ( automóvil y, para fines de seguridad, deje esta tarea en...
  • Page 116: Conexión Del Cableado

    Cable de señal (no suministrado) IMPORTANTE Amplificador de Se recomienda instalar la unidad con un mazo de cables disponible en el mercado que JVC * Terminales de sea adecuado para su automóvil y, para fines de seguridad, deje esta tarea en manos de salida profesionales.
  • Page 117: Especificaciones

    ESPECIFICACIONES FM Gama de frecuencias 87,9 MHz — 107,9 MHz (pasos de 200 kHz) Estándar USB USB 1.1, USB 2.0 (Alta velocidad) 87,5 MHz — 108,0 MHz (pasos de 50 kHz) Dispositivos compatibles Clase de almacenamiento masivo Sensibilidad útil (Relación señal/ruido = 26 dB) 8,2 dBf (0,71 μV/75 Ω) Sistema de archivos FAT12/16/32 Sensibilidad de silenciamiento 17,2 dBf (2,0 μV/75 Ω)
  • Page 118 ESPECIFICACIONES Potencia de salida máxima 50 W × 4 ó 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω) Potencia en todo el ancho de banda 22 W × 4 (a menos del 1 % THD) Impedancia del altavoz 4 Ω — 8 Ω Nivel de salida de preamplificador/carga 4 000 mV/10 kΩ de carga (CD/USB) Impedancia de salida de preamplificador ≤ 600 Ω...
