REPLACEMENT PARTS

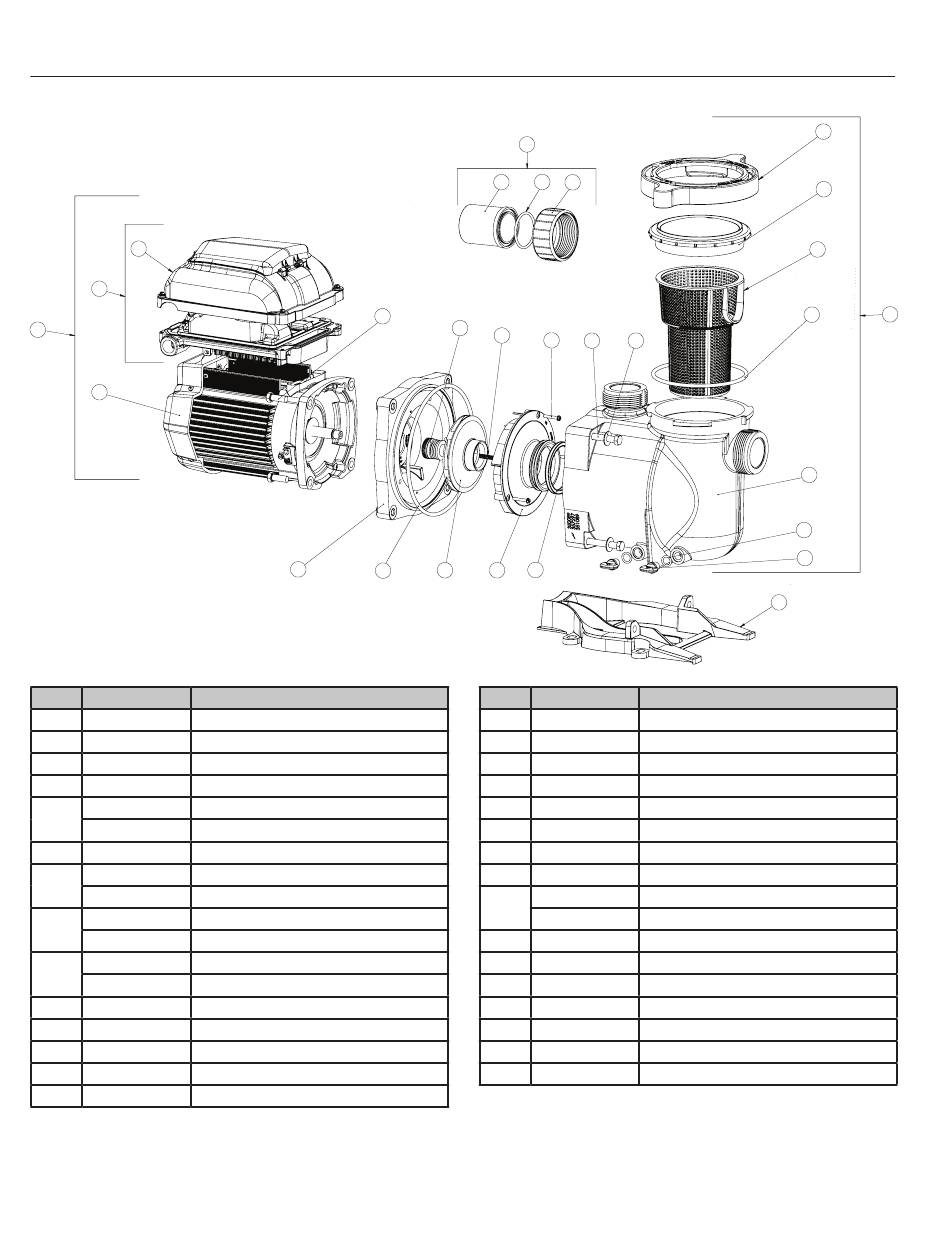

Illustrated Parts List

1
2
4
3
Item #
Part #
Description
1
353124
Drive Cover
2
353128
Drive/Cover Kit
3
353135S
Motor
4
353133S
Motor/Drive Assembly
355612
Sealplate (Mfg. before 6/17/19)
5
356072
Sealplate (Mfg. after 6/17/19)
6
355619
Sealplate Gasket
355074
Impeller (Mfg. before 6/17/19)
7
C105-238PDCA Impeller (Mfg. after 6/17/19)
355618
Diffuser (Mfg. before 6/17/19)
8
355949
Diffuser (Mfg. after 6/17/19)
355030
Diffuser Seal (Mfg. before 6/17/19)
9
355331
Diffuser Seal (Mfg. after 6/17/19)
10
351094
Base
11
357161
Drain Plug
12
192115
O-ring, Drain Plug
13
351089
Volute
14
357255
O-ring, Lid
SUPERMAX
VS Variable Speed Pump Installation and User' s Guide
®
24
23
5
6
7
28
26
27
25
22
21
20
19
8
9
Item #
Part #
Description
15
355667
Strainer Basket
16
350091
Lid
17
351090
Clamp, Lid
18
353110
Volute Assembly (includes items 11-17)
19
072184
Washer, 3/8" SS (Qty. 8)
20
355621
Screw, Hex, 3/8-16 x 2-1/4 (Qty. 4)
21
355334
Screw, Hex Washer, #8-32 (Qty. 3)
22
355389
Locking Screw, Impeller
354545S
Mechanical Seal (Mfg. before 6/17/19)
23
17351-0101S
Mechanical Seal (Mfg. after 6/17/19)
24
354290
Screw, Hex, 3/8-16 (Qty. 4)
25
270141
Union Nut (Qty. 2)
26
350093
Union Adapter (Qty. 2)
27
6020018
O-ring, Union Adapter (Qty. 2)
28
351157
Union Kit (includes items 25-27) (Qty. 2)
*
353129Z
25 ft. Digital Input Kit
*
357924Z
Fan Guard Kit, TEFC/Super-Duty
(*) Not Shown
