RIVING KNIFE POSITION AND ALIGNMENT

LOWERING THE RIVING KNIFE
Remove throat plate.
1. With the blade assembly to the highest possible position, carefully reach alongside the blade and raise the riving
knife locking lever up to unlock the riving knife.
2. Gently move the riving knife to the right to release it from the lock pins in the riving knife assembly.
3. Slide the riving knife down and backward until you feel the lock pins engage the riving knife in the "Non-Thru
Cut" position. When properly aligned in this position, the "Non-Thru Cut" line on the riving knife will be parallel to
and level with the table. See Figure 59 on page 33.
4. Return the riving knife lock lever to the lock position.
5. Make sure the riving knife is securely installed and properly aligned with the blade.
To raise riving knife to "Thru-Cut" position repeat steps 1-5 and on step 3 raise riving knife up and forward.
Reinstall throat plate.
LOCK

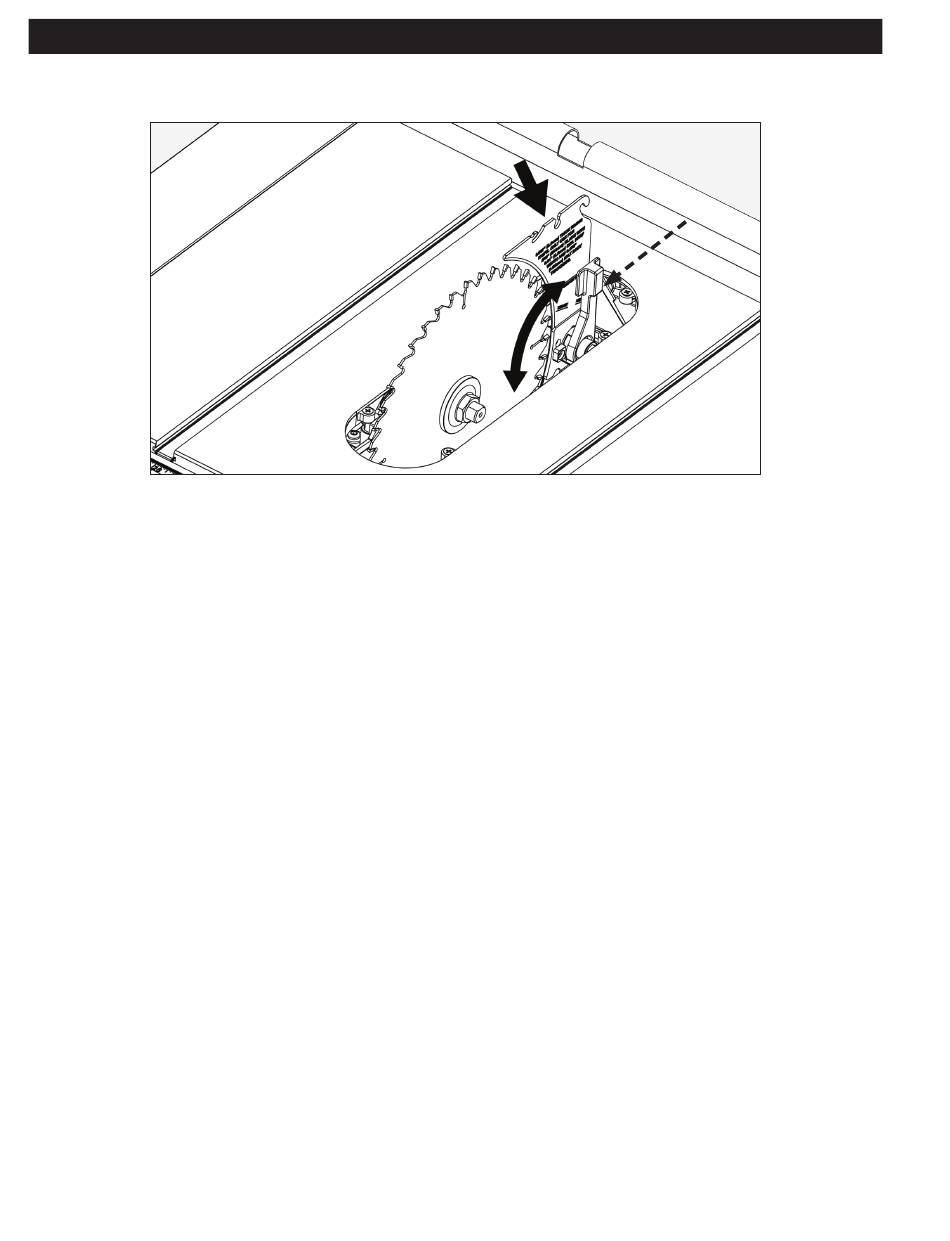

FIGURE 58
42
UNLOCK
