POWR
INTERMEDIATE HOUSING
Bearing housing installation
1. Install:
Bearing housing
Shim
Installation steps:
Install the bearing housing.

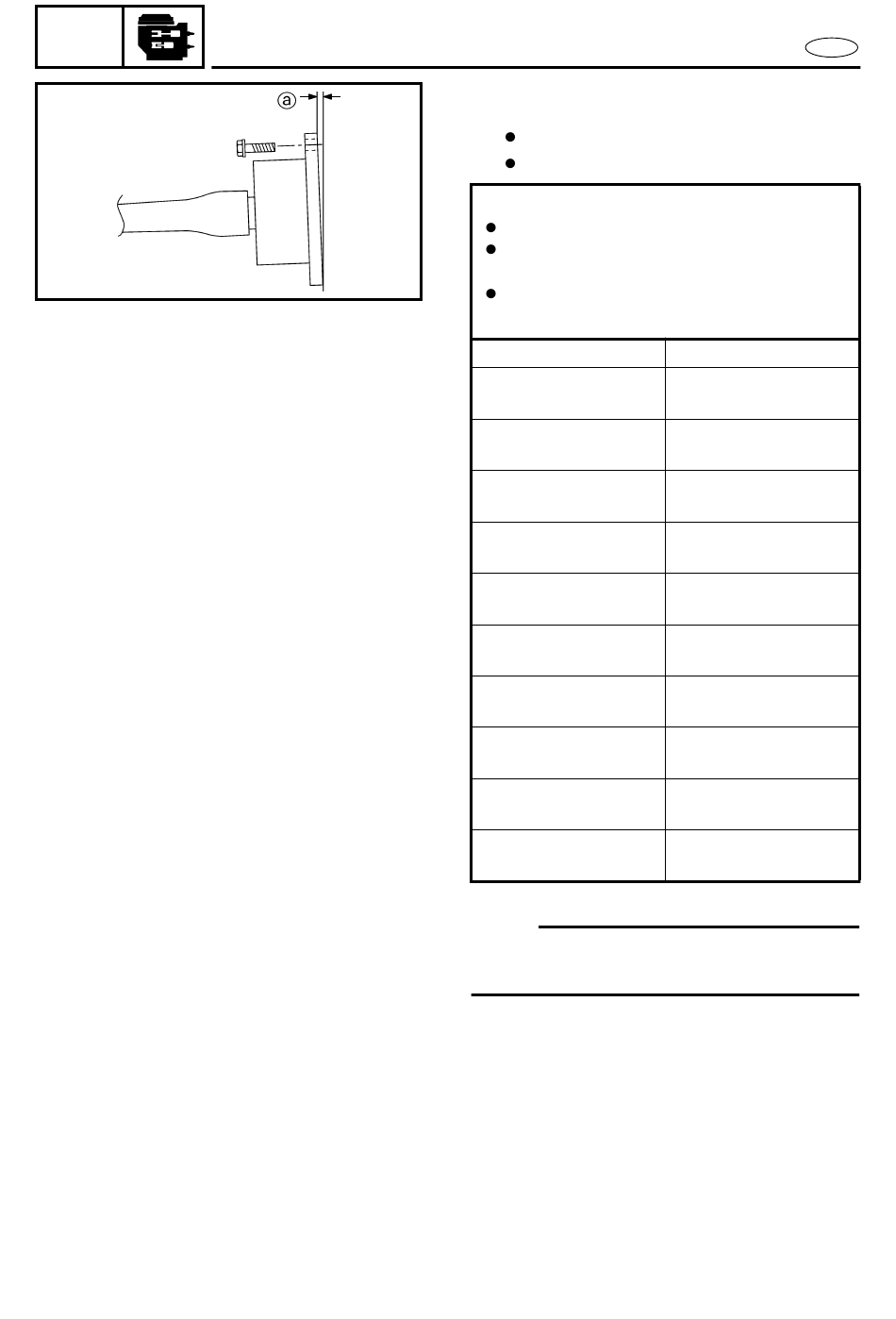

Measure the clearance a at each bolt
hole.
Install the suitable shim from the table
below.
Clearance
0 ~ 0.5 mm
(0 ~ 0.020 in)
0.5 ~ 1.0 mm
(0.020 ~ 0.039 in)
1.0 ~ 1.5 mm
(0.039 ~ 0.059 in)
1.5 ~ 2.0 mm
(0.059 ~ 0.079 in)
2.0 ~ 2.5 mm
(0.079 ~ 0.098 in)
2.5 ~ 3.0 mm
(0.098 ~ 0.118 in)
3.0 ~ 3.5 mm
(0.118 ~ 0.138 in)
3.5 ~ 4.0 mm
(0.138 ~ 0.157 in)
4.0 ~ 4.5 mm
(0.157 ~ 0.177 in)
4.5 ~ 5.0 mm
(0.177 ~ 0.197 in)
NOTE:
Install the shim(s) to the original position if
the bearing housing is not replaced.
5-44
E
Shim thickness
No need
0.5 mm
1.0 mm
1.5 mm
2.0 mm
2.5 mm
3.0 mm
3.5 mm
4.0 mm
4.5 mm
