Sideguards
Single Post Height-Adjustable Armrests
ATTENTION!
Neither the sideguards nor the armrests are to be used for
lifting or carrying the wheelchair.
1. Fitting
a. Push the outer armrest rails down into the receiver which is
mounted on the wheelchair frame.
b. The armrest will automatically lock into place.
2. Height Adjustment
a. Turn the release lever for height adjustment (2) to the second
stop point.
b. Push the armpad up or down to reach the desired height.
c. Set the lever back to the interlocked position against the
armrest rails.
d. Push the armpad (4) until the rails click into place securely.
3. Remove The Armrest
a. Operate the lever 3 and lift the whole arm.
4. Insert Armrest
a. Put the armrest back in the receiver, until the arm clicks into
place.
Mounting Components For The Armrest Receiver
Adjusting the armrest receiver
To tighten or loosen the fit of the outer armrest rails in the
receiver:
1. Loosen the four set screws for the receiver (D) on the sides of
the receiver.
2. Leave the armrest in the receiver (E) and push the receiver
together, until the desired adjustment is achieved.
3. Tighten the four screws (D). (144 in-lbs, 16.3 Nm)
Position Adjustment
1. Loosen the two clamp screws (10) until the clamp is loose.
2. Push the armrest receiver to the desired position.
3. Tighten.

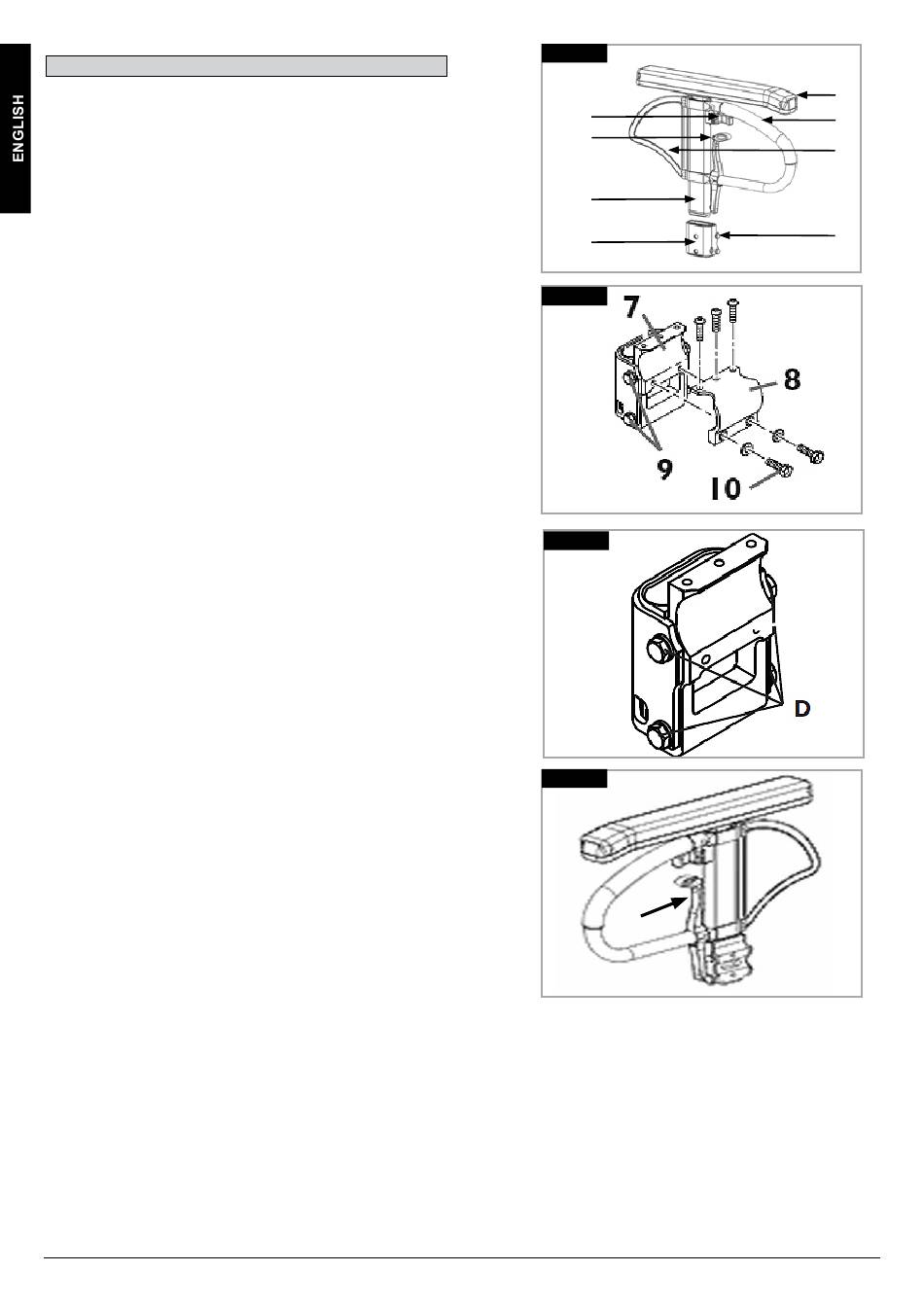

(Fig. 6.27 - 6.30).
1. Outer armrest rails
2. Height adjustment of the locking lever
3. Locking lever
4. Armrest Pad
5. Transfer bar
6. Sideguard
7. Receiver
8. Adjustment clamp
9. Parts to adjust the receiver
10. Clamp screws
22
Fig.6.27
2
3
1
7
Fig.6.28
Fig.6.29
Fig.6.30
E
4
5
6
9
1
Life R Rev.D
