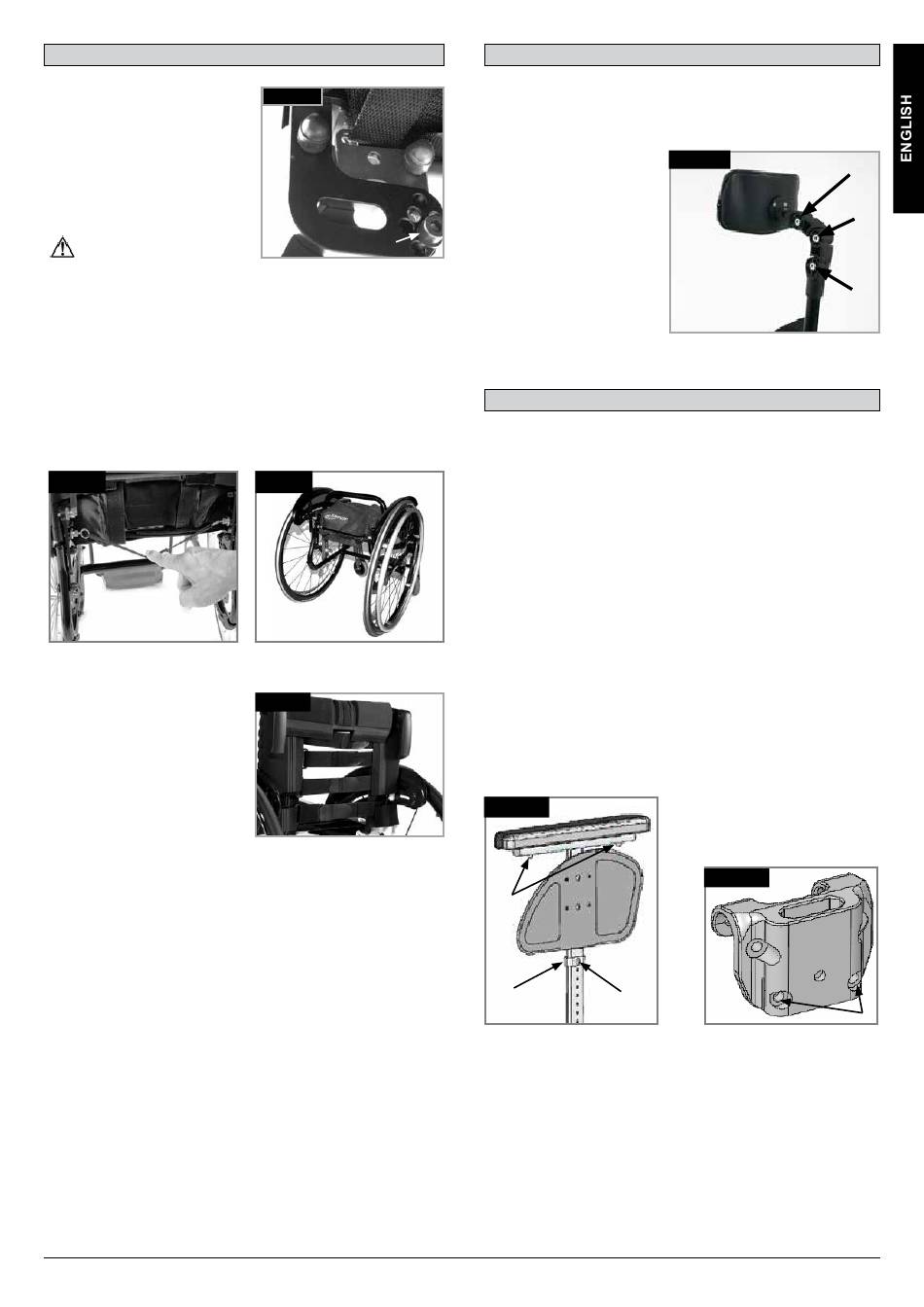

Angle Adjustable Backrest

Angle-adjustable fixed back
(Fig.6.20)
To adjust the backrest:
• Remove studs "A", on both
sides.
• Swivel the brackets to the
desired position.
• Refit the studs "A" and tighten.

CAUTION!

All screws must be refitted and tightened correctly to avoid
unexpected movement leading to loss of the angle setting.
Folding Backrest
Release the backrest by pulling the cord and at the same time,
pushing it forward to fold it down. To return the backrest to the
original position, pull it back as far as possible untill it locks into
position on both sides, (Fig.6.21 - 6.22).
Fig.6.21
Adjustable back sling
The adjustable back-sling can
be adjusted for tension by using
several straps. (Fig. 6.23).
Life R Rev.D
Fig. 6.20
A
Fig.6.22
Fig. 6.23

Headrests

Headrests
The headrest (Fig. 6.24) can be raised and moved horizontally
both forwards and backwards.
To do this, loosen the screw
(1,2 or 3).
Now you can adjust to the
desired position. Tighten
screws again (see the page
on torque).

Sideguards

Tool Height Adjustable Armrest
Installation: Slide the arm post into the receiver, located on the
wheelchair frame, until it stops
Height adjustment:
Slide the arm rest post out of the receiver.
Adjust the position of the hight adjustment bracket (1) by
removing the screw (2) and moving it to the desired posiion.
Re-fit the screw and tighten it.
Slide the arm rest post back into the receiver, (Fig.6.24).
Armpad Position:
The armpad position can be adjusted by relesing the screws
(3), then moving the arm pad to the desired position. Re-tighten
the screws, (Fig.6.25).
Adjusting Armrest Receiver
The tightness of the armrest receiver can be adjusted (tightened
/loosened) by means of the 2 screws (1) - (Fig.6.26).
Fig.6.25
3
1
2
Fig. 6.24
Fig.6.26
1
2
3
1
