C416-24-885 Issue E
1. Pneumatic air-supply
2. Shut-off valve
3. Filter
4. Regulator
5. Control-valve
6. PVPK valve
7. Electrical connections
1. Druckluftversorgung
2. Sperrventil
3. Filter
4. Regler
5. Steuerventil
6. PVPK-Ventil
7. Elecktrische Anschlüsse
1. Alimentation pneumatique
2. Vanne d'isolement
3. Filtre
4. Régulateur
5. Vanne de commande
6. Vanne PVPK
7. Connexions électriques
20

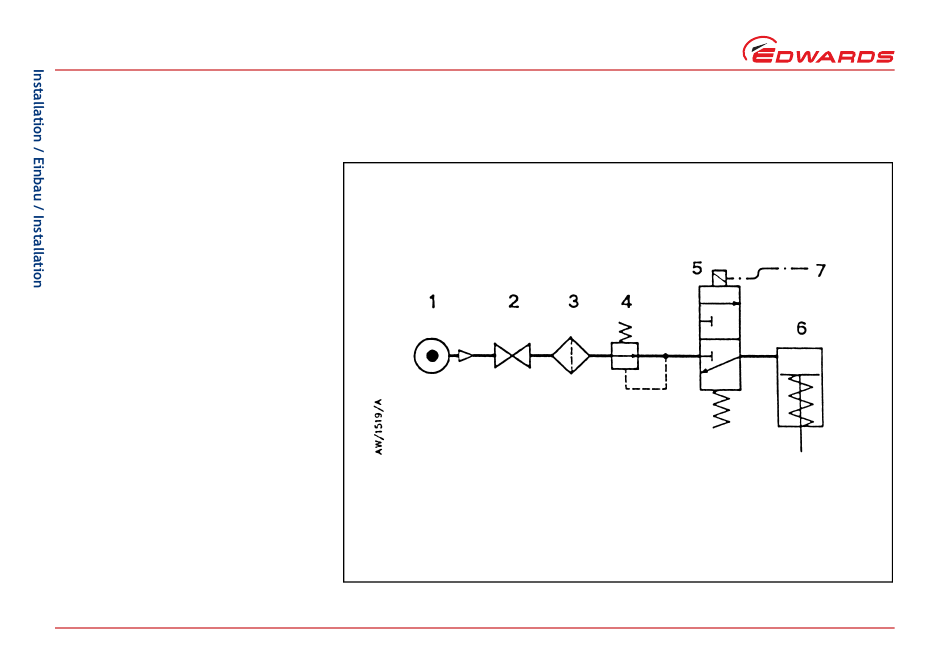

Figure 5 - Typical pneumatic circuit
Abbildung 5 – Typischer Pneumatikkreis
Figure 5 – Circuit pneumatique typique
© Edwards Limited 2009. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
